RS-15-3.3
7.12

RS-15-3.3

$7.12

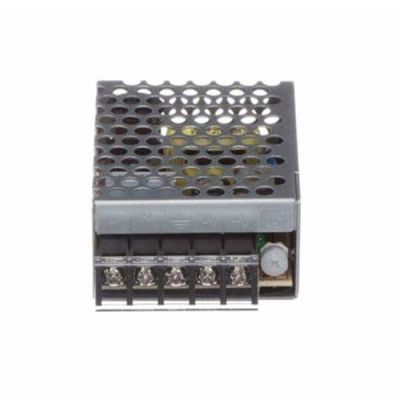

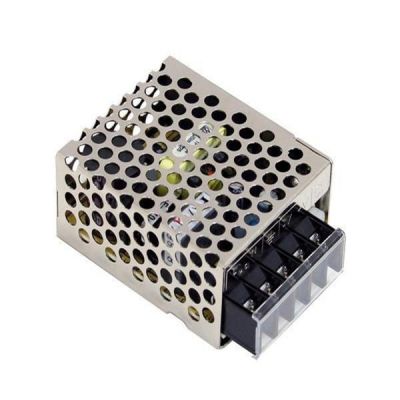

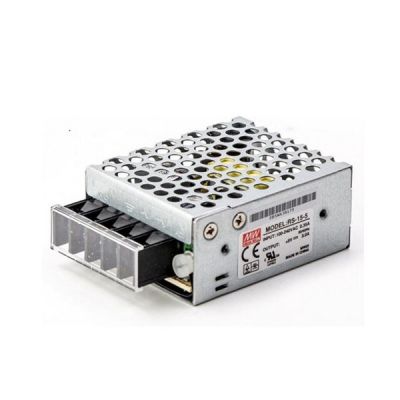

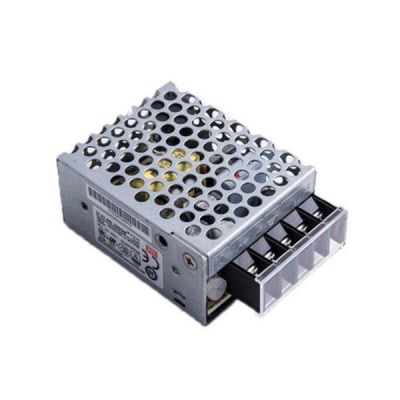

Meanwell 15W Single Output Switching Power Supply with 3.3V3A0~ 3A9.9W80mVp-p2.9-3.6V±3.0%±0.5%±2%

- +
Availability:In stock
SKU Meanwell RS-15-3.3
Brand Meanwell
Details

Meanwell RS-15-3.3 is 15W Single Mini Output Switching Power Supply with 3.3V3A0~ 3A9.9W80mVp-p2.9-3.6V. It is able to withstand 5G vibration and work at 70°C high ambient temperature under free air convection. By adopting 105 ℃ long life electrolytic capacitors and passing 100% full load burn-in test,  RS-15-3.3 could withstand 300 VAC surge input for 5 seconds. Additionally, RS-15-3.3 provides the complete protection modes such as Short circuit, Over load, Over voltage and Over temperature. Due to the high efficiency, long life and high reliability. Meanwell RS-15-3.3 is fit for use in harsh working conditions.

Meanwell RS-15-3.3 Specifications

Meanwell RS-15-3.3 Specifications

Model RS-15-3.3
Output DC VOLTAGE 3.3V
RATED CURRENT 3A
CURRENT RANGE 0~ 3A
RATED POWER 9.9W
RIPPLE & NOISE (max.)  80mVp-p
VOLTAGE ADJ. RANGE 2.9-3.6V
VOLTAGE TOLERANCE ±3.0%
LINE REGUL ATION ±0.5%
LOAD REGUL ATION ±2%
SETUP, RISE TIME 1000ms, 30ms/230VAC 1000ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.) 70ms/230VAC 12ms/115VAC at full load
Input VOLTAGE RANGE 85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 72%
AC CURRENT (Typ.) 0.35A/115VAC  0.25A/230VAC
INRUSH CURRENT (Typ.) COLD START   65A/ 230VAC
LEAKAGE CURRENT <2mA/ 240VAC
ENVIRONMENT WORKING TEMP. -20 ~ +70'C (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40~ +85C, 10~ 95% RH
TEMP. COEFFICIENT ±0.03%/C (O ~ 50'C)
VIBRATION 0 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along x, Y, Z axes
PROTECTION OVERLOAD Above 105% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed3.8~4.45V
OVER VOLTAGE 3.8-4.45V
Protection type : Shut off o/p voltage, clamping by zener diode
OVER TEMPERATURE Shut down o/p voltage, recovers automatically after temperature goes down
OTHERS MTBF 1608.8Khrs min. MIL-HDBK-217F (25)
DIMENSION 62.5*51*28mm (L*W*H)
PACKING 0.13Kg; 108pcs/15Kg/0.8CUFT

Meanwell RS-15-3.3 Features

l  3 years warranty

l  Universal AC input/Full range

l  Cooling by free air convection

l  LED indicator for power on

l  100% full load burn-in test

l  Withstand 5G vibration test

l  No load power consumption<0.5W

l  High operating temperature up to 70 ℃

l  High efficiency, long life and high reliability

l  Withstand 300VAC surge input for 5 second

l  All using 105 ℃ long life electrolytic capacitors

l  Protections: Short circuit/Over load/Over voltage/Over temperature

Meanwell RS-15-3.3 Features

Meanwell RS-15-3.3 Mechanical Diagram

Meanwell RS-15-3.3 Mechanical Diagram
