GST25A
8.32

GST25A

As low as $8.32

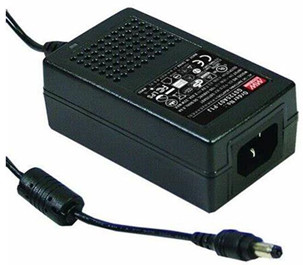

Meanwell 25W AC-DC Reliable Green Industrial Adaptor

- +
Availability:In stock
SKU Meanwell GST25A
Brand Meanwell
Details

Meanwell GST25A Series is a 25W AC-DC Green Industrial Adaptor. The product features single-output, desktop style and high reliability. It is a class I power unit (with FG), equipped with a standard IEC320-C14 AC inlet and adopts the input range from 85VAC to 264VAC. At the same time, the entire series supplies different models with output voltages ranging between 5VDC and 48VDC, so that it can satisfy the demands for various types of consumer electronic devices. The efficiency reaches high up to 89% and extremely low no-load power consumption below 0.075W. Moreover, GST25A is compliant with USA EISA 2007/DoE, Canada NRCan, Australia and New Zealand MEPS, Korea K-MEPS, EU ErP, and Code of Conduct (CoC) Version 5. Additionally, the supreme feature allows the adaptor to save energy when it is either under operating mode or standby mode. The entire series utilizes the 94V-0 flame retardant plastic case. It is also certified for the international safety regulations. Considering its good quality, high reliability, and long lifespan, Meanwell GST40A Series serves as a high-performance power supply solution for various applications.

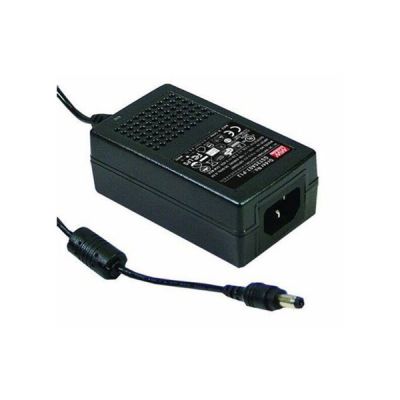

Meanwell GST25A Price and Datasheet 25W AC-DC Reliable Green Industrial Adaptor 3 pole AC inlet power unit Class I YCICT

Meanwell GST25A Series Encoding

GST Series Name
25 Rated Wattage
A IEC320-C14 AC Inlet
05 Output Voltage
P1J DC Plug Type Р1J: Рlug fоr ѕtаndаrd mоdеl, 2.1 ѱ Х5. 5ѱ Х1 1mm, C+ tuning fork type
DC Plug Type Other options available by customer requested

Meanwell GST25A Series Model Specifications

ORDER NO. GST25A05-P1J GST25A07-P1J GST25A09-P1J GST25A12-P1J GST25A15-P1J GST25A18-P1J GST25A24-P1J GST25A28-P1J GST25A48-P1J
OUTPUT SAFETY MODEL NO. GST25A05 GST25A07 GST25A09 GST25A12 GST25A15 GST25A18 GST25A24 GST25A28 GST25A48
DC VOLTAGE 5V 7.5V 9V 12V 15V 18V 24V 28V 48V
RATED CURRENT 4.0A 2.93A 2.55A 2.08A 1.66A 1.38A 1.04A 0.89A 0.52A
CURRENT RANGE 0-4.0A 0-2.93A 0-2.55A 0-2.08A 0-1.66A 0-1.38A 0-1.04A 0-0.89A 0-0.52A
RATED POWER 20W 22W 23W 25W 25W 25W 25W 25W 25W
RIPPLE & NOISE (max.) 80mVp-p 80mVp-p 80mVp-p 80mVp-p 100mVp-p 100mVp-p 150mVp-p 150mVp-p 150mVp-p
VOLTAGE TOLERANCE ±5.0% ±5.0% ±5.0% ±3.0% ±3.0% ±3.0% ±2.0% ±2.0% ±2.0%
LINE REGULATION ±1.0% ±1.0% ±1.0% ±1.0% ±1.0% ±1.0% ±1.0% ±1.0% ±1.0%
LOAD REGULATION ±5.0% ±5.0% ±5.0% ±3.0% ±3.0% ±3.0% ±2.0% ±2.0% ±2.0%
SETUP, RISE, HOLD UP TIME 1000ms, 30ms, 50ms/230VAC 1500ms, 30ms, 15ms/115VAC at full load
INPUT VOLTAGE RANGE 85 ~ 264VAC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 81.50% 84.50% 85.00% 86.50% 87.00% 87.00% 88.00% 88.00% 89.00%
AC CURRENT 0.6A / 115VAC 0.35A / 230VA
INRUSH CURRENT (max.) Cold start 35A / 115VAC 65A / 230VAC
LEAKAGE CURRENT(max.) 0.75mA / 240VAC
PROTECTION OVERLOAD 110 ~ 150% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 110 ~ 140% rated output voltage
Protection type : Clamp by zener diode
ENVIRONMENT WORKING TEMP. -30 ~ +70(Refer to "Derating Curve")
WORKING HUMIDITY 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.03% /(0 ~ 50)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC SAFETY STANDARDS UL62368-1, CSA C22.2 No.62368-1, TUV BS EN/EN62368-1, BSMI CNS 14336-1 , CCC GB4943.1, PSE J62368-1,
AS/NZS 60950.1BIS IS13252, KC K60950-1, EAC TP TC 004 approved; SIRIM MS IEC62368-1 (optional) approved
WITHSTAND VOLTAGE I/P-O/P:4242VDC, I/P-FG:2121VDC
ISOLATION RESISTANCE I/P-O/P, I/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Parameter Standard Test Level
Conducted emission BS EN/EN55032(CISPR32),FCC PART 15 / CISPR22 CAN ICES-3(B)/NMB-3(B),CNS13438,GB17625.1 EAC TP TC 020,MSIP KN32 Class B
Radiated emission BS EN/EN55032(CISPR32),FCC PART 15 / CISPR22 CAN ICES-3(B)/NMB-3(B),CNS13438,GB17625.1 EAC TP TC 020,MSIP KN32 Class B
Harmonic current BS EN/EN61000-3-2,GB9254 Class A
Voltage flicker BS EN/EN61000-3-3 -----
EMC IMMUNITY BS EN/EN55035
Parameter Standard Test Level
ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact
RF field susceptibility BS EN/EN61000-4-3 Level 2, 3V/m
EFT bursts BS EN/EN61000-4-4 Level 2, 1KV
Surge susceptibility BS EN/EN61000-4-6 Level 3, 1KV/L-N 2KV/L,N-PE
Conducted susceptibility BS EN/EN61000-4-5 Level 2, 3V
Magnetic field immunity BS EN/EN61000-4-8 Level 2, 3A/m
Voltage dips , interruption BS EN/EN61000-4-11 95% dip 0.5 periods, 30% dip 25 periods,
95% interruptions 250 periods
Others MTBF 3879.7K hrs min. Telcordia SR-332 (Bellcore) ; 674.6K hrs min. MIL-HDBK-217F (25)
DIMENSION 93*54*36mm (L*W*H)
PACKING 209g; 60pcs/13.5Kg/1.02CUFT

Meanwell GST25A Series Features

l  Global certificates

l  Universal AC input/Full range

l  3 pole AC inlet lEC320-C14, Class I power unit

l  No load power consumption< 0.075W

l  Energy efficiency Level VI

l  Comply with EISA 2007/DoE, NRCan, Korea K-MEPS, AU/NZ MEPS,EU ErP and CoC Version 5

l  Protections: Short circuit/Overload/Over voltage

l  Fully enclosed plastic case

l  Pass LPS

l  -30℃~+70℃ wide range working temperature

l  LED indicator for power on

l  Various DC plug quick adapter accessory available

l  3 years warranty

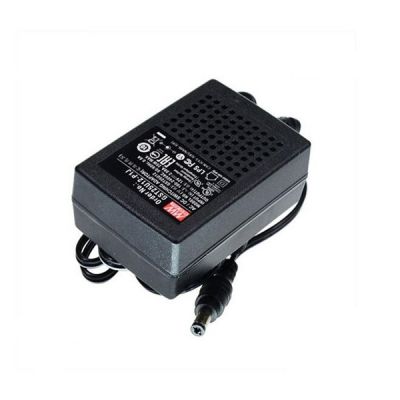

 Meanwell GST25A Price and Specs 25W AC-DC Reliable Green Industrial Adaptor 3 pole AC inlet power unit Class I YCICT

Meanwell GST25A Series Applications

l  Consumer electronic devices

l  Telecommunication devices

l  Office facilities

l  Industrial equipment

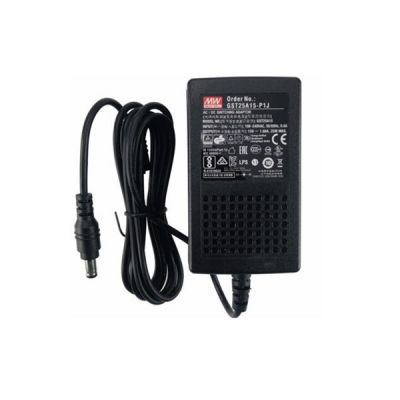

Meanwell GST25A Price and Specs 25W AC-DC Reliable Green Industrial Adaptor 3 pole AC inlet power unit LPS Pass YCICT

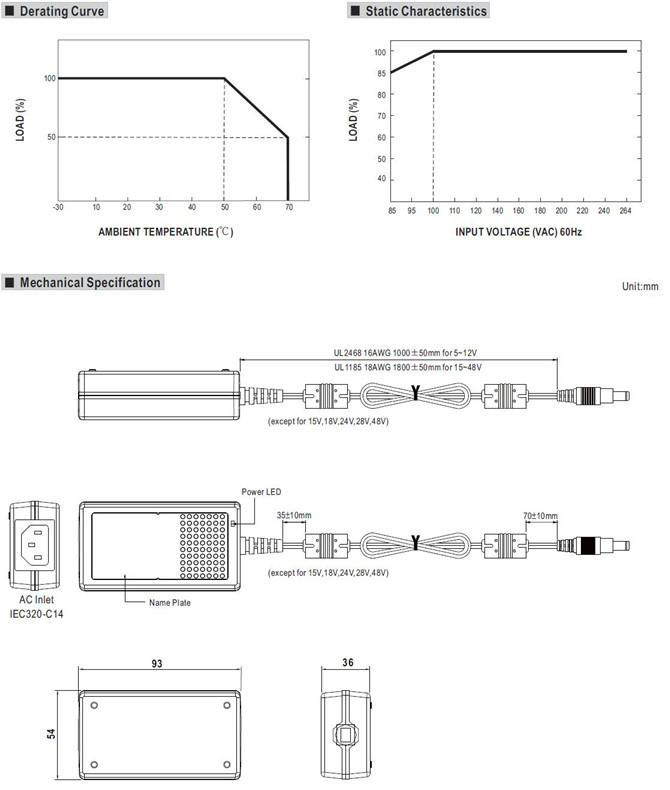

Meanwell GST25A Series Mechanical Diagram

Meanwell GST25A Price and Specs 25W AC-DC Reliable Green Industrial Adaptor 3 pole AC inlet power unit LPS YCICT
