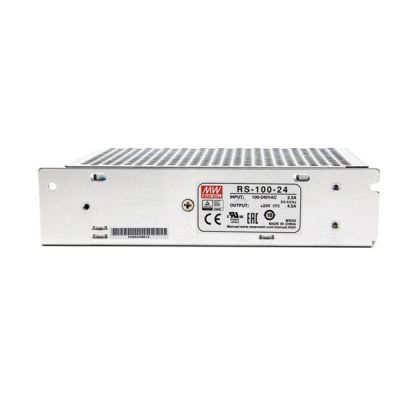

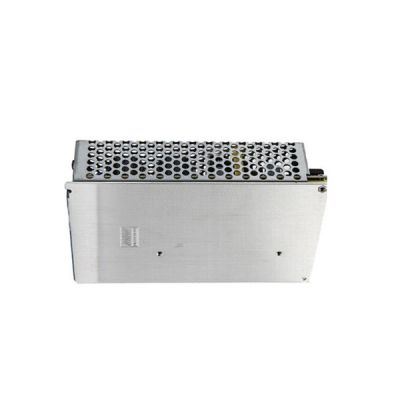

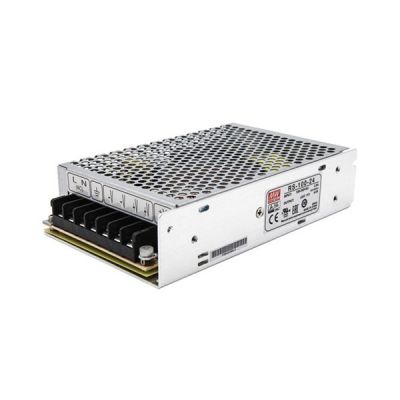

Meanwell RS-100 Series is 100W Single Miniature size, non-PFC Output Switching Power Supply. The series can withstand 5G vibration and work at 70°C high ambient temperature. By using 105 ℃ long life electrolytic capacitors and passing 100% full load burn-in test, RS-100 Series is able to withstand 300 VAC surge input for 5 seconds. 2 outputs are isolated for RID series. Apart from them, RS-100 series provides the complete protection types such as Short circuit, Over load and Over voltage. Due to its high efficiency, long life and high reliability. Meanwell RS-100 series is ideal for use in harsh working environment.
Meanwell RS-100 Series Model Specifications
| Model | RS-100-3.3 | RS-100-5 | RS-100-12 | RS-100-15 | RS-100-24 | RS-100-48 | |
| Output | DC VOLTAGE | 3.3V | 5V | 12V | 15V | 24V | 48V |
| RATED CURRENT | 20A | 16A | 8.5A | 7A | 4.5A | 2.3A | |
| CURRENT RANGE | 0-20A | 0-16A | 0-8.5A | 0-7A | 0-4.5A | 0-2.3A | |
| RATED POWER | 66W | 80W | 102W | 105W | 108W | 110.4W | |
| RIPPLE & NOISE (max.) | 80mVp-p | 80mVp-p | 120mVp-p | 120mVp-p | 120mVp-p | 200mVp-p | |
| VOLTAGE ADJ. RANGE | 3.2-3.5V | 4.75-5.5V | 11.4-13.2V | 14.25-16.5V | 22.8-26.4V | 45.6-52.8V | |
| VOLTAGE TOLERANCE | ±3.0% | ±2% | ±1% | ±1% | ±1% | ±1% | |
| LINE REGUL ATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| LOAD REGUL ATION | ±2% | ±1.0% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| SETUP, RISE TIME | 500ms, 20ms/230VAC 1200ms, 30ms/115VAC at full load | ||||||
| HOLD UP TIME (Typ.) | 95ms/230VAC 17ms/115VAC at full load | ||||||
| Input | VOLTAGE RANGE | 88 ~ 264VAC 125 ~ 373VDC (Withstand 300VAC surge for 5sec. Without damage) | |||||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||||
| EFFICIENCY (Typ.) | 74.00% | 77.00% | 81.00% | 82.00% | 84.00% | 84.00% | |
| AC CURRENT (Typ.) | 2.5A/115VAC 1.5A/230VAC | ||||||
| INRUSH CURRENT (Typ.) | COLD START 40A/230VAC | ||||||
| LEAKAGE CURRENT | <2mA / 240VAC | ||||||
| ENVIRONMENT | WORKING TEMP. | -25 ~ +70℃ (Refer to "Derating Curve") | |||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH | ||||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | ||||||
| VIBRATION | 10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||||||
| PROTECTION | OVERLOAD | 110 ~ 150% rated output power | |||||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||||||
| OVER VOLTAGE | 3.8-4.45V | 5.75-6.75V | 13.8-16.2 | 17.25-20.25V | 27.6-32.4V | 55.2-64.8V | |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||||||
| SAFETY &EMC | SAFETY STANDARDS | UL62368-1, TUV BS EN/EN62368-1, AS/NZS 62368.1, EAC TP TC 004 approved | |||||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | ||||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | ||||||
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020 | ||||||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy industry level, criteria A, EAC TP TC 020 | ||||||
| Others | MTBF | 260.8Khrs min. MIL-HDBK-217F (25℃) | |||||
| DIMENSION | 159*97*38mm (L*W*H) | ||||||
| PACKING | 0.6Kg; 24pcs/15.4Kg/0.83CUFT | ||||||
Meanwell RS-100 Series Features
l 3 years warranty
l LED indicator for power on
l 100% full load burn-in test
l Withstand 5G vibration test
l Universal AC input/ Full range
l Cooling by free air convection
l High operating temperature up to 70℃
l High efficiency, long life and high reliability
l Withstand 300V AC surge input for 5 second
l All using 105 ℃ long life electrolytic capacitors
l Protections: Short circuit/Overload/Over voltage

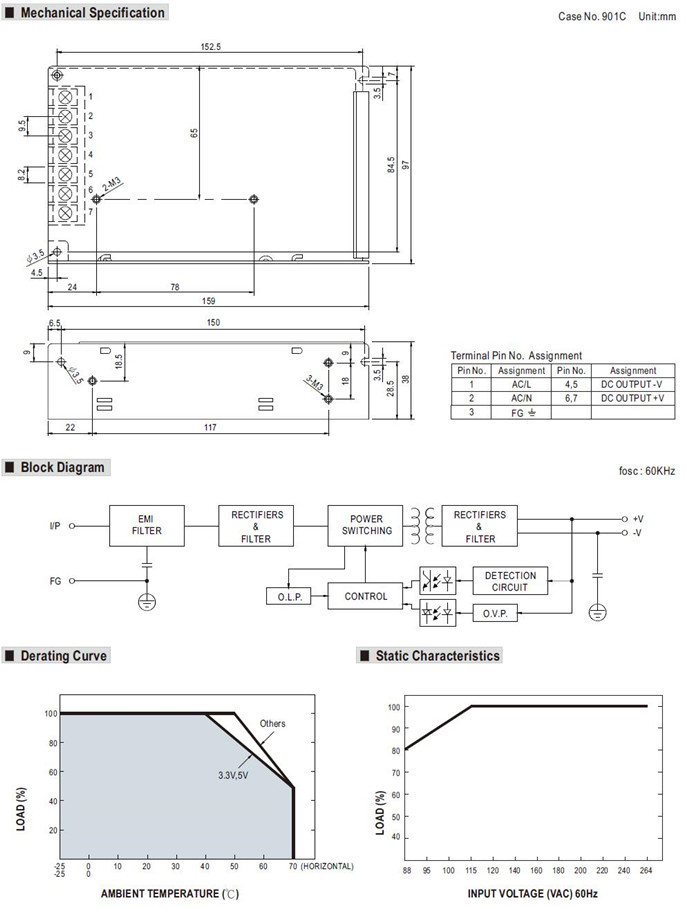

Meanwell RS-100 Series Mechanical Diagram
