RS-100-3.3
12.58

RS-100-3.3

$12.58

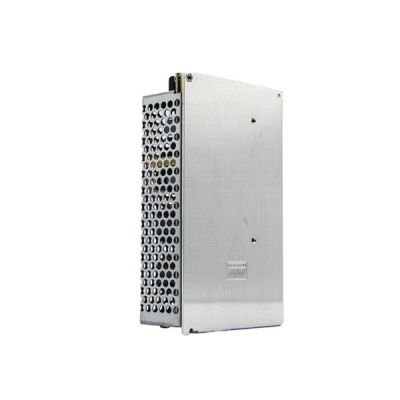

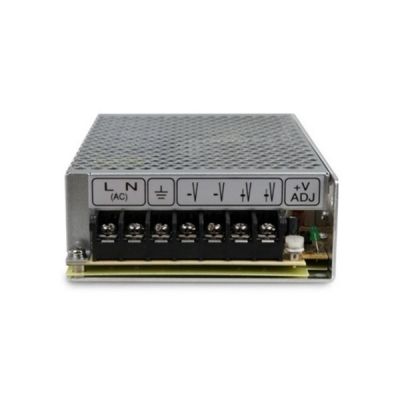

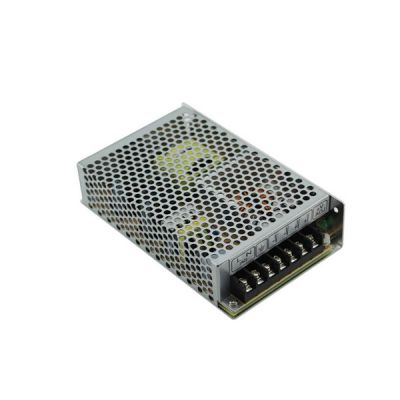

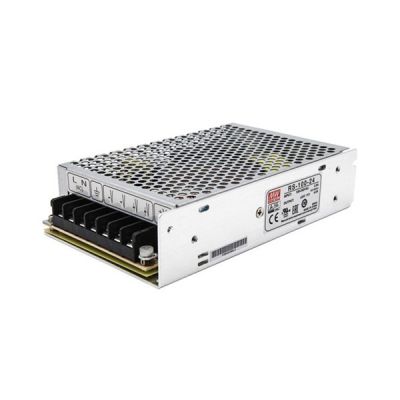

Meanwell 100W Single Output Switching Power Supply with 3.3V20A0-20A66W80mVp-p3.2-3.5V±3.0%±0.5%±2%

- +
Availability:In stock
SKU Meanwell RS-100-3.3
Brand Meanwell
Details

Meanwell RS-100-3.3 is 100W Single Miniature size, non-PFC Output Switching Power Supply with 3.3V20A0-20A66W80mVp-p3.2-3.5V. The model could withstand 5G vibration and operate at 70°C high ambient temperature. With using 105 ℃ long life electrolytic capacitors and passing 100% full load burn-in test, RS-100-3.3 is able to withstand 300 VAC surge input for 5 seconds. 2 outputs are isolated for RID series. In addition, RS-100-3.3 provides the complete protection types such as Short circuit, Over load and Over voltage. Thanks to its high efficiency, long life and high reliability. Meanwell RS-100-3.3 is ideal for use in harsh working environment.

Meanwell RS-100-3.3 Specifications

Meanwell RS-100-3.3 Specifications

Model RS-100-3.3
Output DC VOLTAGE 3.3V
RATED CURRENT 20A
CURRENT RANGE 0-20A
RATED POWER 66W
RIPPLE & NOISE (max.)  80mVp-p
VOLTAGE ADJ. RANGE 3.2-3.5V
VOLTAGE TOLERANCE ±3.0%
LINE REGUL ATION ±0.5%
LOAD REGUL ATION ±2%
SETUP, RISE TIME 500ms, 20ms/230VAC 1200ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.) 95ms/230VAC 17ms/115VAC at full load
Input VOLTAGE RANGE 88 ~ 264VAC 125 ~ 373VDC (Withstand 300VAC surge for 5sec. Without damage)
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 74.00%
AC CURRENT (Typ.) 2.5A/115VAC 1.5A/230VAC
INRUSH CURRENT (Typ.) COLD START 40A/230VAC
LEAKAGE CURRENT <2mA / 240VAC
ENVIRONMENT WORKING TEMP. -25 ~ +70 (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes
PROTECTION OVERLOAD 110 ~ 150% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 3.8-4.45V
Protection type : Hiccup mode, recovers automatically after fault condition is removed
SAFETY &EMC SAFETY STANDARDS UL62368-1, TUV BS EN/EN62368-1, AS/NZS 62368.1, EAC TP TC 004 approved
WITHSTAND VOLTAGE I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy industry level, criteria A, EAC TP TC 020
Others MTBF 260.8Khrs min. MIL-HDBK-217F (25)
DIMENSION 159*97*38mm (L*W*H)
PACKING 0.6Kg; 24pcs/15.4Kg/0.83CUFT

Meanwell RS-100-3.3 Features

l  Universal AC input/ Full range

l  Protections: Short circuit / Overload 1 Over voltage

l  Cooling by free air convection

l  LED indicator for power on

l  1 00% full load burn-in test

l  All using 105C long life electrolytic capacitors

l  Withstand 300V AC surge input for 5 second

l  High operating temperature up to 70C

l  Withstand 5G vibration test

l  High efficiency, long life and high reliability

l  3 years warranty

Meanwell RS-100-3.3 Features

Meanwell RS-100-3.3 Mechanical Diagram

Meanwell RS-100-3.3 Mechanical Diagram
