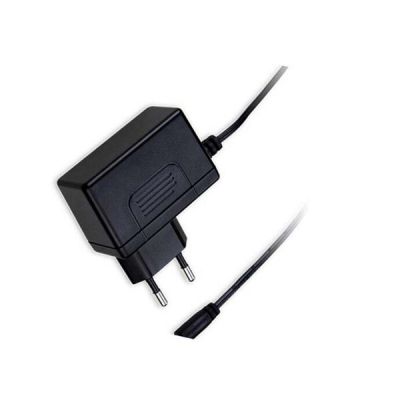

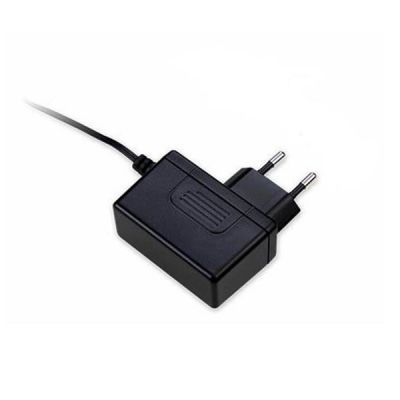

Meanwell GSV60 Series is 60W external wall-mounted LED power supply with PFC function. The design is based on the “plug and play" concept for adaptors. The AC input side exploits the 2-Pole (Class II, no FG) standard plug, and the output side is equipped with the highly accepted DC connector (2. 1x5.5x11mm) in the market. At the same time, the entire series accepts 180~264V AC input, and provides constant voltage output with 12V/24Vor 48V. In addition, the product complies with the lighting requirements of EMI BS EN/EN55015 and the harmonic current demand according to BS EN/EN6 1000-3-2 Class C. Apart from them, No load power consumption is less than0.5W, permitting GSV60 conform to the ErP regulation required by European Union for lighting systems as well.
Meanwell GSV60 Series Encoding

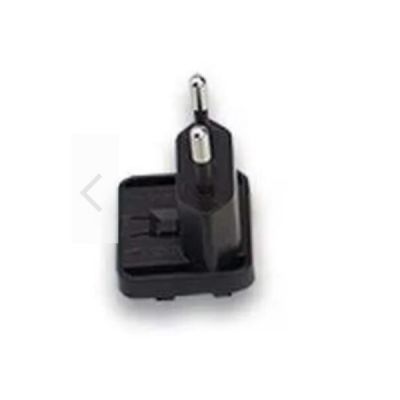

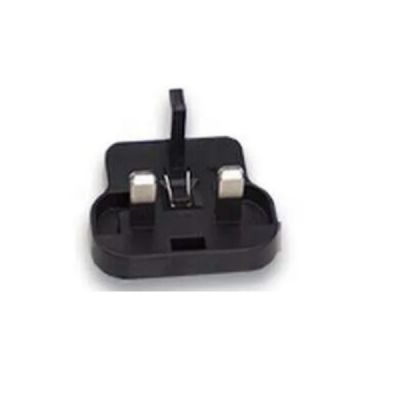

| GSV | Series Name | |
| 60 | Output Wattage | |
| E | AC Inlet | Standard Model: E: EU 2 Pin Plug |
| Optional Model: I: Interchangeable type. ( Excluding Plug) | ||
| 12 | Output Voltage with 12/24/ or 48V) | |
| P1J | DC Plug Type | Р1J: Рlug fоr ѕtаndаrd mоdеl, 2.1 ѱ Х5.5ѱ Х 11mm, C+ tuning fork type |
| Other options available by customer requested (see Page 5~6) | ||
Meanwell GSV60 Series Model Specifications
| Model | GSV60 E 12-P1J | GSV60 E 24-P1J | GSV60 E 48-P1J | |
| OUTPUT | DC VOLTAGE | 12V | 24V | 48V |
| OPEN CIRCUIT VOLTAGE | <15V | <28V | <57V | |
| RATED CURRENT | 4.16A | 2.5A | 1.25A | |
| RATED POWER | 50W | 60W | 60W | |
| RIPPLE & NOISE (max.) | 3Vp-p max. | 4.5Vp-p max. | 6.5Vp-p max. | |
| VOLTAGE TOLERANCE | ±1.5V | ±2.25V | ±4.5V | |
| LINE REGULATION | ±2.0% | ±2.0% | ±2.0% | |
| NO LOAD CONSUMPTION | 0.5W max. | |||
| SETUP UP TIME | 500ms/230VAC at full load | |||
| INPUT | VOLTAGE RANGE | 180 ~ 264VAC 255 ~ 373VDC | ||
| FREQUENCY RANGE | 47 ~ 63Hz | |||
| POWER FACTOR (Typ.) | PF>0.92/230VAC at full load (Please refer to "Power Factor Characteristic" curve) | |||
| TOTAL HARMONIC DISTORTION | <20%/230VAC @ full load | |||
| EFFICIENCY (Typ.) | 85% min. @ 230VAC | 86% min. @ 230VAC | 89% min. @ 230VAC | |
| AC CURRENT (Typ.) | 0.5A/230VAC | 0.5A/230VAC | ||
| INRUSH CURRENT(max.) | COLD START 20A(twidth=200μs measured at 50% Ipeak) at 230VAC | |||
| LEAKAGE CURRENT | <0.25mA max. @ 230VAC | |||
| PROTECTION | OVERLOAD | 105 ~ 160% rated output power | ||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||||
| SHORT CIRCUIT | Hiccup mode, recovers automatically after fault condition is removed | |||
| OVER VOLTAGE | 15.6-18V | 28-32.4V | 57.6-72V | |
| Protection type : Clamp by zener diode, output short | ||||
| ENVIRONMENT | WORKING TEMP | -20 ~ +40℃ (Refer to "Derating Curve") | ||
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |||
| STORAGE TEMP., HUMIDITY | -30 ~ +80℃, 10 ~ 95% RH | |||
| TEMP. COEFFICIENT | ±0.03%/℃ (-20 ~ 40℃) | |||
| VIBRATION | 10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes | |||
| SAFETY&EMC | SAFETY STANDARDS | LVD BS EN/EN61347-1, BS EN/EN61347-2-13 approved | ||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC | |||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |||
| EMC EMISSION | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (100% load) ; BS EN/EN61000-3-3 | |||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level, criteria A | |||
| Others | MTBF | 450K hrs min. MIL-HDBK-217F (25℃) | ||
| DIMENSION | E : 75.5*32*47.5 mm(L*W*H) ; I: 75.5*39.1*56.2 mm(L*W*H) | |||
| PACKING | E: 240g ; 60pcs / 15.5kg / CARTON ; I: 200g ; 60pcs / 13.5kg / CARTON | |||
| CONNECTOR | PLUG | See page 5~6 ; Other type available by customer requested | ||
| CABLE | See page 5~6 ; Other type available by customer requested | |||
Meanwell GSV60 Series Features
l AC 180~264V input
l ClassⅡ/2 power unit, no FG
l Built-in active PFC function with EN61347-1 regulation
l Constant voltage design
l Protections: Short circuit/Over load/Over voltage
l Cooling by free air convection
l No load power consumption<0.5W
Meanwell GSV60 Series Applications
l LED strip lighting
l Indoor LED lighting
l LED decorative lighting
l Commercial lighting
l Mirror lighting
l Table light
l Portable lighting

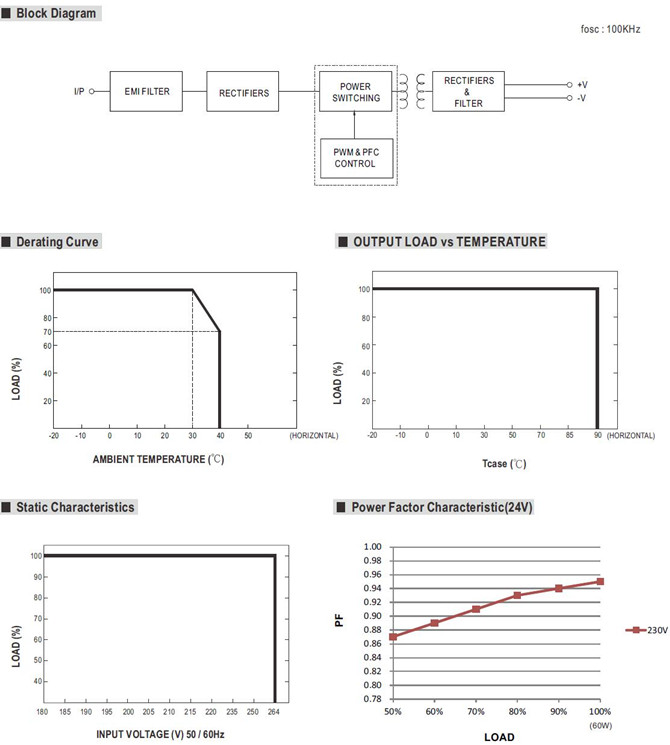

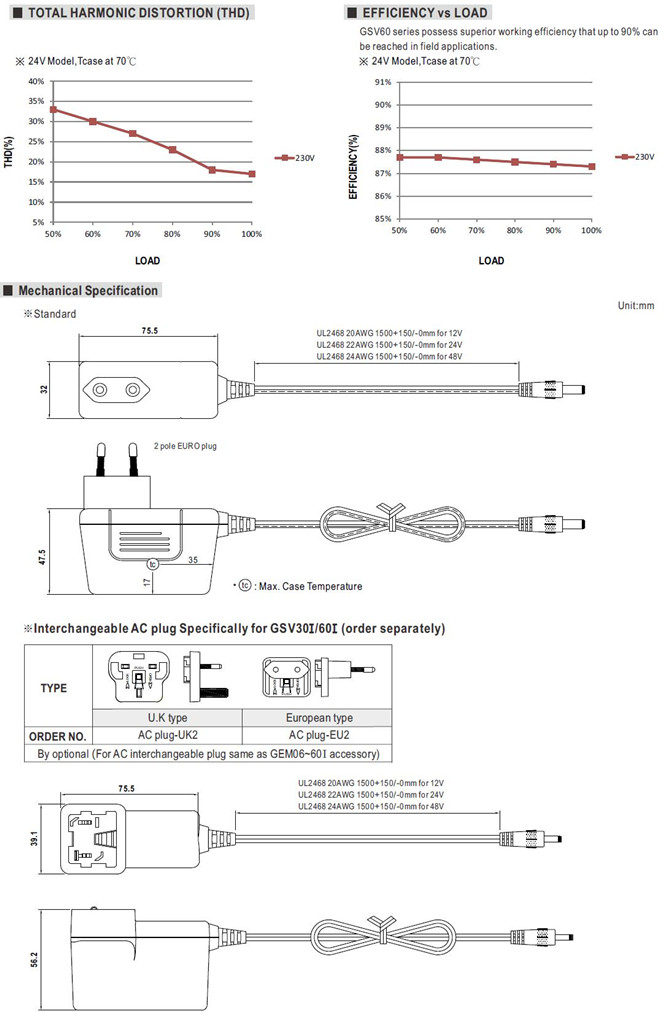

Meanwell GSV60 Series Mechanical Diagram
