RQ-125C
25.36
Details

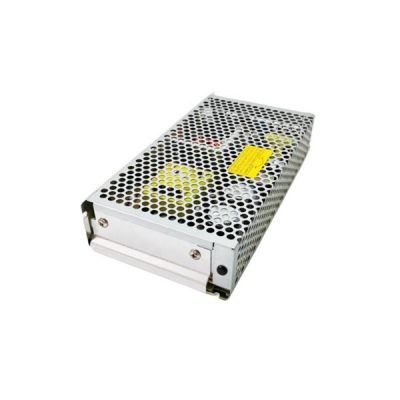

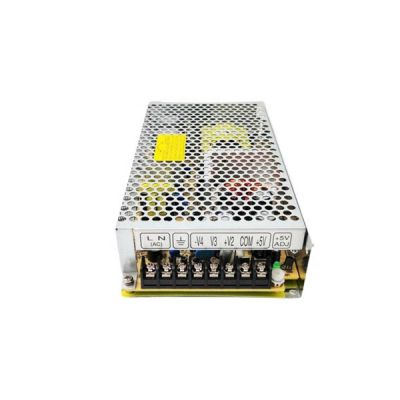

Meanwell RQ-125C is 125W Quad Output Mini size, non-PFC Switching Power Supply with CH1CH2CH3CH45V15V-5V-15V10A4A1A0.5A0-12A0-4A0-1A0-1A122.5W. It is able to withstand 300VAC surge input for 5 seconds and meanwhile 5G vibration test. With adopting 105℃ long life electrolytic capacitors and cooling by free air convection. RQ-125C can operate at temperature up to 70℃and 100% full load burn-in test. Thanks to its high efficiency, long life and high reliability, Meanwell RQ-125C is suitable to use in harsh conditions.
Meanwell RQ-125C Specifications
| Model | RQ-125C | ||||
| Output | OUTPUT NUMBER | CH1 | CH2 | CH3 | CH4 |
| DC VOLTAGE | 5V | 15V | -5V | -15V | |
| RATED CURRENT | 10A | 4A | 1A | 0.5A | |
| CURRENT RANGE | 0-12A | 0-4A | 0-1A | 0-1A | |
| RATED POWER | 122.5W | ||||
| RIPPLE & NOISE (max.) mVp-p | 80 | 120 | 80 | 80 | |
| VOLTAGE ADJ. RANGE | CH1: 4.75-5.5V | ||||
| VOLTAGE TOLERANCE | ±2% | +10,-1% | +6,-10% | ±5% | |
| LINE REGUL ATION | ±0.5% | ±1% | ±1% | ±1% | |
| LOAD REGUL ATION | ±1% | ±3% | ±6% | ±2% | |
| SETUP, RISE TIME | 500ms, 20ms/230VAC 1200ms, 30ms/115VAC at full load | ||||
| HOLD UP TIME (Typ.) | 25ms/230VAC 30ms/115VAC at full load | ||||
| Input | VOLTAGE RANGE | 88 ~ 132VAC / 176 ~ 264VAC selected by switch 248 ~ 373VDC(Withstand 300VAC surge for 5sec. Without damage) | |||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||
| EFFICIENCY (Typ.) | 78% | ||||
| AC CURRENT (Typ.) | 3A/115VAC 2A/230VAC | ||||
| INRUSH CURRENT (Typ.) | COLD START 50A/230VAC | ||||
| LEAKAGE CURRENT | <2mA / 240VAC | ||||
| PROTECTION | OVERLOAD | 110 ~ 150% rated output power | |||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed UL62368-1, |
|||||
| OVER VOLTAGE | CH1: 5.75 ~ 6.75V | ||||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||||
| ENVIRONMENT | WORKING TEMP. | -25 ~ +70℃ (Refer to "Derating Curve") | |||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH | ||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃)on CH1 output | ||||
| VIBRATION | 10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||||
| SAFETY &EMC | SAFETY STANDARDS | UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved | |||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | ||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | ||||
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020 | ||||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy industry level, criteria A, EAC TP TC | ||||
| Others | MTBF | 203.1Khrs min. MIL-HDBK-217F (25℃) | |||
| DIMENSION | 199*98*38mm (L*W*H) | ||||
| PACKING | 0.7Kg; 20pcs/14Kg/0.85CUFT | ||||
Meanwell RQ-125C Features
l 3-year warranty
l Withstand 5G vibration test
l LED indicator for power on
l 100% full load burn-in test
l Cooling by free air convection
l High operating temperature up to 70℃
l High efficiency, long life and high reliability
l Using 105℃long life electrolytic capacitors
l Withstand 300V AC surge input for 5 second
l Protections: Short circuit/Overload/Over voltage
Meanwell RQ-125C Mechanical Diagram
