EPS-65
13.52

EPS-65

As low as $13.52

Meanwell 65W Single Output Switching Power Supply

- +
Availability:In stock
SKU Meanwell EPS-65
Brand Meanwell
Details

Meanwell EPS-65 Series is a 65W Single Output Switching Power Supply with high-power density on the 4" by 2" footprint (Optional L- Bracket and cover). The entire series is designed in compact size and low profile, and offers printed circuit board architecture for direct mounting to the system chassis. At the same time, EPS-65 accepts 80~264VAC input and offers various output voltages between 3.3V and 48V. With the working efficiency up to 90% and the extremely low no load power consumption<0.3W. It is able to be used for ClassⅡ(no FG) system design. Apart from them, the series complies with the international safety regulations such as UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004. Moreover, it is equipped with various protection types such as Short circuit, Overload and Over voltage. Due to its high efficiency, low cost and longevity, Meanwell EPS-65 Series functions as a high price-to-performance power supply solution for various industrial applications such as factory automation, electrical or mechanical equipment.

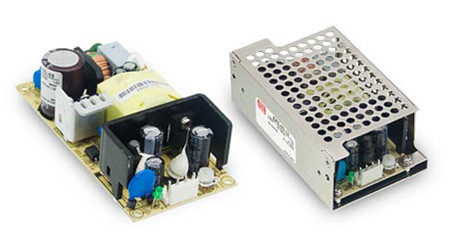

Meanwell EPS-65

Meanwell EPS-65 Series Model Specifications

EPS-65

Model EPS-65-3.3 EPS-65-5 EPS-65-7.5 EPS-65-12 EPS-65-15 EPS-65-24 EPS-65-36 EPS-65-48
OUTPUT DC VOLTAGE 3.3V 5V 7.5V 12V 15V 24V 36V 48V
RATED CURRENT 11A 11A 8A 5.42A 4.34A 2.71A 1.81A 1.36A
CURRENT RANGE 0-12A 0-12A 0-8A 0-5.42A 0-4.34A 0-2.71A 0-1.81A 0-1.36A
RATED POWER 36.3W 55W 60W 65.04W 65.1W 65.04W 65.16W 65.28W
PEAK LOAD (10sec.) 39.6W 60W 66W 72W 72W 72W 72W 72W
RIPPLE & NOISE (max.) 80mVp-p 80mVp-p 100mVp-p 120mVp-p 150mVp-p 240mVp-p 280mVp-p 300mVp-p
VOLTAGE ADJ. RANGE 3.1-3.6V 4.75-5.5V 7.13-8.25V 10.8-13.5V 13.5-16.5V 21.6-27V 32.4-39.6V 43.2-52.8V
VOLTAGE TOL ERANCE  ±3.0% ±2.0% ±2.0% ±2.0% ±2.0% ±1.0% ±1.0% ±1.0%
LINE REGULATION ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
LOAD REGUL .ATION ±2.0% ±1.0% ±1.0% ±1.0% ±1.0% ±1.0% ±1.0% ±1.0%
SETUP, RISE TIME 1000ms, 50ms/230VAC 2000ms, 50ms/115VAC at full load
HOLD UP TIME (Typ.) 50ms/230VAC 12ms/115VAC at full load
INPUT VOLTAGE RANGE 90 ~ 264VAC 127 ~ 370VDC [DC input operation possible by connecting AC/N(+), AC/L(-)]
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 80.00% 82.00% 84.00% 86.00% 87.00% 88.00% 89.00% 90.00%
AC CURRENT (Typ.) 1.8A/115VAC 1 A/230VAC
INRUSH CURRENT(Typ.) COLD START 60A/230VAC
LEAKAGE CURRENT <2mA/240VAC
PROTECTION OVERL OAD 115 ~ 160% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 3.7-4.45V 5.6-6.75V 8.63-10.1V 13.8-16.2V 17.25-20.25V 27.6-32.4V 39.7-46.8V 53.3-64.8V
Protection type : Shut down o/p voltage, re-power on to recover
ENVIRONMENT OPERATING ALTITUDE 4000 meters

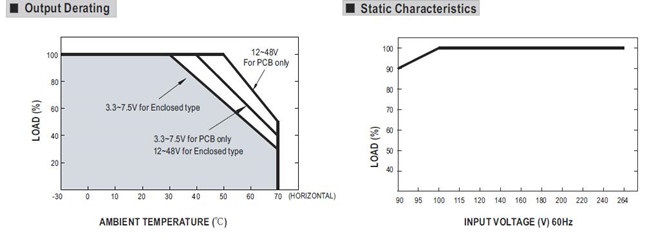

WORKING TEMP. -30 ~ +70(Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/(0 ~ 50)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC SAFETY STANDARDS  UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to /EN55032 (CISPR32) Class B, /EN61000-3-2,-3, BS EN BS EN EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, heavy industry level, criteria A,EAC TP TC 020
OTHERS MTBF 563Khrs min. MIL-HDBK-217F (25)
DIMENSION PCB:101.6*50.8*29mm (L*W*H) ; with optional CASE:103.4*62*37mm (L*W*H)
PACKING PCB: 0.15Kg; 96pcs/ 15.4 Kg/1.39CUFT ; with optional CASE: 0.3Kg; 45pcs/ 14.5Kg/0.63CUFT

Meanwell EPS-65 Series Features

l  Universal AC input/ Full range

l  Optional L- Bracket and cover

l  High efficiency up to 90%

l  Protections: Short circuit/Overload /Over voltage

l  Cooling by free air convection

l  4"X 2" compact size

l  LED indicator for power on

l  No load power consumption<0.3 W

l  Operating altitude up to 4000 meters

l  3 years warranty

Meanwell EPS-65

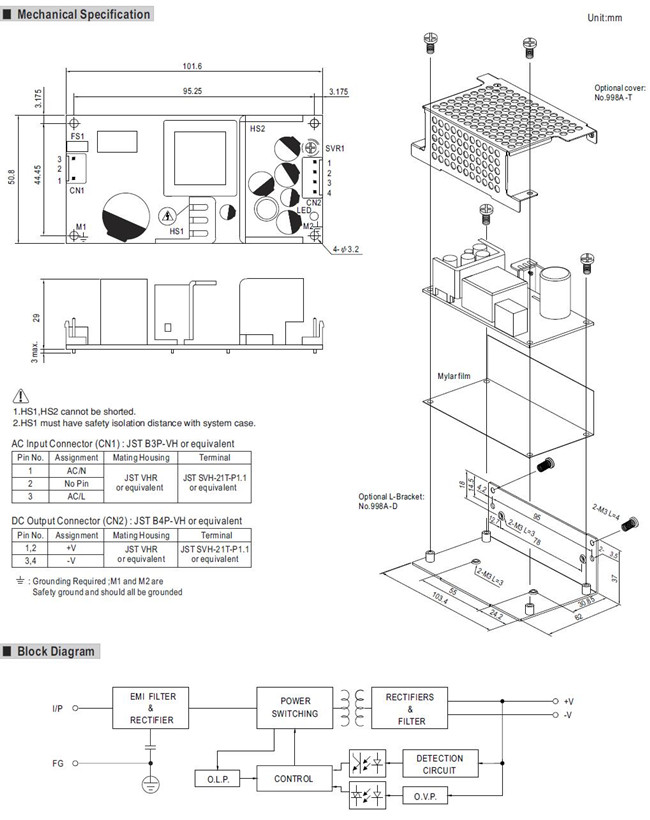

Meanwell EPS-65 Series Mechanical Diagram

Meanwell EPS-65 Series Mechanical DiagramMeanwell EPS-65 Series Mechanical Diagram
