RPS-60-5
14.27

RPS-60-5

$14.27

Meanwell 60W Reliable Green Medical Power Supply with 5V10A0-11A50W55W60mVp-p4.75-5.5V±2.0%±0.5%±1.0%

- +
Availability:In stock
SKU Meanwell RPS-60-5
Brand Meanwell
Details

Meanwell RPS-60-5 is a 60W highly reliable green PCB type medical power supply with 5V10A0-11A50W55W60mVp-p4.75-5.5V. It is designed with high power density on 4*2 footprint, and also accepts 80~264VAC input. At the same time, the product highlights with the high working efficiency up to 86%, extremely low no load power consumption less than 0.75W and operating altitude up to 3000 meters. So that it can be used fоr СlаѕѕⅡ(nо FG) ѕуѕtеm. Тhе ехtrеmеlу lоw lеаkаgе сurrеnt іѕ down below than 130 uA, and complies with international medical regulations (2*MOPP) and EMC BS EN/EN55011. Apart from them, the unit offers various protection functions such as Short circuit, Overload and Over voltage. Thanks to its high lifespan, outstanding reliability, excellent quality, Meanwell RPS-60-5 is a very perfect solution for all kinds of BF rated patient contact medical system equipment.

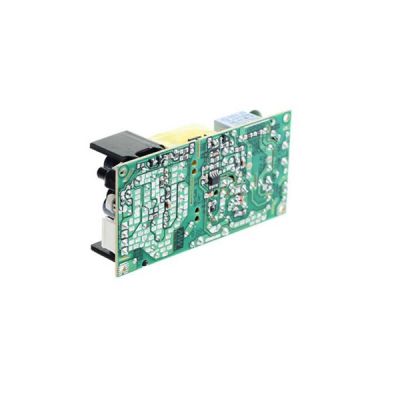

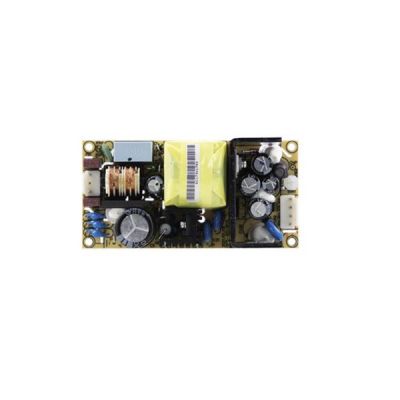

Meanwell RPS-60-5

Meanwell RPS-60-5 Encoding

RPS Series Name
60 Rated Wattage
5 Output Voltage

Meanwell RPS-60-5 Specifications

Model RPS-60-5
OUTPUT DC VOLTAGE 5V
RATED CURRENT 10A
CURRENT RANGE 0-11A
RATED POWER 50W
PEAK LOAD(10sec.) 55W
RIPPLE & NOISE (max.) 60mVp-p
VOLTAGE ADJ RANGE 4.75-5.5V
VOLTAGE TOL ERANCE  ±2.0%
LINE REGULATION ±0.5%
LOAD REGUL .ATION ±1.0%
SETUP, RISE TIME 500ms, 30ms/230VAC 500ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.) 60ms/230VAC 12ms/115VAC at full load
INPUT VOLTAGE RANGE 90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 79.00%
AC CURRENT (Typ.) 1.8A/115VAC 1 A/230VAC
INRUSH CURRENT(Typ.) COLD START 60A/230VAC 30A/115VAC
LEAKAGE CURRENT Earth leakage current < 130 A/264VAC , Touch current < 100 A/264VAC
PROTECTION OVERL OAD 115 ~ 150% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 5.7-6.8V
Protection type : Shut down o/p voltage, re-power on to recover
ENVIRONMENT WORKING TEMP. -20 ~ +70 (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.03%/(0 ~ 50)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
OPERATING ALTITUDE 3000 meters
SAFETY & EMC SAFETY STANDARDS Note.6,9 IEC62368-1, UL62368-1, TUV BS EN/EN62368-1, IEC60601-1, TUV BS EN/EN60601-1, UL ANSI / AAMI ES60601-1 (3.1 version), CAN/CSA-C22.2 No. 60601-1:14 - Edition 3, EAC TP TC 004 approved; Design refer to BS EN/EN60335-1
ISOLATION LEVEL Primary-Secondary: 2xMOPP, Primary-Earth:1xMOPP, Secondary-Earth:1xMOPP
WITHSTAND VOLTAGE I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC/ 25/ 70% RH
EMC IMMUNITY BS EN/EN60601-1-2
OTHERS MTBF 5153.0hrs min. Telcordia SR-332 (Bellcore) ; 353.6K hrs min. MIL-HDBK-217F (25)
DIMENSION 101.6*50.8*29mm or 4" * 2" *1.141" inch
PACKING 0.15Kg; 96pcs/15.4Kg/0.89CUFT

Meanwell RPS-60-5 Features

l  4"x2" compact size

l  3 years warranty

l  Cooling by free air convection

l  EMI class B for class Ⅱconfiguration

l  No load power consumption<0.75W

l  Protections: Short circuit/Overload/Over voltage

l  Operating altitude up to 3000 meters

l  Suitable for BF application with appropriate system consideration

l  IT & Medical safety approved (2 X MOPP) according to ANSI/AAMIES60601-1,IEC/BS EN/EN60601-1 and IEC/BS EN/EN/UL 62368-1

Meanwell RPS-60-5 Features

Meanwell RPS-60-5 Applications

l  Oral irrigator

l  Sleep apnea devices

l  Hemodialysis machine

l  Medical computer monitors

Meanwell RPS-60-5 Applications

Meanwell RPS-60-5 Mechanical Diagram

Meanwell RPS-60-5 Mechanical DiagramMeanwell RPS-60-5 Mechanical Diagram
