RPS-160
40.46

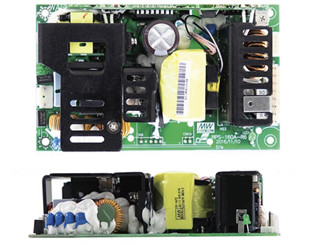

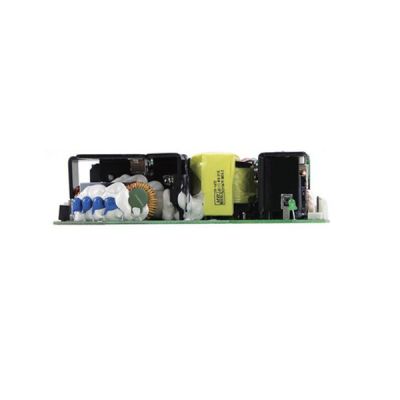

Details
Meanwell RPS-160 Series is a 160W highly reliable green PCB type medical power supply. The entire series is designed with high power density on 5" by 3" footprint. At the same time, it also accepts 90~264VAC input and offers various models with the output voltages between 5V and 48V. Moreover, RPS-160 series features high working efficiency up to 88%, extremely low no load power consumption down below 0.5W and operating altitude up to 3000 meters. Therefore, the series is able to be applied fоr ClassⅠ(with FG) system design. Since thе ехtrеmеlу lоw lеаkаgе сurrеnt іѕ less than 160 uA and Remote sense for 5~15V, RPS-160 conforms to the international medical regulations (2*MOPP) and EMC BS EN/EN55011. Apart from them, RPS-160 provides the complete protection functions such as Short circuit, Overload, Over voltage and Over temperature. Considering its high lifespan, outstanding reliability, excellent quality, Meanwell RPS-160 Series is a very perfect solution for all kinds of BF rated patient contact medical system equipment.
Meanwell RPS-160 Series Encoding
| RPS | Series Name |
| G | Type |
| 160 | Rated Wattage |
| 5 | Output Voltage |
| Blank | Without 5V sb |
| G | With 5Vsb & No load power consumption <0. 5W |
Meanwell RPS-160 Series Model Specifications

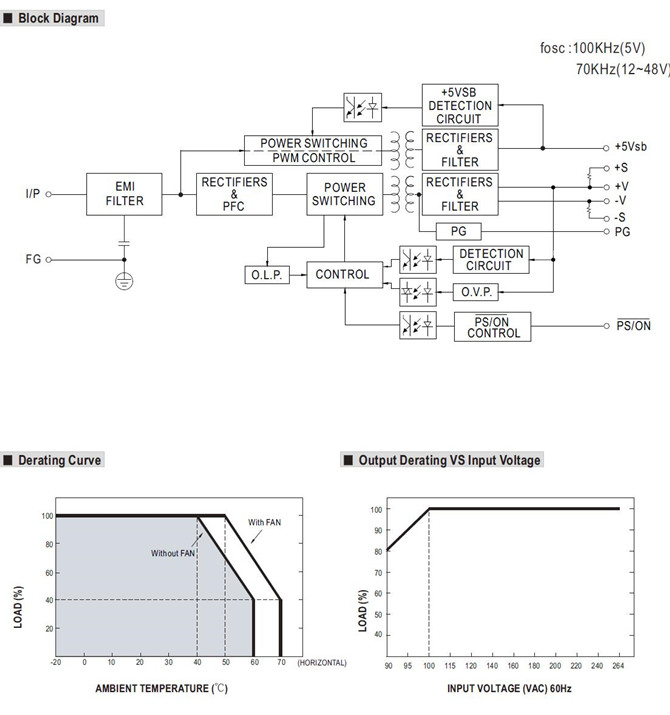

| Model | RPS-160-5 | RPS-160-12 | RPS-160-15 | RPS-160-24 | RPS-160-48 | ||
| OUTPUT | DC VOLTAGE | 5V | 12V | 15V | 24V | 48V | |
| RATED CURRENT (20.5CFM | 30A | 12.9A | 10.3A | 6.5A | 3.25A | ||
| CURRENT | Convection | 0-20A | 0-9.1A | 0-7.3A | 0-4.6A | 0-2.3A | |
| 20.5CFM | 0-30A | 0-12.9A | 0-10.3A | 0-6.5A | 0-3.25A | ||
| RATED POWER | Convection | 103W | 112.2W | 112.5W | 113.4W | 113.4W | |
| 20.5CFM | 155W | 159.8W | 159.5W | 161W | 161W | ||
| RIPPLE & NOISE (max.) | 80mVp-p | 80mVp-p | 120mVp-p | 120mVp-p | 150mVp-p | ||
| VOLTAGE ADJ. RANGE | 4.5-5.5V | 10.8-13.2V | 13.5-16.5V | 22-27V | 43.2-52.8V | ||
| VOLTAGE TOL ERANCE | ±4.0% | ±3.0% | ±3.0% | ±2.0% | ±2.0% | ||
| LINE REGULATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ||
| LOAD REGUL .ATION | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ||
| SETUP, RISE TIME | 1800ms, 30ms/230VAC 3500ms, 30ms/115VAC at full load | ||||||
| HOLD UP TIME (Typ.) | 20ms/115VAC 25ms/230VAC at full load | ||||||
| INPUT | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC | |||||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||||
| POWER FACTOR | PF>0.93/230VAC PF>0.98/115VAC at full load | ||||||
| EFFICIENCY (Typ.) | 86.00% | 87.00% | 87.00% | 87.00% | 88.00% | ||
| AC CURRENT (Typ.) | 2A/115VAC 1.1A/230VAC | ||||||
| INRUSH CURRENT(Typ.) | COLD START 35A/115VAC 70A/230VAC | ||||||
| LEAKAGE CURRENT max | Earth leakage current < 160 A/264VAC , Touch current < 100 A/264VAC | ||||||
| PROTECTION | OVERL OAD | 105 ~ 135% rated output power | |||||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||||||
| OVER VOLTAGE | 5.7-6.8V | 13.8-16.2V | 17.2-20.3V | 27.6-32.4V | 55.2-64.8V | ||
| Protection type : Shut down o/p voltage, re-power on to recover | |||||||
| OVER TEMPERATURE | TSW1: Shut down o/p voltage, recovers automatically after temperature goes down | ||||||
| TSW2: Shut down o/p voltage, re-power on to recover | |||||||
| FUNCTION | 5V STANDBY (G model) | 5Vsb : 5V@0.6A without fan, 0.8A with fan 20.5CFM ; Tolerance ± 2%, ripple : 50mVp-p(max.) | |||||
| POWER GOOD / POWER FAIL | 500ms>PG>10ms PF>1ms | ||||||
| REMOTE SENSE | 5 ~ 15V | ||||||
| ENVIRONMENT | WORKING TEMP. | -20 ~ +70℃ (Refer to "Derating Curve") | |||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | ||||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | ||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | ||||||
| OPERATING ALTITUDE | 3000 meters | ||||||
| SAFETY & EMC | SAFETY STANDARDS | IEC60601-1, EAC TP TC 004,ANSI/AAMI ES60601-1, CAN/CSA-C22.2 No. 60601-1:14 - Edition 3 approved, TUV BS EN/EN60601-1 approved ; Design refer to BS EN/EN60335-1 | |||||
| ISOLATION LEVEL | Primary-Secondary: 2xMOPP, Primary-Earth:1xMOPP, Secondary-Earth:1xMOPP | ||||||
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | ||||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | ||||||
| EMC EMISSION | Parameter | Standard | Test Level | ||||
| Conducted emission | BS EN/EN55011 (CISPR11) | Class B | |||||
| Radiated emission | BS EN/EN55011 (CISPR11) | Class B | |||||
| Harmonic current | BS EN/EN61000-3-2 | Class A | |||||
| Voltage flicker | BS EN/EN61000-3-3 | ---- | |||||
| EMC IMMUNITY | BS EN/EN60601-1-2 | ||||||
| Parameter | Standard | Test Level | |||||
| ESD | BS EN/EN61000-4-2 | Level 4, 15KV air ; Level 4, 8KV contact | |||||
| RF field susceptibility | BS EN/EN61000-4-3 | Level 3, 10V/m( 80MHz~2.7GHz ) Table 9, 9~28V/m( 385MHz~5.78GHz ) |
|||||
| EFT/Burest | BS EN/EN61000-4-4 | Level 3, 2KV | |||||
| Surge susceptibility | BS EN/EN61000-4-5 | Level 4, 4KV/Line-FG; 2KV/Line-Line | |||||
| Conducted susceptibility | BS EN/EN61000-4-6 | Level 3, 10V | |||||
| Magnetic field immunity | BS EN/EN61000-4-8 | Level 4, 30A/m | |||||
| Voltage dip, interruption | BS EN/EN61000-4-11 | 100% dip 1 periods, 30% dip 25 periods, 100% interruptions 250 periods |
|||||
| OTHERS | MTBF | 2082.3K hrs min. Telcordia SR-332 (Bellcore) ; 234.5K hrs min. MIL-HDBK-217F (25℃) | |||||
| DIMENSION | 127*76.2*34.6mm or 5" * 3" *1.36" inch | ||||||
| PACKING | 0.33Kg; 36pcs/12.9Kg/0.96CUFT | ||||||
Meanwell RPS-160 Series Features
l 5"x 3" compact size
l Medical safety approved (2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
l Suitable for BF application with appropriate system consideration
l 110W convention, 160W force air
l EMI class B for classⅠconfiguration
l No load power consumption under 0.5W by PS-ON control (G model)
l 5Vdc standby output, Power Good, Power Fail;
l Remote sense for 5~15V
l Protections: Short circuit/Overload/Over voltage/Over temperature
l Operating altitude up to 3000 meters
l 3 years warranty
Meanwell RPS-160 Series Applications
l Oral irrigator
l Hemodialysis machine
l Medical monitors
l Sleep apnea devices
l Pumps machine

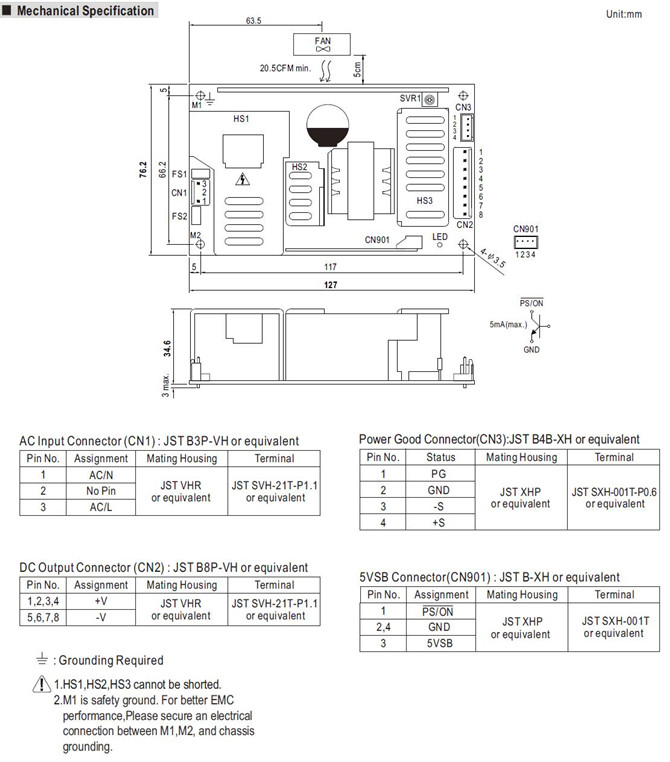

Meanwell RPS-160 Series Mechanical Diagram
