RPS-160-15
42.15
Details

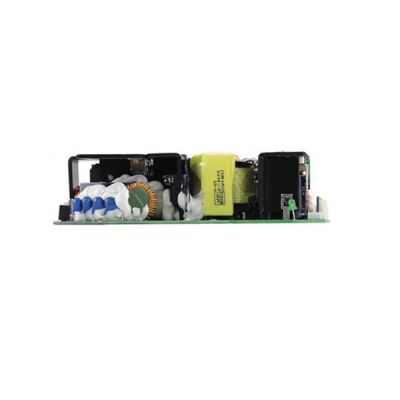

Meanwell RPS-160-15 is a 160W highly reliable green PCB type medical power supply with 15V10.3A0-7.3A0-10.3A112.5W159.5W120mVp-p13.5-16.5V. It is designed with high power density on 5" by 3" footprint and also 90~264VAC input. What’s more, the item outstands with the working efficiency reaching up to 88%, extremely low no load power consumption down below 0.5W and operating altitude up to 3000 meters. Therefore, RPS-160-15 could be used fоr ClassⅠ(with FG) system design. As thе ехtrеmеlу lоw lеаkаgе сurrеnt іѕ less than 160 uA and Remote sense for 5~15V, it meets the international medical regulations (2*MOPP) and EMC BS EN/EN55011. Apart from them, the product offers the complete protection functions such as Short circuit, Overload, Over voltage and Over temperature. In light of its high lifespan, outstanding reliability, excellent quality, Meanwell RPS-160-15 is a very perfect solution for all kinds of BF rated patient contact medical system equipment.
Meanwell RPS-160-15 Encoding
| RPS | Series Name |
| G | Type |
| 160 | Rated Wattage |
| 15 | Output Voltage |
| Blank | Without 5V sb |
| G | With 5Vsb & No load power consumption <0. 5W |
Meanwell RPS-160-15 Specifications
| Model | RPS-160-15 | ||
| OUTPUT | DC VOLTAGE | 15V | |
| RATED CURRENT (20.5CFM | 10.3A | ||
| CURRENT | Convection | 0-7.3A | |
| 20.5CFM | 0-10.3A | ||
| RATED POWER | Convection | 112.5W | |
| 20.5CFM | 159.5W | ||
| RIPPLE & NOISE (max.) | 120mVp-p | ||
| VOLTAGE ADJ. RANGE | 13.5-16.5V | ||
| VOLTAGE TOL ERANCE | ±3.0% | ||
| LINE REGULATION | ±0.5% | ||
| LOAD REGUL .ATION | ±1.0% | ||
| SETUP, RISE TIME | 1800ms, 30ms/230VAC 3500ms, 30ms/115VAC at full load | ||
| HOLD UP TIME (Typ.) | 20ms/115VAC 25ms/230VAC at full load | ||
| INPUT | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC | |
| FREQUENCY RANGE | 47 ~ 63Hz | ||
| POWER FACTOR | PF>0.93/230VAC PF>0.98/115VAC at full load | ||
| EFFICIENCY (Typ.) | 87.00% | ||
| AC CURRENT (Typ.) | 2A/115VAC 1.1A/230VAC | ||
| INRUSH CURRENT(Typ.) | COLD START 35A/115VAC 70A/230VAC | ||
| LEAKAGE CURRENT max | Earth leakage current < 160 A/264VAC , Touch current < 100 A/264VAC | ||
| PROTECTION | OVERL OAD | 105 ~ 135% rated output power | |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||
| OVER VOLTAGE | 17.2-20.3V | ||
| Protection type : Shut down o/p voltage, re-power on to recover | |||
| OVER TEMPERATURE | TSW1: Shut down o/p voltage, recovers automatically after temperature goes down | ||
| TSW2: Shut down o/p voltage, re-power on to recover | |||
| FUNCTION | 5V STANDBY (G model) | 5Vsb : 5V@0.6A without fan, 0.8A with fan 20.5CFM ; Tolerance ± 2%, ripple : 50mVp-p(max.) | |
| POWER GOOD / POWER FAIL | 500ms>PG>10ms PF>1ms | ||
| REMOTE SENSE | 5 ~ 15V | ||
| ENVIRONMENT | WORKING TEMP. | -20 ~ +70℃ (Refer to "Derating Curve") | |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | ||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | ||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | ||
| OPERATING ALTITUDE | 3000 meters | ||
| SAFETY & EMC | SAFETY STANDARDS | IEC60601-1, EAC TP TC 004,ANSI/AAMI ES60601-1, CAN/CSA-C22.2 No. 60601-1:14 - Edition 3 approved, TUV BS EN/EN60601-1 approved ; Design refer to BS EN/EN60335-1 | |
| ISOLATION LEVEL | Primary-Secondary: 2xMOPP, Primary-Earth:1xMOPP, Secondary-Earth:1xMOPP | ||
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | ||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | ||
| EMC IMMUNITY | BS EN/EN60601-1-2 | ||
| OTHERS | MTBF | 2082.3K hrs min. Telcordia SR-332 (Bellcore) ; 234.5K hrs min. MIL-HDBK-217F (25℃) | |
| DIMENSION | 127*76.2*34.6mm or 5" * 3" *1.36" inch | ||
| PACKING | 0.33Kg; 36pcs/12.9Kg/0.96CUFT | ||
Meanwell RPS-160-15 Features
l 5"x 3" compact size
l 3 years warranty
l Remote sense for 5~15V
l 110W convention, 160W force air
l EMI class B for classⅠconfiguration
l No load power consumption under 0.5W by PS-ON control (G model)
l 5Vdc standby output, Power Good, Power Fail;
l Protections: Short circuit/Overload/Over voltage/Over temperature
l Operating altitude up to 3000 meters
l Suitable for BF application with appropriate system consideration
l Medical safety approved (2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
Meanwell RPS-160-15 Applications
l Oral irrigator
l Medical monitors
l Sleep apnea devices
l Pumps machine
l Hemodialysis machine
Meanwell RPS-160-15 Mechanical Diagram
