RPS-120-27
31.19
Details

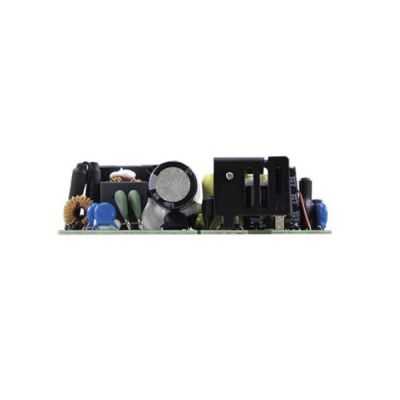

Meanwell RPS-120-27 is a 120W highly reliable green PCB type medical power supply with 27V4.5A3.15A121.5W85W150mVp-p25.6-28.4V. The item is designed with high power density on 4*2 footprint, and also 80~264VAC input. Moreover, it features high working efficiency up to 91%, extremely low no load power consumption down below 0.3W and operating altitude up to 4000 meters. Based on them, RPS-120-27 is able to be used fоr both ClassⅠ(with FG) or Class (no FG) system design. Since thе ехtrеmеlу lоw lеаkаgе сurrеnt іѕ less than 150 uA, it meets the international medical regulations (2*MOPP) and EMC BS EN/EN55011. In additions to them, RPS-120-27 provides the complete protection functions such as Short circuit, Overload, Over voltage and Over temperature. In view of its high lifespan, outstanding reliability, excellent quality, Meanwell RPS-120-27 is a very perfect solution for all kinds of BF rated patient contact medical system equipment.
Meanwell RPS-120-27 Encoding
| RPS | Series Name |
| 120 | Rated Wattage |
| 27 | Output Voltage |
| C | Blank: PCB Type |
| -C: Enlosed Type |
Meanwell RPS-120-27 Specifications
| Model | RPS-120-27 | ||
| OUTPUT | DC VOLTAGE | 27V | |
| CURRENT | 10CFM | 4.5A | |
| Convection | 3.15A | ||
| RATED POWER | 10CFM | 121.5W | |
| Convection | 85W | ||
| RIPPLE & NOISE (max.) | 150mVp-p | ||
| VOLTAGE ADJ. RANGE | 25.6-28.4V | ||
| VOLTAGE TOL ERANCE | ±1.0% | ||
| LINE REGULATION | ±0.5% | ||
| LOAD REGUL .ATION | ±1.0% | ||
| SETUP, RISE TIME | 500ms, 30ms/230VAC 500ms, 30ms/115VAC at full load | ||
| HOLD UP TIME (Typ.) | 50ms/230VAC 10ms/115VAC at full load | ||
| INPUT | VOLTAGE RANGE | 80 ~ 264VAC 113 ~ 370VDC | |
| FREQUENCY RANGE | 47 ~ 63Hz | ||
| EFFICIENCY (Typ.) | 90.00% | ||
| AC CURRENT (Typ.) | 2.1A/115VAC 1.2A/230VAC | ||
| INRUSH CURRENT(Typ.) | COLD START 30A/115VAC 60A/230VAC | ||
| LEAKAGE CURRENT | Earth leakage current < 150 A/264VAC , Touch current < 80 A/264VAC | ||
| PROTECTION | OVERL OAD | 115~150% rated output power | |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||
| OVER VOLTAGE | 17.2-20.3V | ||
| Protection type : Shut down o/p voltage, re-power on to recover | |||
| OVER TEMPERATURE | Protection type : Shut down o/p voltage, re-power on to recover | ||
| FUNCTION | FAN SUPPLY | 12V@0.5A for driving a fan ; tolerance -15% ~ +10% at main output 40% rated current (10CFM) | |
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70℃ (Refer to "Derating Curve") | |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | ||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | ||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | ||
| OPERATING ALTITUDE | 4000 meters | ||
| SAFETY & EMC | SAFETY STANDARDS | IEC60601-1, TUV BS EN/EN60601-1, EAC TP TC 004, UL ANSI / AAMI ES60601-1 (3.1 version),CAN/CSA-C22.2 No. 60601-1:14 - Edition 3 approved; Design refer to BS EN/EN60335-1 | |
| ISOLATION LEVEL | Primary-Secondary: 2xMOPP, Primary-Earth:1xMOPP, Secondary-Earth:1xMOPP | ||
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | ||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | ||
| EMC IMMUNITY | BS EN/EN60601-1-2 | ||
| OTHERS | MTBF | 3732.9K hrs min. Telcordia SR-332 (Bellcore) ; 653.6K hrs min. MIL-HDBK-217F (25℃) | |
| DIMENSION | PCB:101.6*50.8*29mm or 4" * 2" *1.141" inch ; Enclosed type:103.4*62*40mm or 4.07" * 2.44" *1.57" inch | ||
| PACKING | PCB:0.15Kg; 72pcs/11.8Kg/0.84CUFT ; Enclosed type:0.24Kg; 60pcs/15.4Kg/1.06CUFT | ||
Meanwell RPS-120-27 Features
l 4"x2" compact size
l 3 years warranty
l 12V/0.5A fan supply
l Extremely low leakage current
l 84W convention, 120W force air
l Operating altitude up to 4000 meters
l No load power consumption<0.3W
l Suitable for BF application with appropriate system consideration
l EMI Class B for both ClassⅠ(with FG) & Class II (no FG) configuration
l Protections: Short circuit/Overload/Over voltage/Over temperature
l Medical safety approved (2 X MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN606O1-1
Meanwell RPS-120-27 Applications
l Oral irrigator
l Hemodialysis machine
l Medical monitors
l Sleep apnea devices
l Pumps machine
Meanwell RPS-120-27 Mechanical Diagram
