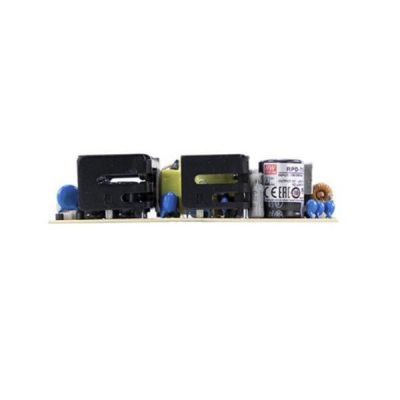

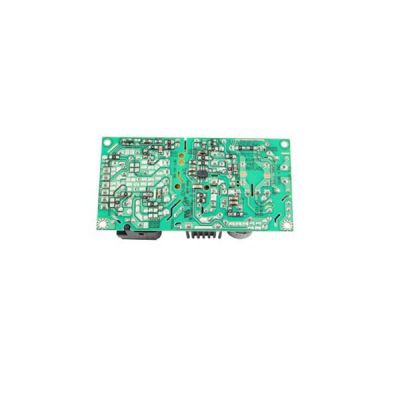

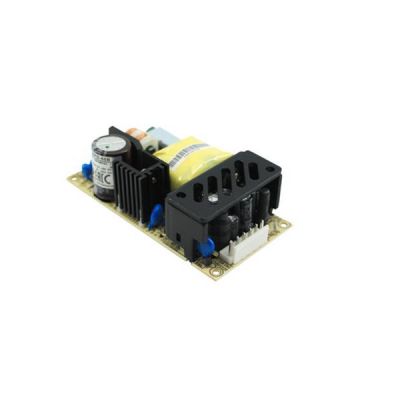

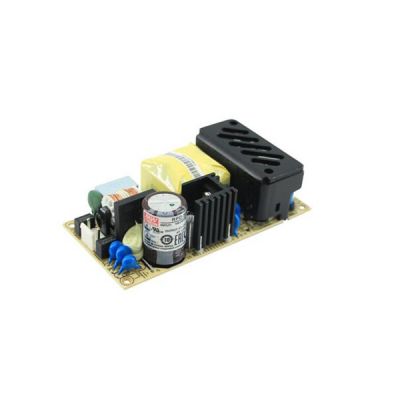

RPD-75B
17.47
Details
Meanwell RPD-75B is a 75W highly reliable green PCB type medical power supply with CH1CH25V24V5A2A1-6.8A0.2-2.7A73W98.8W80mVp-p120mVp-pCH1: 4.75~ 5.5V. It is designed with high power density on the 5" by 3" footprint, and also accepts 90~264VAC input with dual output voltages. What’s more, RPD-75B highlights the working efficiency reaching up to 79%, low no load power consumption and low leakage current. Based on them, the item could be applied for ClassⅠ(with FG) system design. As per free air convection for rated power and 23.5CFM forced air convection for peak load, RPD-75B satisfies the international medical regulations (2*MOPP) and EMC BS EN/EN55011. Apart from them, the product provides the various protection functions such as Short circuit, Overload and Over voltage. Thanks to its longevity, high reliability, excellent quality, Meanwell RPD-75B is a very perfectly fitting solution for all kinds of BF rated "patient contact" medical system equipment.
Meanwell RPD-75B Encoding
| RPD | Series Name |
| 75 | Rated Wattage |
| B | Output Voltage |
Meanwell RPD-75B Specifications
| Model | RPD-75B | ||
| OUTPUT | OUTPUT NUMBER | CH1 | CH2 |
| DC VOLTAGE | 5V | 24V | |
| RATED CURRENT | 5A | 2A | |
| CURRENT RANGE | 1-6.8A | 0.2-2.7A | |
| RATED POWER | 73W | ||
| PEAK LOAD(10sec.) | 98.8W | ||
| RIPPLE & NOISE (max.) | 80mVp-p | 120mVp-p | |
| VOLTAGE ADJ. RANGE | CH1: 4.75 ~ 5.5V | ||
| VOLTAGE TOL ERANCE | ±2.0% | ±6.0% | |
| LINE REGULATION | ±0.5% | ±1.0% | |
| LOAD REGUL .ATION | ±1.5% | ±3.0% | |
| SETUP, RISE TIME | 500ms, 30ms/230VAC 500ms, 30ms/115VAC at full load | ||
| HOLD UP TIME (Typ.) | 90ms/230VAC 20ms/115VAC at full load | ||
| INPUT | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC | |
| FREQUENCY RANGE | 47 ~ 63Hz | ||
| POWER FACTOR | PF>0.94/230VAC PF>0.98/115VAC at full load | ||
| EFFICIENCY (Typ.) | 79.00% | ||
| AC CURRENT (Typ.) | 1.5A/115VAC 1A/230VAC | ||
| INRUSH CURRENT(Typ.) | COLD START 25A/115VAC 50A/230VAC | ||
| LEAKAGE CURRENT | Earth leakage current < 150 A/264VAC , Touch current < 100 A/264VAC | ||
| PROTECTION | OVERL OAD | 140 ~ 180% rated output power | |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||
| OVER VOLTAGE | Ch1: 5.7 ~ 6.8V | ||
| Protection type : Shut down o/p voltage, re-power on to recover | |||
| ENVIRONMENT | WORKING TEMP. | -20 ~ +70℃ (Refer to "Derating Curve") | |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | ||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | ||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||
| OPERATING ALTITUDE | 3000 meters | ||
| SAFETY & EMC | SAFETY STANDARDS Note.6,9 | IEC60601-1, EAC TP TC 004, UL ANSI/AAMI ES60601-1, CAN/CSA-C22.2 No. 60601-1:14 - Edition 3 approved, TUV BS EN/EN60601-1 approved |
|
| ISOLATION LEVEL | Primary-Secondary:2xMOPP, Primary-Earth:1xMOPP | ||
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | ||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | ||
| EMC IMMUNITY | BS EN/EN60601-1-2 | ||
| OTHERS | MTBF | 2575.6K hrs min. Telcordia SR-332 (Bellcore) ; 569.9K hrs min. MIL-HDBK-217F (25℃) | |
| DIMENSION | 127*76.2*31mm or 5" * 3" *1.22" inch | ||
| PACKING | 0.25Kg; 63pcs/17.3Kg/1.28CUFT | ||
Meanwell RPD-75B Features
l 5"x3" compact size
l 3 years warranty
l Lifetime > 140K hours
l Extremely low leakage current
l EMI class B for classⅠconfiguration
l Protections: Short circuit/ Overload/Over voltage
l Suitable for BF application with appropriate system consideration
l Free air convection for rated power and 23.5CFM forced air convection for peak load
l Medical safety approved (2 X MOPP) according to ANS I/AAMI ES60601-1 and IEC/BS EN/EN606O1-1
Meanwell RPD-75B Applications
l Oral irrigator
l Sleep apnea devices
l Hemodialysis machine
l Medical computer monitors

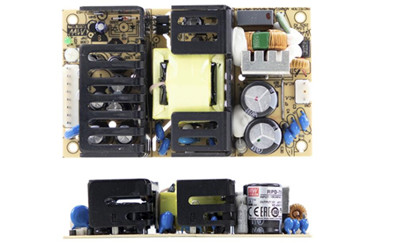

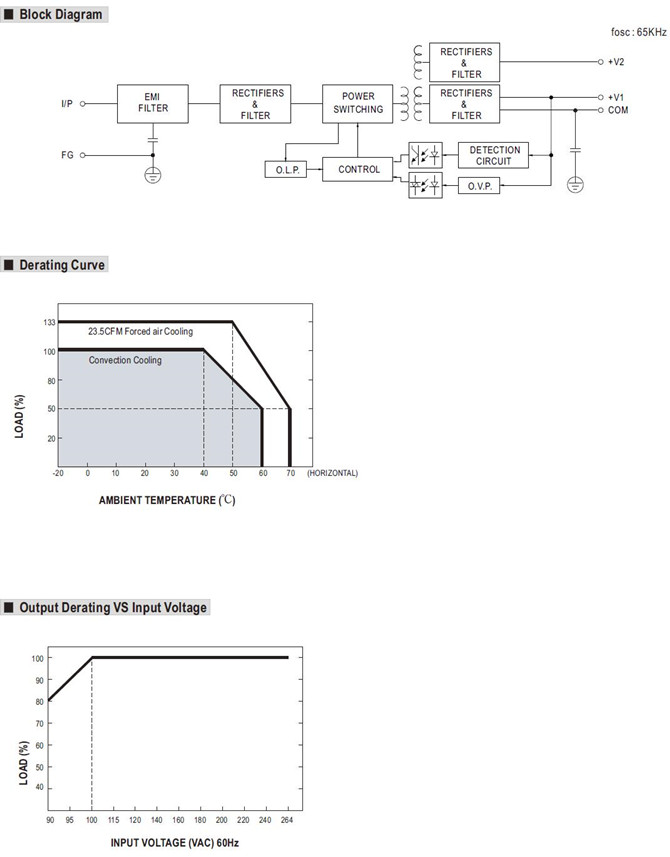

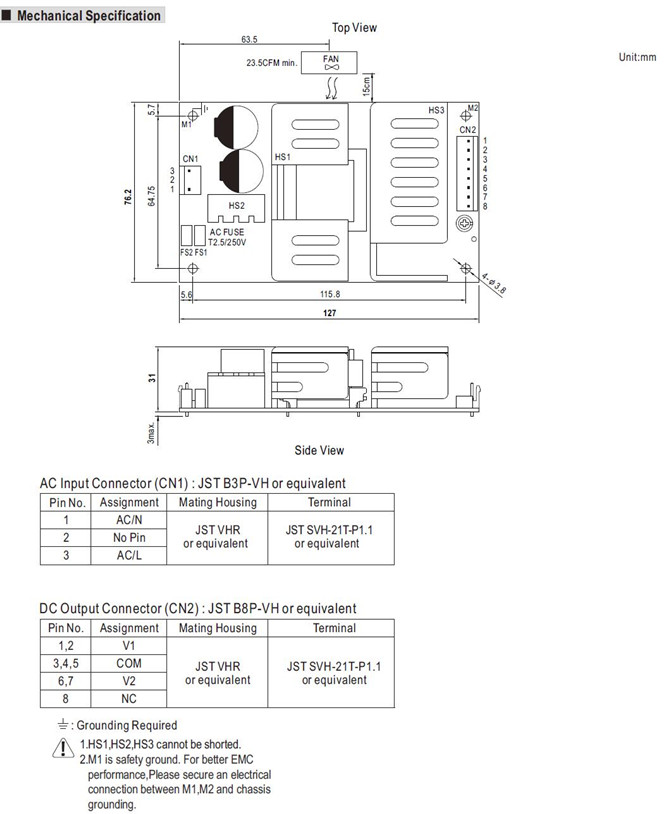

Meanwell RPD-75B Mechanical Diagram
