RCB-1600-48
400.27

RCB-1600-48

$400.27

Meanwell 1600W Rack Mountable Front End Battery Charger with 57.6V55.2V27.5A1584W47.5-58.8V90~270Ah<45mA90~264VAC127~370VDC47~63Hz

- +
Availability:In stock
SKU Meanwell RCB-1600-48
Brand Meanwell
Details

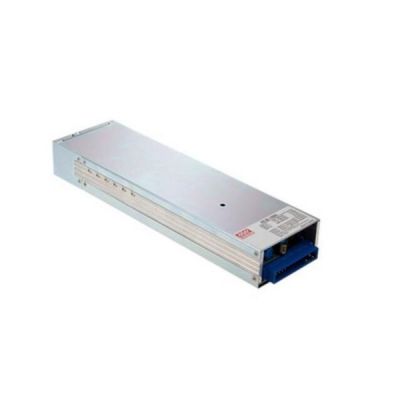

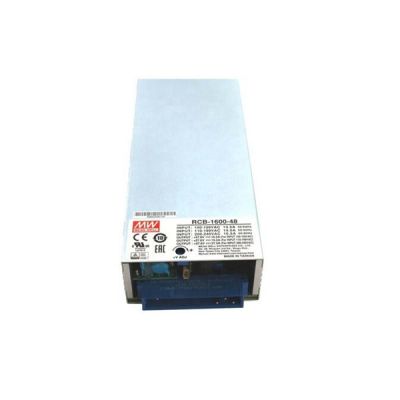

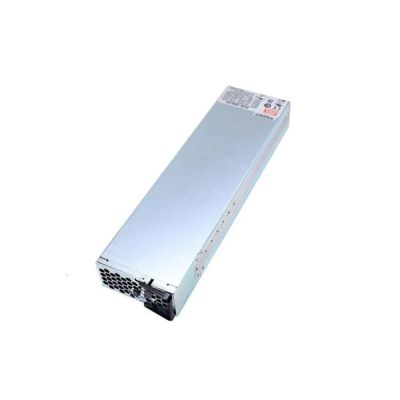

Meanwell RCB-1600-48 is a 1600W AC/DC single output Rack Mountable Front End Battery Charger with 57.6V55.2V27.5A1584W47.5-58.8V90~270Ah<45mA. It is designed 1U low profile (41mm) and built-in PFC functions. At the same time, the item has an intelligent charger with embedded programmable charging curves. The users could adjust the charging voltage and current via the built-in potentiometer, output programmable functions, PMBus, or CANBus to charge different types of batteries, such as lead-acid batteries and li-ion batteries. More than them, RCB-1600-48 offers the various protection mechanisms like Battery under voltage, Battery no connection, Short circuit, Over voltage and Over temperature. Additionally, temperature compensation function is equipped to assure the normal and safe operations. The rack-mountable feature allows Meanwell RCB-1600-48 to perfectly suit the charging, backup or constant current source applications under the rack architecture or central management.

Meanwell RCB-1600-48 Meanwell RCB-1600 price and specs ac dc rack mount single output new ycict

Meanwell RCB-1600-48 Encoding

RCB Series Name
1600 Output Wattage
48 Nominal Voltage
*** Communication Protocol Option
Blank PMBus Protocol In stock
CAN CANBus Protocol By Request

Meanwell RCB-1600-48 Specifications

Model RCB-1600-48
Output BOOST CHARGE VOLTAGE(Vboost)(default) 57.6V
FLOAT CHARGE VOLTAGE(Vfloat)(default) 55.2V
CONSTANT CURRENT(CC)(default) 27.5A
RATED POWER 1584W
VOLTAGE ADJ. RANGE(SVR) By built-in potentiometer, SVR
47.5-58.8V
RECOMMENDED BATTERY CAPACITY(AMP HOURS) Note 90 ~ 270Ah
LEAKAGE CURRENT FROM BATTERY (Typ.) <45mA
Input VOLTAGE RANGE 90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR (Typ.) 0.97/230VAC at full load
EFFICIENCY (Typ.)  93.00%
AC CURRENT (Typ.) 15A/115VAC 8.5A/230VAC
INRUSH CURRENT (Typ. ) COLD START 35A/230VAC
LEAKAGE CURR ENT <1.5mA / 230VAC
PRPTECTION OVER VOLTAGE 63 ~ 75V
Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE Shut down o/p voltage, recovers automatically after temperature goes dow
FUNCTION OUTPUT VOLTAGE PROGRAMMABLE(PV) Adjustment of output voltage is allowable to 75 ~ 125% of nominal output voltage
OUTPUT CURRENT PROGRAMMABLE(PC) Adjustment of output current is allowable to 20 ~ 100% of rated current
AUXILIARY POWER 5V @ 0.3A, 12V @ 0.8A
REMOTE ON-OFF CONTROL By electrical signal or dry contact Power ON:short Power OFF:open
TEMPERATURE COMPENSATION -3mV // cell / (12V = 6 cells ; 24V = 12 cells ; 48V = 24 cells
DC OK SIGNAL The isolated TTL signal out. Please refer to the Installation Manual
AC OK SIGNAL The isolated TTL signal out. Please refer to the Installation Manual
ENVIRONMENT WORKING TEMP -30 ~ +70 (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.03%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY &EMC SAFETY STANDARDS UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC (0.5KVAC for 12V)
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55032 (CISPR32) Conduction Class B, Radiation Class A ; BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, EAC TP TC 020
Others MTBF 476.7K hrs min. Telcordia SR-332 (Bellcore) ; 38.7K hrs min. MIL-HDBK-217F (25)
DIMENSION 300*85*41mm (L*W*H)
PACKING 1.87Kg; 6pcs/12.2Kg/1.16CUFT

Meanwell RCB-1600-48 Features

l  5 years warranty

l  Optional conformal coating

l  Built-in active PFC function

l  Forced air cooling by built-in DC fan

l  Output voltage and current programmable

l  Built-in OR-ing FET, support hot swap (hot plug)

l  Active current sharing up to 8000W for one 19" rack shelf

l  Built-in default 3 stage charging curves and programmable curve

l  Built-in I² C interface PMBus protocol (Optional CANBus protocol)

l  Universal AC input/ Full range (Withstand 300V AC surge input for 5 seconds)

l  Protections: Battery under voltage/Battery no connection/Short circuit/Over voltage/Over temperature

l  Charger for lead-acid batteries (Gel, flooded and AGM) and Li-ion batteries (lithium iron and lithium manganese)

Meanwell RCB-1600-48 Features Meanwell RCB-1600-48 price and specs ac dc rack mount single output 1600w ycict

Meanwell RCB-1600-48 Applications

l  Electrolysis system

l  Marine battery charger module

l  Electric scooter or vehicle charger station

l  Wastewater treatment system

l  Large scale DC UPS or emergency backup system

Meanwell RCB-1600-48Applications Meanwell RCB-1600-48 price and specs ac dc rack mount single output 1600w ycict

Meanwell RCB-1600-48 Mechanical Diagram

Meanwell RCB-1600-48 Mechanical Diagram Meanwell RCB-1600-48 price and specs ac dc rack mount single output 1600w ycict

Meanwell RCB-1600-48 Mechanical Diagram meanwell rcb-1600 price and specs ac dc rack mount 1u new ycict
