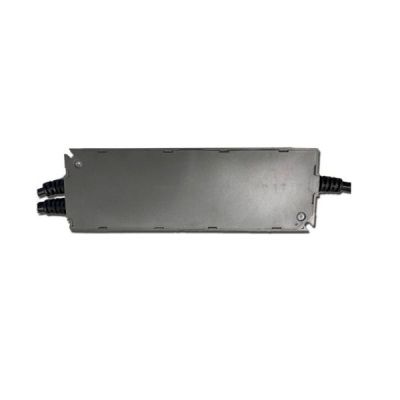

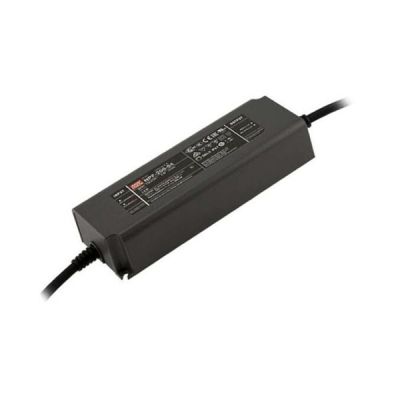

Meanwell NPF-200 Series is 200W AC/DC LED driver highlighting the constant current or constant voltage mode output. At the same time, the entire series could operate from 100~305VAC and offer the models with different rated voltage ranging between 12V and 54V. Since the high efficiency reaches up to 94% based on the fanless design, NPF-200 is able to work for -40℃~+ 85℃ case temperature under free air convection. Moreover. the product is rated with IP67 ingress protection level. Apart from them, it is particularly designed without flicker Dimming Function which is suitable for LED strip or Poultry lighting applications. PWM-200 series, mainly for constant voltage output applications, provides LED light strip lighting applications, and meets the requirements of IEEE-1789 specifications, no visual strobe problems. NPF-200 series adopts the C.C+C.V design method, which can be used with any LED strip light or lamp for constant current application. Considering its longevity, high efficiency, and excellent quality, Meanwell NPF-200 Series serves as an ideal solution to work for a variety of applications at dry, damp or wet locations.
Meanwell NPF-200 Series Encoding
| NPF | Series Name |
| 200 | Rated Wattage |
| V | Blank. Without Dimming, V: with 3 in 1 Dimming function for C.V Dimming |
| 12 | Output Voltage |
| Blank IP67 | Constant Voltage + Constant Current mode output In stock |
| V IP67 | 3 in 1 Dimming function to adjust output voltage ( C.V Dimming) In stock |
Meanwell NPF-200 Series Model Specifications
| Model | NPF-200□-12 | NPF-200□-24 | NPF-200□-36 | NPF-200□-42 | NPF-200□-48 | NPF-200□-54 | |
| OUTPUT | DC VOLTAGE | 12V | 24V | 36V | 42V | 48V | 54V |
| CONSTANT CURRENT AND OUTPUT VOLTAGE REGION | 6-12V | 12-24V | 18-36V | 21-42V | 24-48V | 27-54V | |
| RATED CURRENT | 15A | 8.3A | 5.55A | 4.75A | 4.17A | 3.71A | |
| RATED POWER | 180W | 199.2W | 199.8W | 199.5W | 200.1W | 200.3W | |
| RIPPLE & NOISE (max.) | 150mVp-p | 150mVp-p | 200mVp-p | 250mVp-p | 250mVp-p | 350mVp-p | |
| VOLTAGE TOLERANCE | ±4.0% | ±4.0% | ±2.0% | ±2.0% | ±2.0% | ±2.0% | |
| LINE REGULATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| LOAD REGULATION | ±2.0% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| SETUP, RISE TIME | 500ms/230VAC or 115VAC | ||||||
| HOLD UP TIME (Typ.) | 10ms/230VAC or 115VAC | ||||||
| HOLD UP TIME (Typ.) | 80ms for Blank type, 200ms for V-type | ||||||
| Input | VOLTAGE RANGE | 100 ~ 305VAC 142 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section) | |||||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||||
| POWER FACTOR | PF>=0.97/115VAC, PF>=0.96/230VAC, PF>=0.94/277VAC at full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section | ||||||
| TOTAL HARMONIC DISTORTION | THD< 20%( at load>=60%/115VC, 230VAC; at load>=75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section) | ||||||
| EFFICIENCY (Typ.) | 92.00% | 93.00% | 94.00% | 94.00% | 94.00% | 94.00% | |
| AC CURRENT | 2.2A / 115VAC 1.1A / 230VAC 0.9A / 277VAC | ||||||
| INRUSH CURRENT(Typ.) | COLD START 65A(twidth=550 μ s measured at 50% Ipeak) at 230VAC; Per NEMA 410 | ||||||
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 3 units (circuit breaker of type B) / 5 units (circuit breaker of type C) at 230VAC | ||||||
| STANDBY POWER CONSUMPTION | <0.5W for V-type only (Output voltage dim to off) | ||||||
| LEAKAGE CURRENT | <0.25mA / 277VAC | ||||||
| PROTECTION | OVER CURRENT | 95 ~ 108% | |||||
| Hiccup mode or Constant current limiting, recovers automatically after fault condition is removed | |||||||
| SHORT CIRCUIT | Hiccup mode or Constant current limiting, recovers automatically after fault condition is removed | ||||||
| OVER VOLTAGE | 13-18V | 27-34V | 41-49V | 46-57V | 53-65V | 59-70V | |
| Shut down o/p voltage, re-power on to recover | |||||||
| OVER TEMPERATURE | Shut down o/p voltage, re-power on to recover | ||||||
| ENVIRONMENT | WORKING TEMP. | Tcase=-40 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section) | |||||
| MAX. CASE TEMP. | Tcase=+85℃ | ||||||
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | ||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | ||||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | ||||||
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | ||||||
| SAFETY & EMC | SAFETY STANDARDS | UL8750(type”HL”), CSA C22.2 No. 250.13-12, According to BS EN/EN61347-2-13 appendix J suitable for emergency installations. ENEC BS EN/EN61347-1, BS EN/EN61347-2-13, BS EN/EN62384 independent, EAC TP TC 004, GB19510.1,GB19510.14,IP67 approved; Design refer to BS EN/EN60335-1 | |||||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC | ||||||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | ||||||
| EMC EMISSION | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (at load>=60%) ; BS EN/EN61000-3-3;GB17743 and GB17625.1, EAC TP TC 020 | ||||||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level(surge immunity Line-Line 2KV); EAC TP TC 020 | ||||||
| Others | MTBF | 2625.4K hrs min. Telcordia SR-332 (Bellcore) ; 247.5K hrs min. MIL-HDBK-217F (25℃) | |||||
| DIMENSION | 195*68*39.5mm (L*W*H) | ||||||
| PACKING | 1.03Kg; 12pcs/ 13.4Kg/ 0.71CUFT | ||||||
Meanwell NPF-200 Series Features
l Plastic housing with classⅡand PFC design
l Constant Voltage + Constant current mode output
l Standby power consumption <0.5W
l IP67 rating for indoor or outdoor installations
l Dimming function: 3 in 1 Dimming (C.V Dim. only) to adjust output voltage level
l Flicker free Design
l Typical lifetime >50000hours
l 5 years warranty
Meanwell NPF-200 Series Applications
l LED panel lighting
l LED downlight
l LED decorative lighting
l Industrial lighting
l Sign board and back light
l Poultry lighting (C.V Dimming)
l LED strip lighting (C.V Dimming) Agricultural lighting (C. V Dimming)
l Type “HL" for use in Class l, Division 2 hazardous (Classified) location

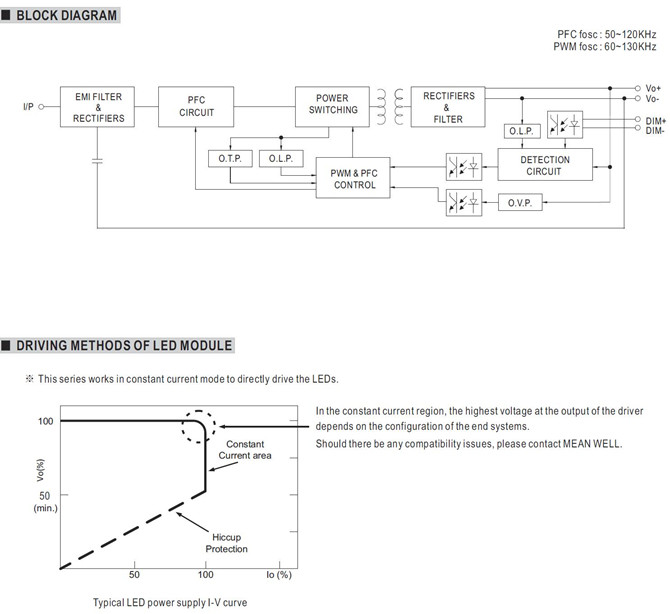

Meanwell NPF-200 Series Mechanical Diagram
