QP-320D
110.26

QP-320D

$110.26

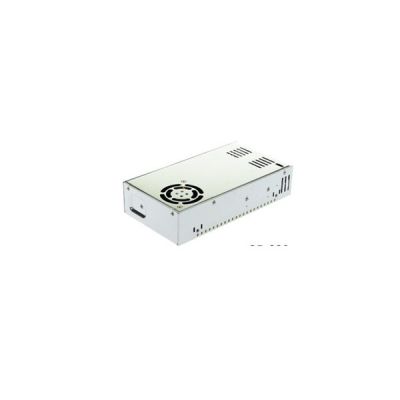

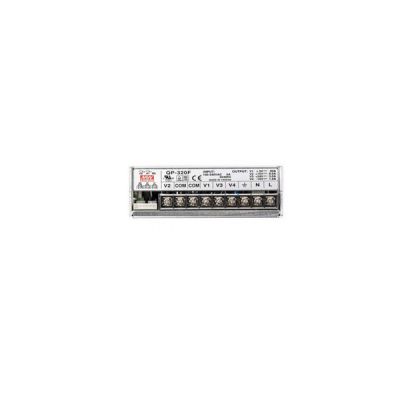

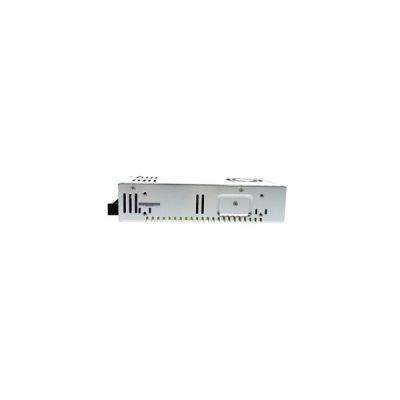

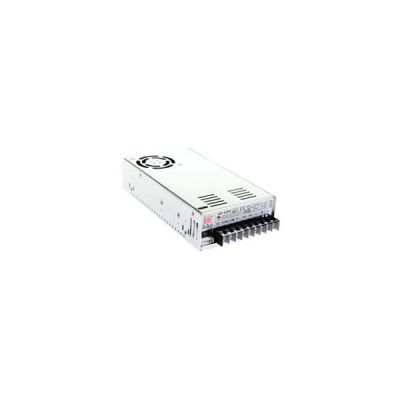

Meanwell 320W Quad Output with PFC Function

- +
Availability:In stock
SKU Meanwell QP-320D
Brand Meanwell
Details

Meanwell QP-320D is AC/DC Enclosed Switching Power Supply. It is equipped with Built-in active PFC function and Built-in remote sense function for CH1 & CH2. CH1 & CH2 can be adjusted from -5% ~ +10%. QP-320D offers the complete protections like Short circuit /Overload/Over voltage/Over temperature. Thanks to 20A peak load capability for 24V channel and 100% full load burn-in test, it could work under low temperature with full load and extremely low no load power consumption. Additionally, it is complied with the international safety regulations and meet the worldwide energy requirements. Considering its high efficiency, long longevity and high reliability, Meanwell QP-320D functions as a high price-to-performance power supply solution for various fields.

Meanwell QP-320D Specifications

Meanwell QP-320D Specifications

Model QP-320D
Output OUTPUT NUMBER CH1 CH2 CH3 CH4
DC VOLTAGE 5V 12V 24V -12V
RATED CURRENT 20A 10A 3A 2A
CURRENT RANGE 2.5-20A 0-10A 0.2-5A 0.2-2A
RATED POWER 316W
PEAK CURRENT 20A 10A 20A 2A
RIPPLE & NOISE (max.) mVp-p 100 150 150 150
VOLTAGE ADJ. RANGE CH1,2:+10,-5%
VOLTAGE TOLERANCE ±3% ±3% +10.-6% ±10%
LINE REGULATION ±1% ±2% ±2% ±3%
LOAD REGUL ATION ±2% ±3% ±6% ±8%
SETUP, RISE TIME 800ms,50ms/230VAC 3000ms,50ms/115VAC at full load
HOLD UP TIME (Typ.) 16ms at full load
Input VOLTAGE RANGE 90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR PF>0.95/230VAC PF>0.98/115VAC at full load
EFFICIENCY (Typ.) 83%
AC CURRENT (Typ.) 4A/115VAC 2A/230VAC
INRUSH CURRENT (Typ.) 25A/115VAC 45A/230VAC
LEAKAGE CURRENT <2mA / 240VAC
PROTECTION OVERLOAD 105 ~ 150% rated output power
Protection type : Fold back current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE CH1:5.75 ~ 6.75V CH2:13.8 ~ 16.2V
Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE(OPTION Shut down o/p voltage, recovers automatically after temperature goes down
FUNCTION POWER GOOD / POWER FAIL 10ms/1ms
ENVIRONMENT WORKING TEMP. -10 ~ +70 (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -20 ~ +85, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.03%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY &EMC SAFETY STANDARDS UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, light industry level, criteria A, EAC TP TC 020
Others MTBF 213.5K hrs min. MIL-HDBK-217F (25)
DIMENSION 215*115*50mm (L*W*H)
PACKING 1.2Kg; 12pcs/15.4Kg/0.9CUFT

Meanwell QP-320D Features

l  3 years warranty

l  Universal AC input 1 Full range

l  Built-in active PFC function, PF>0.95

l  CH1 & CH2 can be adjusted from -5% ~ +10%

l  With power good and fail signal output

l  Built-in remote sense function for CH1 & CH2

l  LED indicator for power on

l  100% full load burn-in test

l  20A peak load capability for 24V channel

l  Protections: Short circuit /Overload/Over voltage/Over temperature

Meanwell QP-320D Features

Meanwell QP-320D Mechanical Diagram

Meanwell QP-320D Mechanical Diagram
