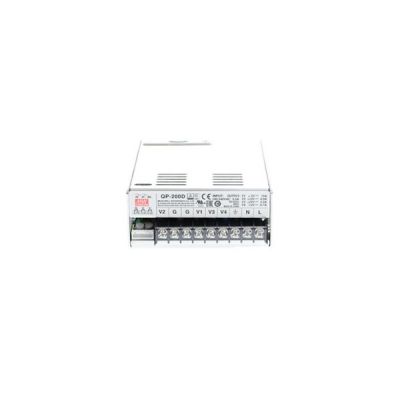

Meanwell 200W Quad Output with PFC Function

- +
Availability:In stock
SKU Meanwell QP-200-3A
Brand Meanwell
Details

Meanwell QP-200-3A is AC/DC Enclosed Switching Power Supply with Built-in active PFC function and Built-in remote sense function for CH1,2.This model is equipped with complete protections such as Short circuit, Overload, Over voltage and Over temperature. Because of forced air cooling by built-in DC fan, and 100% full load burn-in test, QP-200-3A could operate under low temperature with full load, delivering an extremely low no load power consumption. What’s more, QP-200-3A is complied with the international safety regulations and meet the worldwide energy requirements. Thanks to high efficiency, long life and high reliability, Meanwell QP-200-3A serves as a high price-to-performance power supply solution for various applications.

Meanwell QP-200-3A Specifications

Meanwell QP-200-3A Specifications

Model QP-200-3A
Output OUTPUT NUMBER CH1 CH2 CH3 CH4
DC VOLTAGE 5V 3.3V 12V -5V
RATED CURRENT 15A 15A 6A 0.7A
CURRENT RANGE 3-20A 0-20A 0.5-8A 0-1A
RATED POWER 200W
PEAK CURRENT 20A 20A 8A 1A
RIPPLE & NOISE (max.) mVp-p 100 100 150 150
VOLTAGE ADJ. RANGE CH1: 4.75 ~ 5.5V CH2: 3.14 ~ 3.63V
VOLTAGE TOLERANCE ±3% ±3% +8,-10% ±6%
LINE REGULATION ±1% ±1% ±2% ±1%
LOAD REGUL ATION ±2% ±2% ±6% ±2%
SETUP, RISE TIME 800ms, 50ms at full load
HOLD UP TIME (Typ.) 24ms at full load
Input VOLTAGE RANGE 90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR PF>0.95/230VAC PF>0.98/115VAC at full load
EFFICIENCY (Typ.) 72%
AC CURRENT (Typ.) 3.5A/115VAC 2A/230VAC
INRUSH CURRENT (Typ.) COLD START 30A
LEAKAGE CURRENT <2mA / 240VAC
PROTECTION OVERLOAD 105 ~ 150% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE CH1:5.75 ~ 6.75V CH2:3.8 ~ 4.4V
Shut down o/p voltage, recovers automatically after temperature goes down
OVER TEMPERATURE(OPTION Shut down o/p voltage, recovers automatically after temperature goes down
FUNCTION POWER GOOD / POWER FAIL 10ms/1ms
ENVIRONMENT WORKING TEMP. -10 ~ +60 (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -20 ~ +85, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.03%/ (0~50)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY &EMC SAFETY STANDARDS UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, light industry level, criteria A, EAC TP TC 020
Others MTBF 160.6K hrs min. MIL-HDBK-217F (25)
DIMENSION 215*115*50mm (L*W*H)
PACKING 1.2Kg; 12pcs/15.4Kg/0.9CUFT

Meanwell QP-200-3A Features

l  3-year warranty

l  100% full load burn-in test

l  Universal AC input/Full range

l  Forced air cooling by built-in DC fan

l  Built-in active PFC function, PF>0.95

l  CH1,2 can be adjustable from -5~+1 0%

l  Built-in remote sense function for CH1,2

l  With power good and fail signal output(Optional)

l  Fixed switching frequency at PFC:67KHz PWM:134KHz

l  CH4 can set to positive after consult us before delivery(Optional)

l  Protections: Short circuit/Overload/Over voltage/Over temperature

Meanwell QP-200-3A Features

Meanwell QP-200-3A Mechanical Diagram

Meanwell QP-200-3A Mechanical Diagram
