PWM-60-24 IoT
25.36

PWM-60-24 IoT

$25.36

Meanwell 60W Wireless Lighting Constant Voltage LED Driver with 24V2.5A60Wup to 4kHz16ms/115VAC or 230VAC

- +
Availability:In stock
SKU Meanwell PWM-60-24 IoT
Brand Meanwell
Details

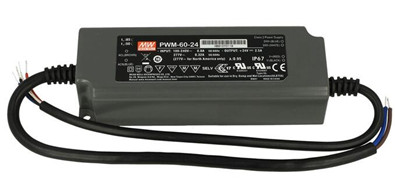

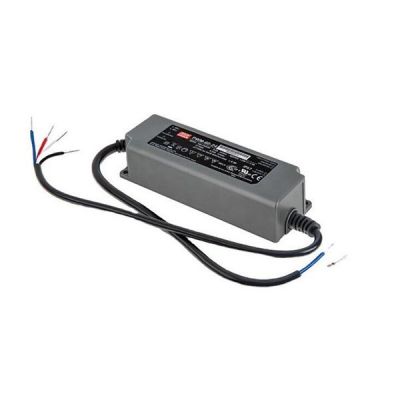

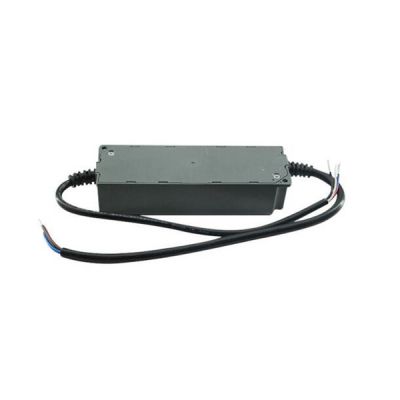

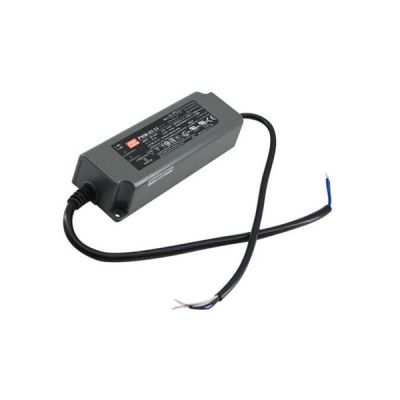

Meanwell PWM-60-24 IoT is blue-tooth ready 60W LED AC/DC LED driver with 24V2.5A60Wup to 4kHz16ms/115VAC or 230VAC. The item stands out with constant voltage mode with PWM style output, which can maintain the brightness homogeneity when driving all kinds of LED strips and constant voltage LED bulbs. It is able to operate from 90~ 305 VAC with different rated voltage ranging between 12V and 48V. As the efficiency reaches high up to 90% via fanless design, PWM-60-24 could work for -20℃~+85℃ case temperature through free air convection. Additionally, the product is rated with IP67 ingress protection level, which is suitable for dry, damp or wet locations. Moreover, PWM-60-24 IoT is also supplied with dimming function that varies the duty cycle of the output, providing great flexibility for LED strips applications. The DALI control function is available according to the specifications of IEC62386-101/102/207, and can be used with current DALI compliant controllers on the market. Thanks to its longevity, high efficiency and outstanding reliability, Meanwell PWM-60-24 IoT is an ideal solution for the optimal design flexibility for LED lighting system and upgrade lighting to be an intelligent lighting system.

Meanwell PWM-60-24 IoT price and specs Wireless Lighting Constant Voltage Driver PWM-60-12 PWM-60-24 PWM-60-48 YCICT

Meanwell PWM-60-24 IoT Encoding

PWM Series Name
60 Rated Wattage
24 Rated Output Voltage (12/24/48V)
BLE Built-in wireless module brand and solution
Brand & Solution Wireless Standard
Casambi BLE Bluetooth low energy mesh 2.4GHz protocol By Request
Tuya TY1 Bluetooth low energy mesh 2.4GHz protocol By Request
Silvair SVA Bluetooth low energy mesh 2.4GHz protocol By Request

Meanwell PWM-60-24 IoT Specifications

Model PWM-60-24
OUTPUT DC VOLTAGE 24V
RATED CURRENT 2.5A
RATED POWER 60W
PWM FREQUENCY (Typ.) up to 4kHz
SETUP, RISE TIME
HOLD UP TIME (Typ.) 16ms/115VAC or 230VAC
INPUT VOLTAGE RANGE 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR PF>0.97/115VAC, PF>0.95/230VAC, PF>0.92/277VAC @ full load
(Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section
TOTAL HARMONIC DISTORTION THD< 20%(@load>=60%/115VAC, 230VAC; @load>=75%/277VAC)
(Please refer to “TOTAL HARMONIC DISTORTION” section)
EFFICIENCY (Typ.) 89.00%
AC CURRENT 0.8A / 115VAC 0.4A / 230VAC 0.32A / 277VAC
INRUSH CURRENT(Typ.) COLD START 50A(twidth=270μ s measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER 9 units (circuit breaker of type B) / 16 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT <0.25mA / 277VAC
NO LOAD POWER CONSUMPTION <1W
PROTECTION OVERLOAD 108 ~ 130% rated output power
Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 28-34V
Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE Shut down o/p voltage, re-power on to recover
ENVIRONMENT WORKING TEMP Tcase=-20 ~ +85 (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP Tcase=+85
WORKING HUMIDITY 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +80, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
FUNCTION WIRELESS PROTOCOL Bluetooth low energy 2.4GHz protocol
DIMMING RANGE 0 ~ 100% Minimum dimming level:1%,dim to off
WIRELESS DISTANCE Up to 20m
DIMMING Please refer to “DIMMING OPERATION” section
SAFETY&EMC SAFETY STANDARDS UL8750( type ”HL” ), UL879( for 12V,24V Blank Type only), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1,
BS EN/EN61347-2-13 independent,BS EN/EN62384, IP67,BIS IS15885(for 12,24,48 Blank Type only), EAC TP TC 004, GB19510.1,GB19510.14 approved; Design refer to BS EN/EN60335-1
WITHSTAND VOLTAGE I/P-O/P:3.75KVAC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@load>=60%) ; BS EN/EN61000-3-3,GB17743
and GB17625.1,EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Line 2KV),EAC TP TC 020
Others MTBF 2938.9K hrs min. Telcordia SR-332 (Bellcore) ; 299.8K hrs min. MIL-HDBK-217F (25)
DIMENSION 150*53*35mm (L*W*H)
PACKING 0.49Kg;30pcs/15.7Kg/1.0CUFT

Meanwell PWM-60-24 IoT Features

l  Bluetooth Mesh Dimming Function

l  Plastic housing with class ll design

l  Built-in active PFC function

l  Class 2 power unit

l  Fully encapsulated with IP67 level

l  Typical lifetime>50000 hours and 5 years warranty

l  Constant voltage PWM style output with frequency up to 4KHz compliant IEEE1 789-2015 no risk

Meanwell PWM-60-24 IoT price and specs Wireless Lighting Constant Voltage Driver PWM-60-12 PWM-60-24 PWM-60-48 YCICT

Meanwell PWM-60-24 IoT Applications

l  LED strip lighting

l  Indoor LED lighting

l  LED decorative lighting

l  LED architecture lighting

l  Intelligent lighting control

l  Type HL for use in Class l, Division 2 hazardous (Classified) location

Meanwell PWM-60-24 IoT Mechanical Diagram

Meanwell PWM-60-24 IoT price and datasheet Wireless Lighting Constant Voltage Driver PWM-60-12 PWM-60-24 PWM-60-48 YCICT

Meanwell PWM-60-24 IoT price and specs 60W Wireless Lighting Constant Voltage Driver PWM-60-12 PWM-60-24 PWM-60-48 YCICT
