Meanwell 60W Constant Voltage PWM Output LED Driver with 12V5A60W1.47kHz for Blank/DA-Type, 2.5kHz for DA2-Type

- +
Availability:In stock
SKU Meanwell PWM-60-12
Brand Meanwell
Details

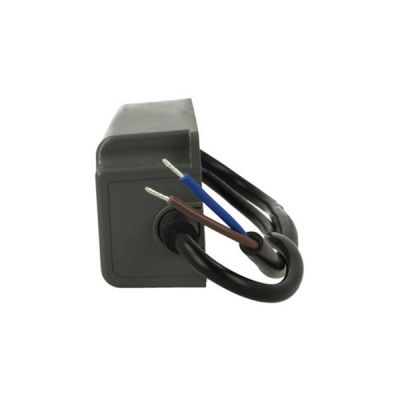

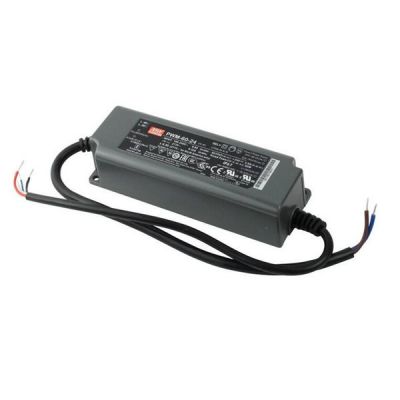

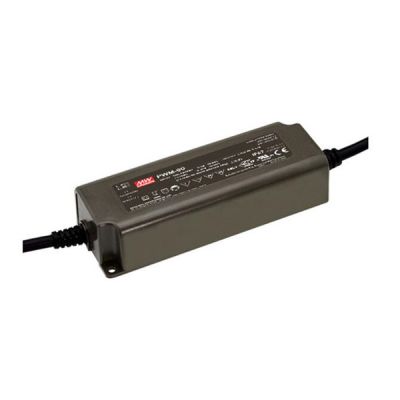

Meanwell PWM-60-12 is 60W LED AC/DC LED driver with 12V5A60W1.47kHz for Blank/DA-Type, 2.5kHz for DA2-Type. The product features the constant voltage mode with PWM style output, and it could maintain the brightness homogeneity when driving all kinds of LED strips. Meanwhile, PWM-60-12 operates from 90~ 305VAC with rated voltage 12V. As the efficiency reaches high up to 90% based on fanless design, it is ableto work for -40℃~ +85℃ case temperature under free air convection. This DALI control function is designed in accordance with the specifications of IEC62386-101/102/207, and can be used with current DALI compliant controllers on the market. In addition, the unit is rated with IP67 ingress protection level and dimming function that varies the duty cycle of the output. Due to its longevity, high efficiency, and excellent quality, Meanwell PWM-60-12 offers great flexibility for LEDstrips applications for dry, damp or wet locations.

Meanwell PWM-60-12 Price and Specs 60W Constant Voltage PWM Output LED Driver PWM-60-12/24/36/48 with PFC and IP67 YCICT

Meanwell PWM-60-12 Encoding

PWM Series Name
60 Rated Wattage
12 Rated Output Voltage (12/24/36/48V)
Blank IP67 3 in 1 dimming function (O~1OVdc,1OV PWM signal and resistance )
DA IP67 DALI control technology.(for 12V/24V with DA type only ) In stock
DA2 IP67 DALI-2 control technology.(for 12V/24V with DA2 type only ) In stock

Meanwell PWM-60-12 Specifications

Model PWM-60-12
OUTPUT DC VOLTAGE 12V
RATED CURRENT 5A
RATED POWER 60W
DIMMING RANGE 0 ~ 100%
PWM FREQUENCY (Typ.) 1.47kHz for Blank/DA-Type, 2.5kHz for DA2-Type
SETUP, RISE TIME 500ms, 80ms/ 115AC or 230VAC
HOLD UP TIME (Typ.) 16ms/115VAC or 230VAC
Input VOLTAGE RANGE 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR PF>0.97/115VAC, PF>0.95/230VAC, PF>0.92/277VAC @ full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section
TOTAL HARMONIC DISTORTION THD< 20%(@load>=60%/115VAC, 230VAC; @load>=75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION” section)
EFFICIENCY (Typ.) 86.00%
AC CURRENT 0.8A / 115VAC 0.4A / 230VAC 0.32A / 277VAC
INRUSH CURRENT(Typ.) COLD START 50A(twidth=270μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER 9 units (circuit breaker of type B) / 16 units (circuit breaker of type C) at 230VAC
NO LOAD POWER CONSUMPTION <0.5W
LEAKAGE CURRENT <0.25mA / 277VAC
PROTECTION OVERLOAD 108 ~ 130% rated output power
Hiccup mode, recovers automatically after fault condition is removed
SHORT CIRCUIT Shut down o/p voltage, re-power on to recover(except for DA2-type) Hiccup mode,recovers automatically after fauit condition is removed (only for DA2-type)
OVER VOLTAGE 15-17V
Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE Shut down o/p voltage, re-power on to recover
ENVIRONMENT WORKING TEMP. Tcase=-40 ~ +85 (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP. Tcase=+85
WORKING HUMIDITY 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +80, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMC SAFETY STANDARDS UL8750( type ”HL” )( except for DA-Type), UL879( for 12V,24V Blank Type only), CSA C22.2 No. 250.13-12;
ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384, IP67,BIS IS15885(for 12,24,
48 Blank Type only), EAC TP TC 004, GB19510.1,GB19510.14 approved; Design refer to BS EN/EN60335-1;
According to BS EN/EN61347-2-13 appendix J suitable for emergency installations(EL)(AC Input:
100-240Vac)(for DA2-Type only)
DALI STANDARDS IEC62386-101, 102, 207,251 for DA/DA2-Type only,Device type 6(DT6)
WITHSTAND VOLTAGE I/P-O/P:3.75KVAC; I/P-DA:1.5KVAC; O/P-DA:1.5KVAC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@load>=60%) ; BS EN/EN61000-3-3,GB17743 and GB17625.1,EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Line 2KV),EAC TP TC 020
Others MTBF 2626.6K hrs min. Telcordia SR-332 (Bellcore) ; 227.1K hrs min. MIL-HDBK-217F (25)
DIMENSION 150*53*35mm (L*W*H)
PACKING 0.49Kg;30pcs/15.7Kg/1.0CUFT

Meanwell PWM-60-12 Features

l  Constant Voltage PWM style output

l  Built-in active PFC function and class Il/2 design

l  No load power consumption <0.5W

l  Fully encapsulated with IP67 level

l  Function: 3 in 1 dimming (dim-to-off); DALI/DALI-2

l  Minimum dimming level 0.2% for DALI type

l  Typical lifetime> 50000 hours and 5 years warranty

l  Emergency lighting application is available according to IEC61347-2-13

Meanwell PWM-60-12 Price and Specs 60W Constant Voltage PWM Output LED Driver PWM-60-12/24/36/48 PFC IP67 Class 2 YCICT

Meanwell PWM-60-12 Applications

l  LED strip lighting

l  Indoor LED lighting

l  LED decorative lighting

l  LED architecture lighting

l  Industrial lighting

l  Type "HL" for use in Class l, Division 2 hazardous (Classified) location

Meanwell PWM-60-12 Mechanical Diagram

Meanwell PWM-60-12 Price and Specs 60W Constant Voltage PWM Output LED Driver PWM-60-12/24/36/48 with PFC IP67 YCICT

Meanwell PWM-60-12 Price and Datasheet 60W Constant Voltage PWM Output LED Driver PWM-60-12/24/36/48 with PFC IP67 YCICT
