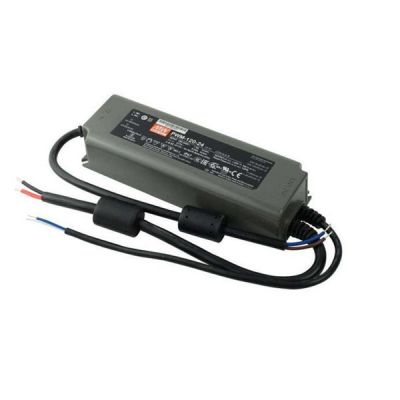

PWM-120-48
30.96

PWM-120-48

$30.96

Meanwell 120W Constant Voltage PWM Output LED Driver with 48V2.5A120W1.47kHz for Blank/DA-Type, 2.5kHz for DA2-Type

- +
Availability:In stock
SKU Meanwell PWM-120-48
Brand Meanwell
Details

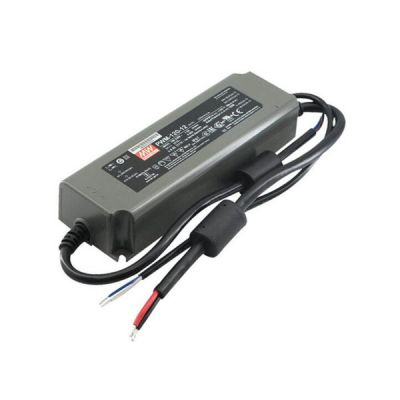

Meanwell PWM-120-48 is 120W AC/DC LED driver with 48V2.5A120W1.47kHz for Blank/DA-Type, 2.5kHz for DA2-Type. The model offers constant voltage mode with PWM style output, which could maintain color temperature and brightness homogeneity when driving all kinds of LED strips. Since the efficiency reaches high up to 90.5% under fanless design and low no-load power consumption below 0.5W. PWM-120-48 is able to work for -40℃~ +90℃ case temperature through free air convection. Furthermore, the product is waterproof with housing made of 94V-0 flame-retardant plastic, and completely sealed internally with silicone, making LED driver suitable for vibration resistance up to 5G and heat dissipation. Additionally, it is rated with IP67 ingress protection level and dimming function that varies the duty cycle of the output. As a result of longevity, high efficiency, and excellent quality, Meanwell PWM-120-48 is ideal for flexible installation in applications such as LED strip lighting, indoor LED lighting, LED decorative lighting, and LED architectural lighting.Meanwell PWM-120-48 Price and Specs Constant Voltage 120W PWM Output LED Driver PWM-120-12/24/36/48 IP67 PFC YCICT

Meanwell PWM-120-48 Encoding

PWM Series Name
120 Rated Wattage
48 Rated Output Voltage (12/24/36/48V)
Function Options
Blank IP67 3 in 1 dimming function (0~10Vdc,10V PWM signal and resistance )
DA IP67 DALI control technology.(for 12V/24V with DA type only ) In stock
DA2 IP67 DALI-2 control technology.(for 12V/24V with DA2 type only ) In stock

Meanwell PWM-120-48 Specifications

Model PWM-120-48
OUTPUT DC VOLTAGE 48V
RATED CURRENT 2.5A
RATED POWER 120W
DIMMING RANGE 0 ~ 100%
PWM FREQUENCY (Typ.) 1.47kHz for Blank/DA-Type, 2.5kHz for DA2-Type
SETUP, RISE TIME 500ms, 80ms/ 230VAC or 115VAC
HOLD UP TIME (Typ.) 16ms/230VAC or 115VAC
Input VOLTAGE RANGE 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR PF>0.97/115VAC, PF>0.96/230VAC, PF>0.93/277VAC @ full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION THD< 20%( at load>=60%/115VAC, 230VAC; at load>=75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION” section)
EFFICIENCY (Typ.) 90.50%
AC CURRENT 1.3A / 115VAC 0.65A / 230VAC 0.55A / 277VAC
INRUSH CURRENT(Typ.) COLD START 60A (twidth=520μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER 4 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC
NO LOAD POWER CONSUMPTION No load power consumption<0.5w for blank-type;standby power consumption<0.5W for DA-type/DA2-type
LEAKAGE CURRENT <0.25mA / 277VAC
PROTECTION OVERLOAD 108 ~ 130% rated output power
Hiccup mode, recovers automatically after fault condition is removed
SHORT CIRCUIT 12V/24V hiccup mode and 36V/48V shut down mode(including DA-type/except for DA2-type)
Hiccup mode,recovers automatically after fault condition is removed (only for DA2-type)
OVER VOLTAGE 54-60V
Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE Shut down o/p voltage, re-power on to recove
ENVIRONMENT WORKING TEMP. Tcase=-40 ~ +90 (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP. Tcase=+90
WORKING HUMIDITY 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +80, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 45,except 0 ~ 40 for 12V)
VIBRATION 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMC SAFETY STANDARDS UL8750( type ”HL” )(except for 12DA type), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13,
BS EN/EN62384 independent, IP67,BIS IS15885( for PWM-120-12,24 only), EAC TP TC 004,GB19510.1,GB19510.14
approved; Design refer to BS EN/EN60335-1; According to BS EN/EN61347-2-13 appendix J suitable for emergency
installations(EL)(AC Input: 100-240Vac)(for DA2-Type only)
DALI STANDARDS IEC62386-101, 102, 207,251 for DA/DA2-Type only, Device type 6(DT6)
WITHSTAND VOLTAGE I/P-O/P:3.75KVAC; I/P-DA:1.5KVAC; O/P-DA:1.5KVAC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@load>=60%) ; BS EN/EN61000-3-3,GB17743 and
GB17625.1,EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Line 2KV),
EAC TP TC 020
Others MTBF 2243.7K hrs min. Telcordia SR-332 (Bellcore) ; 228.7K hrs min. MIL-HDBK-217F (25)
DIMENSION 191*63*37.5mm (L*W*H)
PACKING 0.97Kg; 15pcs/15.6Kg/0.87CUFT

Meanwell PWM-120-48 Features

l  Fully encapsulated with IP67 level

l  Constant voltage PWM style output

l  Built-in active PFC function and classⅡdesign

l  Minimum dimming level 0.2% for DALI type

l  Typical lifetime> 50000 hours and 5 years warranty

l  Function options: 3 in 1 dimming (dim-to-off); DALI/DALI-2

l  Emergengcy lighting application is available according to IEC61347-2-13

l  No load power consumption <0.5W/ standby power consumption <0.5W(DA/DA2-type)

Meanwell PWM-120-48 Price and Specs Constant Voltage 120W PWM Output LED Driver PWM-120-12/24/36/48 IP67 and PFC YCICT

Meanwell PWM-120-48 Applications

l  Industrial lighting

l  LED strip lighting

l  Indoor LED lighting

l  LED decorative lighting

l  LED architecture lighting

l  Type "HL" for use in class l, division 2 hazardous (classified) location

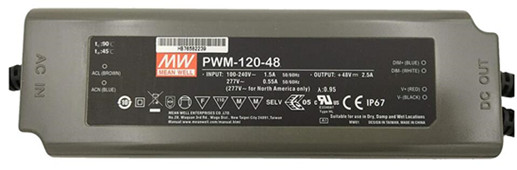

Meanwell PWM-120-48 Mechanical Diagram

Meanwell PWM-120-48 Price and Specs Constant Voltage 120W PWM Output LED Driver PWM-120-12/24/36/48 IP67 PFC YCICT

Meanwell PWM-120-48 Price and datasheet Constant Voltage 120W PWM Output LED Driver PWM-120-12/24/36/48 IP67 PFC YCICT
