PV-SMI-1000B
224.47
Details

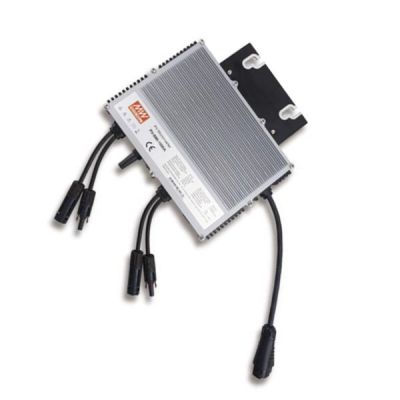

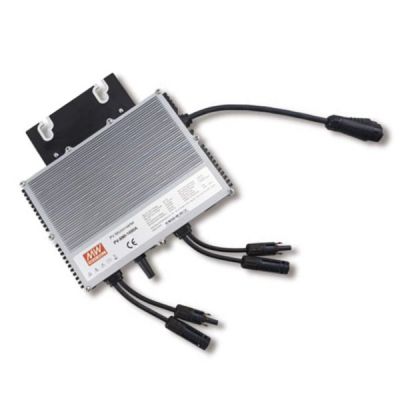

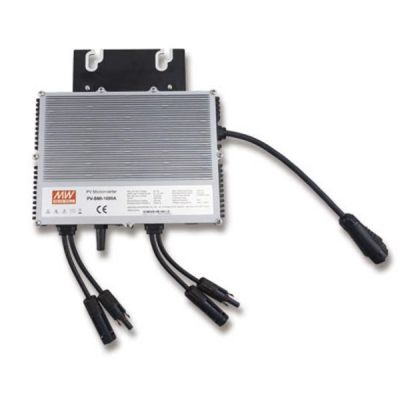

Meanwell PV-SMI-1000 Series is a 1000VA micro-inverter that supports dual-channel input with up to 750W per solar module, compatible with 99% of PV module models on the market. At the same time, equipped with independent MPPT technology, the product achieves 99.5% tracking efficiency to maximize power generation under complex lighting conditions. Featuring built-in PLC/Wi-Fi communication, PV-SMI-1000 enables real-time monitoring via APP/Web interfaces, and offers automatic fault alarm/localization to enhance operational efficiency. Additionally, its standardized plug-and-play QC4 interface ensures "zero professional expertise required" for installation and expansion. With IP67 protection rating, Meanwell PV-SMI-1000 withstands extreme temperatures, humidity, salt spray, and dusty environments, making it adaptable to various photovoltaic systems.
Meanwell PV-SMI-1000 Series Model Specifications
| MODEL | PV-SMI-1000A | PV-SMI-1000B | PV-SMI-1000C | |
| DC INPUT | PV POWER | 2*750W | ||
| MPPT VOLTAGE RANGE | 22-55V | |||
| STARTING VOLTAGE | 24V | |||
| VOLTAGE (MAX.) | 60V | |||
| CURRENT (MAX.) | 2*18A | 2*20A | ||
| AC OUTPUT | POWER (PEAK) | 1000VA | ||
| POWER (CONTINUOUS) | 1000VA | 832VA | 960VA | |
| VOLTAGE | 230V | 208V | 240V | |
| CURRENT | 4.4A | 4A | ||
| POWER FACTOR | >0.99 (Full load) | 0.9 leading---0.9 lagging | ||
| THD (RATED POWER) | <5% | |||
| EFFICIENCY | EFFICIENCY (HIGHEST) | 97.30% | ||
| MPPT EFFICIENCY | >99.5% | |||
| NIGHT POWER CONSUMPTION | 110mW | |||
| ENVIRONMENT | WORKING TEMP | -40-65℃ | ||
| WORKING HUMIDITY | 0-100% | |||
| PROTECTION CLASS | IP67 | NEMA6 | ||
| SAFETY&EMC | SAFETY STANDARDS | IEC 62109-1:2010/EN62109-1:2010,IEC 62109-2:2011/EN62109-2:2011, EN62109-1:2010,EN 62109-2:2011 approved |
||
| WITHSTAND VOLTAGE | I/P-O/P=4KVdc I/P-FG=0.8KVdc O/P-FG=4KVdc | |||
| EMC EMISSION | Parameter | Standard | Test Level | |
| Conducted emission | EN 301489-17V3.2.4, ENIEC61000-6-3:2021 |
Class B | ||
| Radiated emission | EN301489-17V3.2.4, ENIEC61000-6-3:2021 |
Class B | ||
| ELECTROMAGNETIC RESISTANCE | Parameter | Standard | Test Level | |
| ESD | ENIEC61000-6-1:2019, EN 301489-17V3.2.4 |
Level3, 8KV air;Level 2,4KV contact | ||
| RS | ENIEC61000-6-1:2019, EN301489-17V3.2.4 |
Level 3 | ||
| EFT | ENIEC 61000-6-1:2019, EN301489-17V3.2.4 |
Level 2,1KV | ||
| Surge | ENIEC61000-6-1:2019, EN301489-17V3.2.4 |
Level 3,2KV/Line-Line 2KV/Line-Earth | ||
| Conducted | ENIEC61000-6-1:2019, EN301489-17V3.2.4 |
Level 3 | ||
| Magnetic Field | ENIEC 61000-6-1:2019, EN301489-17V3.2.4 |
Level 3 | ||
| OTHERS | DC CONNECTOR TYPE | QC4 | ||
| COMMUNICATION | WiFi (2.4G) | PLC | ||
| WEIGHT | 3.4KG | |||
| DIMENSION | 268*250*46.5mm) | |||
Meanwell PV-SMI-1000 Series Features
l Pure sine wave output (THD <5%)
l MPPT tracking efficiency up to 99.9%
l CEC weighted average efficiency up to 96.5%
l Maximum DC input voltage is 60V
l Equipped with various protections such as GFDI, surge protection
l lp67 protection level
l -40℃ to 65℃ operating temperature
l APP monitoring with built-in WiFi or PLC communication methods
l Real-time control of plant operation status
l Automatic high temperature and fault warrning
l Easy Installation, MC4 Plug &Play
l 10-year warranty (25-year warranty for B/C type)
Meanwell PV-SMI-1000 Series Applications
l Rooftop photovoltaic system
l Balcony energy storage system
l Floating Photovoltaic System
l Small commercial photovoltaic system
Meanwell PV-SMI-1000 Series Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
