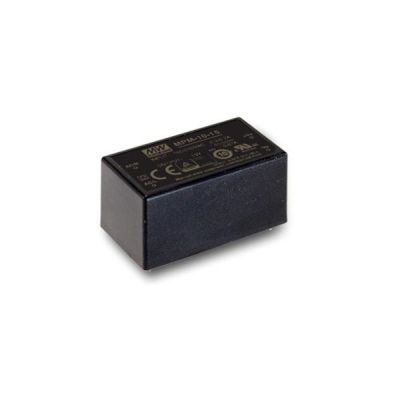

Meanwell 45W AC-DC High Reliable PCB-Mount Green Medical Power Module

- +
Availability:In stock
SKU Meanwell MPM-45
Brand Meanwell
Details

Meanwell MPM-45 Series is a 45W high density and small size (87x52x29. 5mm) AC/DC module type medical power supply. The entire series features Class II (no FG) double insulation, outstanding dissipation, 2 ~ 5G anti-vibration, high EMC performance, 4KV AC isolation, etc. At the same time, it outstands with the operation for 80~264VAC, low no load power consumption less than 0.1 W, and high efficiency up to 92.5%, so as to observe IEC/BS EN/EN60601-1 and ANSI/AAMIES60601-1version three with 2 X MOPP level. Considering its longevity, high reliability, excellent quality, Meanwell MPM-45 Series serves as a very suitable solution for BF (patient contact) type medical device or relevant equipment.

Meanwell MPM-45 Series Features

Meanwell MPM-45 Series Encoding

MPM Series Name
45 Rated Wattage
5 Output Voltage
ST Blank: PCB mounting Style
ST: Screw Terminal Style

Meanwell MPM-45 Series Model Specifications

Model MPM-45-5 MPM-45-12 MPM-45-15 MPM-45-24 MPM-45-48
OUTPUT DC VOLTAGE 5V 12V 15V 24V 48V
CURRENT Peak (10Sec.) 8.8A 4.12A 3.3A 2.1A 1.05A
Convection 8A 3.75A 3A 1.88A 0.94A
RATED POWER Peak (10Sec.) 44W 49.5W 49.5W 50.4W 50.4W
Convection 40W 45W 45W 45.1W 45.1W
RIPPLE & NOISE (max.) 80mVp-p 120mVp-p 120mVp-p 200mVp-p 240mVp-p
VOLTAGE TOL ERANCE  ±2.0% ±2.0% ±2.0% ±2.0% ±2.0%
LINE REGULATION ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
LOAD REGUL .ATION ±1.0% ±1.0% ±0.5% ±0.5% ±0.5%
SETUP, RISE TIME 1000ms, 30ms/230VAC 1000ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.) 50ms/230VAC 12ms/115VAC at full load
INPUT VOLTAGE RANGE 80 ~ 264VAC 113 ~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 88.00% 91.50% 92.50% 92.50% 92.00%
AC CURRENT (Typ.) 1.2A/115VAC 0.6A/230VAC
INRUSH CURRENT(Typ.) COLD START 30A/115VAC 60A/230VAC
LEAKAGE CURRENT Touch current <100μA/264VAC
PROTECTION OVERL OAD 115% ~ 135% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 5.3 ~ 7.2V 12.6-16.2V 15.8-20.3V 25.2-32.4V 50.4-64.8V
Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE Protection type : Shut down o/p voltage, re-power on to recover
ENVIRONMENT WORKING TEMP. -30 ~ +80(Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH non-condensing
STORAGE TEMP. -40 ~ +85
TEMP. COEFFICIENT ±0.03%/(0 ~ 60)
SOLDERING TEMPERATURE 260±5/10sec.max
VIBRATION Blank:10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
ST:10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes
OPERATING ALTITUDE 4000 meters / OVC
SAFETY & EMC SAFETY STANDARDS IEC60601-1, BS EN/EN60601-1, UL ANSI/AAMI ES60601-1(3.1 version), CAN/CSA-C22 3 Edition approved; rd EAC TP TC 004, Design refer to BS EN/EN60335-1(by request)
ISOLATION LEVEL Primary-Secondary: 2xMOPP
WITHSTAND VOLTAGE I/P-O/P:4KVAC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Parameter Standard Test Level
Conducted BS EN/EN55011 (CISPR11) Class B
Radiated BS EN/EN55011 (CISPR11) Class B
Harmonic Current BS EN/EN61000-3-2 Class A
Voltage Flicker BS EN/EN61000-3-3 ------
EMC IMMUNITY BS EN/EN60601-1-2
Parameter Standard Test Level
ESD BS EN/EN61000-4-2 Level 4, 15KV air ; Level 4, 8KV contact
RF field susceptibility BS EN/EN61000-4-3 Level 3, 10V/m( 80MHz~2.7GHz )
Table 9, 9~28V/m( 385MHz~5.78GHz )
EFT bursts BS EN/EN61000-4-4 Level 3, 2KV
Surge susceptibility BS EN/EN61000-4-5 Level 3, 1KV/Line-Line
Conducted susceptibility BS EN/EN61000-4-6 Level 3, 10V
Magnetic field immunity BS EN/EN61000-4-8 Level 4, 30A/m
Voltage dip, interruption BS EN/EN61000-4-11 100% dip 1 periods, 30% dip 25 periods,
100% interruptions 250 periods
OTHERS MTBF 563.44Khrs min. MIL-HDBK-217F (25); 1530.14Khrs min. Telcordia TR/SR-332 (Bellcore) (25
DIMENSION PCB mounting style : 87*52*29.5mm (L*W*H) Screw terminal style : 109*52*33.5mm (L*W*H)
PACKING PCB mounting style : 0.185Kg;60pcs/12.1Kg/0.94CUFT Screw terminal style :0.206Kg;50pcs/11.3Kg/0.56CUFT

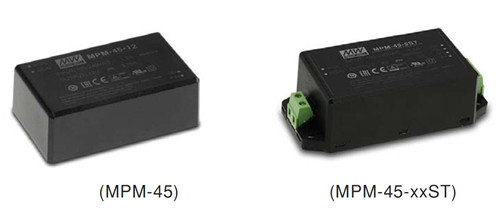

Meanwell MPM-45 Series Features

l  3.43"x2.05" compact size

l  PCB chassis or screw terminal mounting version

l  Medical safety approved (2 X MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601 -1

l  Suitable for BF application with appropriate system consideration

l  No load power consumption<0. 1W

l  Extremely low leakage current

l  Wide operating temp. range -30 ~ +80℃

l  EMI Class B without additional components

l  lsolation Class Ⅱ

l  Protections: Short circuit/Overload/Over voltage

l  No minimum load required

l  Operating altitude up to 4000 meters

l  50W peak (10 sec.)

l  3 years warranty

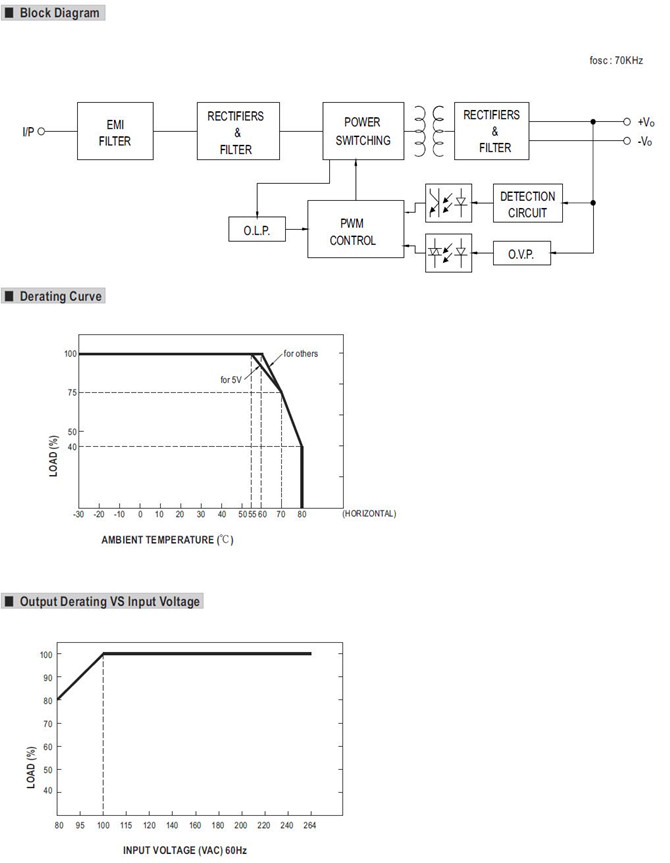

Meanwell MPM-45 Series Features

Meanwell MPM-45 Series Applications

l  Portable medical device

l  Mobile clinical workstation

l  Medical computer monitor

l  Medical examination instrument

Meanwell MPM-45 Series Applications

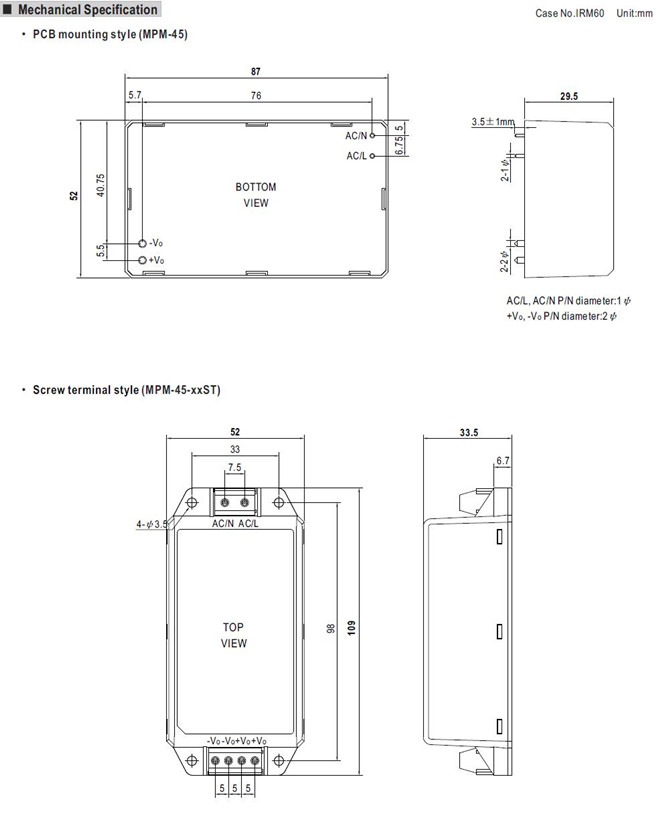

Meanwell MPM-45 Series Mechanical Diagram

Meanwell MPM-45 Series Applications

Meanwell MPM-45 Series Applications
