PSC-160B
42.36

PSC-160B

$42.36

Meanwell 160W Single Output with Battery Charger (UPS Function) with  CH1CH227.6V27.6V3.8A2A0-5.8A160W240mVp-pCH1:24-29V±1.0%±0.5%±0.5%

- +
Availability:In stock
SKU Meanwell PSC-160B
Brand Meanwell
Details

Meanwell PSC-160B is 160W Single Output with Battery Charger (UPS Function) with CH1CH227.6V27.6V3.8A2A0-5.8A160W240mVp-pCH1:24-29V. The product is designed in 6"x3" compact PCB size with thorough alarm features, including AC OK and battery low signaling. At the same time, it allows the universal input range between 90V AC and 264VAC with the built-in PFC function. Except for the primary output, there is a charger output with the smaller rated current offering the backup power supply application the security access systems need. Additionally, PSC-160B delivers high efficiency reaching up to 90%, therefore, it could operate with air convection under -20℃ through 70℃. Moreover, Meanwell PSC-160B is equipped with various protection functions such as Short circuit, Overload and Over voltage, and the relay contact is provided to facilitate users' system designs. PSC-160B is available in the PCB type or the enclosed type with L-Bracket and cover. Thanks to its excellent quality, high efficiency and outstanding reliability, Meanwell PSC-160B is a high price-to-performance power supply solution for various industrial applications in harsh working environments.

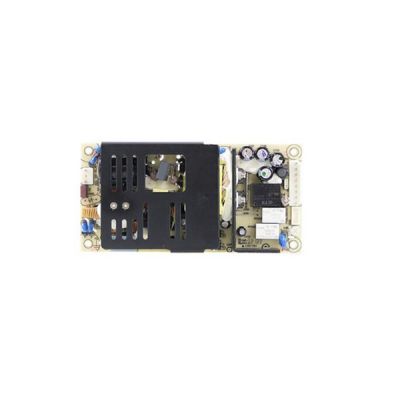

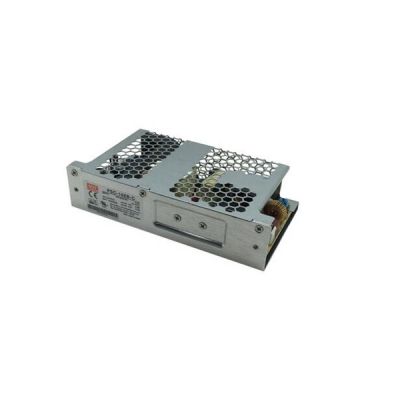

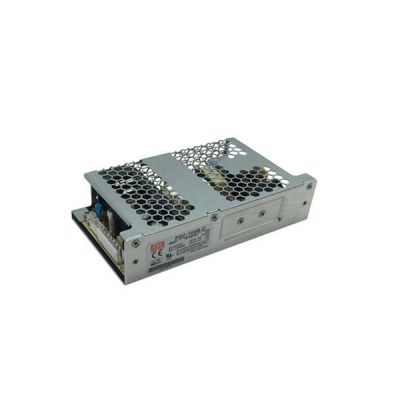

Meanwell PSC-160B

Meanwell PSC-160B Encoding

PSC Series Name
160 Output wattage
B Output Voltage
C Type
Blank PCB Type
-C Enclosed Type

Meanwell PSC-160B Specifications

Model PSC-160B
OUTPUT OUTPUT NUMBER CH1 CH2
DC VOLTAGE 27.6V 27.6V
RATED CURRENT 3.8A 2A
CURRENT RANGE 0-5.8A ----
RATED POWER 160W
RIPPLE & NOISE (max.) 240mVp-p ----
VOLTAGE ADJ. RANGE CH1:24-29V
VOLTAGE TOL ERANCE  ±1.0% ----
LINE REGULATION ±0.5% ----
LOAD REGULATION ±0.5% ----
SETUP, RISE TIME 2000ms, 30ms/230VAC 2000ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.) 40ms/230VAC 40ms/115VAC at full load
INPUT VOLTAGE RANGE 90 ~ 264VAC 127 ~370VDC
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR (Typ.) PF≧0.95/230VAC PF≧0.98/115VAC at full load
EFFICIENCY (Typ.) 90.00%
AC CURRENT (Typ.) 2.5A/115VAC 1.5A/230VAC
INRUSH CURRENT(Typ.) COLD START 35A/115VAC 70A/230VAC
LEAKAGE CURRENT <1mA / 240VAC
PROTECTION OVERL OAD 105 ~ 150% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE CH1:28.98 ~ 37.26V
Protection type : Shut down o/p voltage, re-power on to recover
BATTERY CUT OFF 20±1V
FUNCTION AC OK Relay contact output, ON : AC OK ; OFF : AC Fail ; Max. rating : 30V / 1A
BATTERY LOW Relay contact output, OFF : Battery OK ; ON : Battery Low ; Max. rating : 30V / 1A
Battery low voltage : < 22V
ENVIRONMENT WORKING TEMP. -20 ~ +70 (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -20 ~ +85, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0~50) on CH1 output
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC SAFETY STANDARDS  UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE I/P-O/P:3KVAC I/P-FG:2.0KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMS IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, light industry level, EAC TP TC 020
OTHERS MTBF 2005.3K hrs min. Telcordia SR-332 (Bellcore) ; 257.1K hrs min. MIL-HDBK-217F (25)
DIMENSION PCB:152.4*76.2*32mm (L*W*H) ; Enclosed type:155.4*85*37mm (L*W*H)
PACKING PCB:0.35Kg;42pcs/15.7Kg/1.02CUFT ; Enclosed type: 0.45Kg;32pcs/15.4Kg/0.83CUFT

Meanwell PSC-160B Features

l  2 years warranty

l  6"x3" compact PCB size

l  Cooling by free air convection

l  100% full load burn-in test

l  Universal AC input/Full range

l  Built-in active P FC function

l  Protections: Short circuit/Overload/Over voltage

l  Relay contact signal output for AC OK and Battery Low

l  Models with L-Bracket and cover available (PSC-160x-C, x=A,B)

l  Battery low protection/Battery reverse polarity protection by fuse

Meanwell PSC-160B Features

Meanwell PSC-160B Applications

l  Security system

l  Emergency lighting system

l  Alarm system

l  UPS system

l  Central monitoring system

l  Access systems

Meanwell PSC-160B Mechanical Diagram

Meanwell PSC-160B Mechanical Diagram

Meanwell PSC-160B Mechanical Diagram
