Meanwell 45W Single Output LED Power Supply with 15V11.25-15V3A0-3A45W2.4Vp-p14.5-16.2V

- +
Availability:In stock
SKU Meanwell PLN-45-15
Brand Meanwell
Details

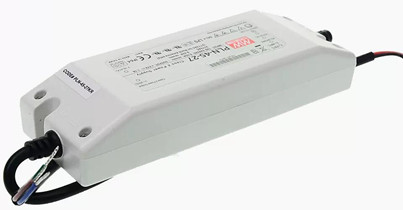

Meanwell PLN-45-15 is 45W Single Output LED Power Supply with 15V11.25-15V3A0-3A45W2.4Vp-p14.5-16.2V. The item offers dustproof/waterproof plastic insulated enclosure with power factor correction exchange. Meanwhile, PLN-45-15 complies with UL1310 class 2 low power energy regulations and has output power supply less than 100VA or 5A under any conditions, greatly reducing the risk of electric shock technicians may encounter. What’s more, the high dust and water resistance design protects the electronic components inside from the threat of dust and moisture, satisfying the application requirements of high humidity environments. Furthermore, PLN-45-15 adopts single-stage PFC architecture in the circuit design to achieve high PF value in the most economical way and meet the Class C class of the harmonic current requirements of the EU EN61000-3-2. In addition, the highest efficiency can reach 87.5%, so it can only use natural air cooling and heat dissipation to work at -30℃~+50°C. The built-in standard functions include 277VAC input voltage capability, short circuit protection, overload protection, over voltage protection and over temperature protection, etc., and the input and output mode is provided with 18AWG power cord, which is convenient for users to flexibly assemble in various systems or working situations. PLN-45-15 has also passed TUV/UL/CUL/CE and other international certifications, including UL1310, UL879 SAM list, EN61347-1, EN61347-2-13 and other lighting related regulations

Meanwell PLN-45-15 Price and Specs Single Output LED Power Supply PLN-45-12/15/20/24/27/36/48 PFC IP64 LPS 45W YCICT

Meanwell PLN-45-15 Specifications

Model PLN-45-15
OUTPUT DC VOLTAGE 15V
CONSTANT CURRENT REGION 11.25-15V
RATED CURRENT 3A
CURRENT RANGE 0-3A
RATED POWER 45W
RIPPLE & NOISE (max.) 2.4Vp-p
VOLTAGE ADJ. RANGE 14.5-16.2V
Can be adjusted by internal potentiometer SVR1
CURRENT ADJ. RANGE 3% ~ -25%. Can be adjusted by internal potentiometer SVR2
VOLTAGE TOLERANCE ±10%
LINE REGULATION ±3.0%
LOAD REGULATION ±5.0%
SETUP TIME 500ms / 230VAC 1200ms / 115VAC at full load
INPUT VOLTAGE RANGE 90 ~ 295VAC 127 ~ 417VDC
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR (Typ.) PF>0.92/115VAC, PF>0.9/230VAC, PF>0.9/277VAC at full load (Please refer to "Power Factor Characteristic" curve)
TOTAL HARMONIC DISTORTION  THD< 20% when output loading>=75% at 115VAC/230VAC input and output loading>=80% at 277VAC input
EFFICIENCY (Typ.) 85.00%
AC CURRENT (Typ.) 0.55A/115VAC 0.275A/230VAC 0.22A/277VAC
INRUSH CURRENT(Typ.) COLD START 35A (twidth=50μs measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER 42 units (circuit breaker of type B) / 42 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT <0.75mA / 240VAC
PROTECTION OVER CURRENT 95 ~ 110%
Protection type : Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT Hiccup mode, recovers automatically after fault condition is removed.
OVER VOLTAGE 17.5-21V
Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE Shut down o/p voltage, recovers automatically after temperature goes down
ENVIRONMENT WORKING TEMP -30 ~ +50 (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +80, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY&EMC SAFETY STANDARDS UL879, UL1310, UL8750, CSA C22.2 No. 207-M89(except for 48V), TUV BS EN/EN61347-1, BS EN/EN61347-2-13 independent, CAN/CSA C22.2 No. 223-M91(except for 48V), CSA C22.2 No. 250.0-08(except for 48V), EAC TP TC 004, GB19510.1,GB19510.14, IP64 approved, design refer to UL60950-1
WITHSTAND VOLTAGE I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (>=75% load) ; BS EN/EN61000-3-3;GB17743 and GB17625.1,EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level, EAC TP TC 020
Others MTBF 3444.5K hrs min. Telcordia SR-332 (Bellcore) ; 417.1Khrs min. MIL-HDBK-217F (25)
DIMENSION 181*61.5*35mm (L*W*H)
PACKING 0.5Kg; 24pcs/13Kg/0.87CUFT

Meanwell PLN-45-15 Features

l  Pass LPS

l  Class 2 power unit

l  100% full load burn-in test

l  High reliability

l  2 years warranty

l  Suitable for LED lighting and moving sign applications

l  Compliance to worldwide safety regulations for lighting

l  Universal AC input/ Full range (up to 295VAC)

l  Protections: Short circuit /Over current /Over voltage/Over temperature

l  Cooling by free air convection

l  Built-in constant current limiting circuit with adjustable OCP level

l  Fully isolated plastic case with IP64 level

l  Built-in active PFC function

Meanwell PLN-45-15 Price and Specs Single Output LED Power Supply PLN-45-12/15/20/24/27/36/48 PFC IP64 LPS 45W YCICT

Meanwell PLN-45-15 Mechanical Diagram

Meanwell PLN-45-15 Price and Specs 45W Single Output LED Power Supply PLN-45-12/15/20/24/27/36/48 PFC IP64 LPS YCICT

Meanwell PLN-45-15 Price and Datasheet 45W Single Output LED Power Supply PLN-45-12/15/20/24/27/36/48 PFC IP64 LPS YCICT
