DEPARTMENTS
PLN-30-24
17.46

PLN-30-24

$17.46

Meanwell 30W Single Output LED Power Supply with 24V16.8-24V1.25A0-1.25A30W2.6Vp-p

- +
Availability:In stock
SKU Meanwell PLN-30-24
Brand Meanwell
Details

Meanwell PLN-30-24 is 30W Single Output LED Power Supply with 24V16.8-24V1.25A0-1.25A30W2.6Vp-p. It features power correction function, and complies with UL1310 class 2 low power energy regulations and outputs less than 100VA or 5A in any working condition, greatly reducing the risk of electric shock. IP64 high dustproof and waterproof design can protect the internal electronic components from the threat of dust and moisture, which meets the application requirements of outdoor or indoor high humidity environment. Moreover, PLN-30-24 adopts single-stage PFC architecture in the circuit design to achieve the requirements of high PF value and CLASS C harmonic level in the most economical way. In addition, the efficiency could reach high up to 86%, so that it can only use natural air cooling to operate between -30℃~+50℃ meeting the relevant requirements of indoor and outdoor LED drivers globally. The input and output is also equipped with 18 AWG power cord for flexible assembly in various systems or working situations. Furthermore, the output voltage and output current can be adjusted by the user to make LED output the best brightness. As a result of its longevity, high reliability, and excellent quality, Meanwell PLN-30-24 is ideal for small LED signage, backlight panels, LED decorative light sources, LED stage lights and theater lighting, etc.

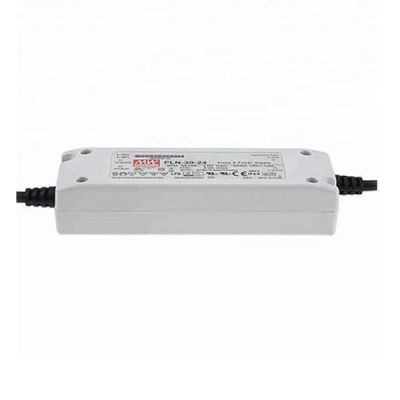

Meanwell PLN-30-24 Price and Specs Single Output Power Supply PLN-30-9/12/15/20/24/27/36/48 30W PFC LPS AC/DC YCICT

Meanwell PLN-30-24 Specifications

Model PLN-30-24
OUTPUT DC VOLTAGE 24V
CONSTANT CURRENT REGION 16.8-24V
RATED CURRENT 1.25A
CURRENT RANGE 0-1.25A
RATED POWER 30W
RIPPLE & NOISE (max.) 2.6Vp-p
VOLTAGE TOLERANCE -5% ~ 10%. Can be adjusted by internal potentiometer SVR1
CURRENT ADJ. RANGE 3% ~ -25%. Can be adjusted by internal potentiometer SVR2
VOLTAGE TOLERANCE ±10%
LINE REGULATION ±3.0%
LOAD REGULATION ±5.0%
SETUP TIME 500ms / 230VAC 3000ms / 115VAC at full load
INPUT VOLTAGE RANGE 90 ~ 295VAC 127 ~ 417VDC
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR (Typ.) PF>0.95/115VAC, PF>0.9/230VAC, PF>0.9/277VAC at full load (Please refer to "Power Factor Characteristic" curve)
TOTAL HARMONIC DISTORTION  THD< 20% when output loading>=75% at 115VAC/230VAC input and output loading>=80% at 277VAC input
EFFICIENCY (Typ.) 84.00%
AC CURRENT (Typ.) 0.4A/115VAC 0.2A/230VAC 0.15A/277VAC
INRUSH CURRENT(Typ.) COLD START 35A(twidth=25μs measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER 64 units (circuit breaker of type B) / 64 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT <0.5mA / 240VAC
PROTECTION OVER CURRENT 100 ~ 110%
Protection type : Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT Hiccup mode, recovers automatically after fault condition is removed.
OVER VOLTAGE 27-34V
Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE Shut down o/p voltage, re-power on to recover
ENVIRONMENT WORKING TEMP -30 ~ +50 (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +80, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.06%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY&EMC SAFETY STANDARDS UL879, UL1310, CSA C22.2 No. 207-M89(except for 48V), TUV BS EN/EN61347-1, BS EN/EN61347-2-13, GB19510.1,GB19510.14, EAC TP TC 004,IP64 approved
WITHSTAND VOLTAGE I/P-O/P:3.75KVAC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (pin>=25W), Class D (>70% load) ; BS EN/EN61000-3-3; GB17743 and GB17625.1,EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, BS EN/EN61547, light industry level, criteria B;EAC TP TC 020
Others MTBF 4296.9K hrs min. Telcordia SR-332 (Bellcore) ; 621.4Khrs min. MIL-HDBK-217F (25)
DIMENSION 145*47*30mm (L*W*H)
PACKING 0.22Kg; 60pcs/14.2Kg/1.25CUFT

Meanwell PLN-30-24 Features

l  Pass LPS

l  ClassⅡpower unit, no FG

l  Class 2 power unit

l  100% full load burn-in test

l  High reliability

l  2 years warranty

l  Suitable for LED lighting and moving sign applications

l  Compliance to worldwide safety regulations for lighting

l  Universal AC input/Full range (up to 295VAC)

l  Protections: Short circuit/Over current/Over voltage/Over temperature

l  Cooling by free air convection

l  Built-in constant current limiting circuit with adjustable OCP level

l  Fully isolated plastic case with IP64 level

l  Built-in active PFC function

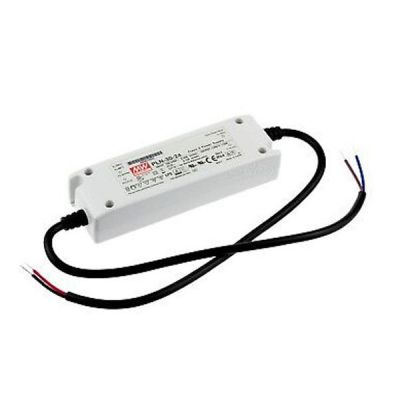

Meanwell PLN-30-24 Price and Specs 30W Single Output Power Supply PLN-30-9/12/15/20/24/27/36/48 PFC LPS IP64 YCICT

Meanwell PLN-30-24 Mechanical Diagram

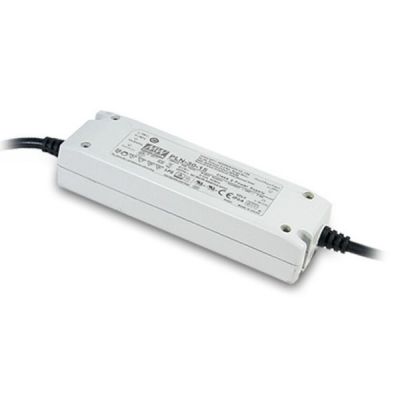

Meanwell PLN-30-24 Price and Specs 30W Single Output Power Supply PLN-30-9/12/15/20/24/27/36/48 PFC LPS AC/DC YCICT

Meanwell PLN-30-24 Price and Specs 30W Single Output Power Supply PLN-30-9/12/15/20/24/27/36/48 PFC LPS AC/DC YCICT
