PLC-30-27
20.96

PLC-30-27

$20.96

Meanwell 30W Single Output LED Power Supply with 27V18.9-27V1.12A0-1.12A30.24W2.3Vp-p25.65-29.7V0.84-1.1536A

- +
Availability:In stock
SKU Meanwell PLC-30-27
Brand Meanwell
Details

Meanwell PLC-30 Series is 30W Single Output LED Power Supply  highlighting molded case non-glued waterproof with single-stage power factor correction. The entire seires accpets universal AC input Full range and no ground wires required for input. The power supply passes Class 2 power limit testing, and has comprehensive protection including overtemperature protection. Output voltage is divided into 9V, 12V, 15V, 20V, 24V, 27V, 36V, 42V, 48V. In addition, the input and output wiring adopts screw terminal junction box, which is suitable for LED indoor lighting and LED electronic billboard related applications.

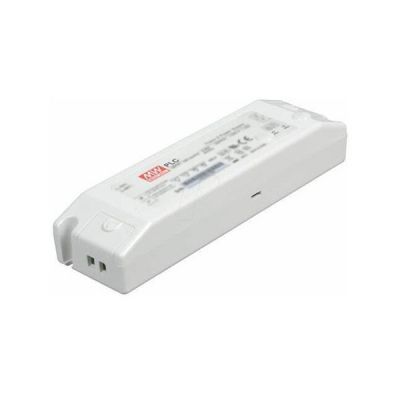

Meanwell PLC-30-27 Price and Specs 30W Single Output LED Power Supply PLC-30-9/12/15/20/24/27/36/48 Class 2 no FG YCICT

Meanwell PLC-30-27 Specifications

Model PLC-30-27
OUTPUT DC VOLTAGE 27V
CONSTANT CURRENT REGION 18.9-27V
RATED CURRENT 1.12A
CURRENT RANGE 0-1.12A
RATED POWER 30.24W
RIPPLE & NOISE (max.) 2.3Vp-p
VOLTAGE ADJ. RANGE 25.65-29.7V
CURRENT ADJ. RANGE 0.84-1.1536A
VOLTAGE TOLERANCE ±10%
LINE REGULATION ±3.0%
LOAD REGULATION ±5.0
SETUP TIME 500ms / 230VAC 3000ms / 115VAC at full load
INPUT VOLTAGE RANGE 90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR (Typ.) PF>0.95/115VAC, PF>0.9/230VAC at full load (Please refer to "Power Factor Characteristic" curve)
TOTAL HARMONIC DISTORTION  THD< 20% when output loading>=70% at 115VAC/230VAC input
EFFICIENCY (Typ.) 84.50%
AC CURRENT (Typ.) 0.4A/115VAC 0.2A/230VAC
INRUSH CURRENT(Typ.) COLD START 35A(twidth=25μs measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER 64 units (circuit breaker of type B) / 64 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT <0.5mA / 240VAC
PROTECTION OVER CURRENT 100 ~ 110%
Protection type : Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT Hiccup mode, recovers automatically after fault condition is removed.
OVER VOLTAGE 31-35V
Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE Shut down o/p voltage, auto-recovery
ENVIRONMENT WORKING TEMP -30 ~ +50 (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +80, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.06%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY&EMC SAFETY STANDARDS UL1310, TUV BS EN/EN61347-1, BS EN/EN61347-2-13, GB19510.14,GB19510.1, CAN/CSA C22.2 No. 223-M91(except for 48V), EAC TP TC 004 approved
WITHSTAND VOLTAGE I/P-O/P:3.75KVAC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55015, GB17743, GB17625.1,BS EN/EN61000-3-2 Class C (Pin>=25W), Class D (>70% load) ;
BS EN/EN61000-3-3,EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, BS EN/EN61547, light industry level, EAC TP TC 020
Others MTBF 4293.1K hrs min. Telcordia SR-332 (Bellcore) 625.5Khrs min. MIL-HDBK-217F (25)
DIMENSION 160*46*30mm (L*W*H)
PACKING 0.2Kg; 70pcs/15Kg/0.96CUFT

Meanwell PLC-30-27 Features

l  High reliability

l  2 years warranty

l  Class 2 power unit

l  100% full load burn-in test

l  ClassⅡpower unit, no FG

l  Universal AC input/Full range

l  Cooling by free air convection

l  Built-in constant current limiting circuit

l  Adjustable output voltage and current level

l  Suitable for LED lighting and moving sign applications

l  Compliance to worldwide safety regulations for lighting

l  Fully isolated plastic case with terminal block style of Il/O

l  Protections: Short circuit/Over current/Over voltage/Over temperature

l  Built-in active PFC function, comply with BS EN/EN61000-3-2 class C(Pin225W)

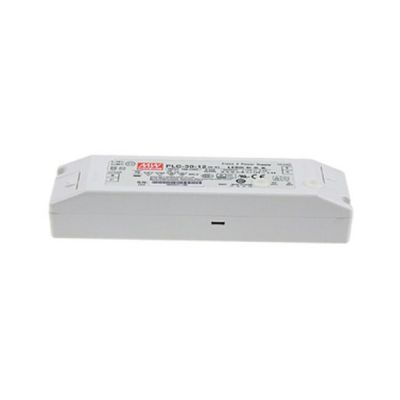

Meanwell PLC-30-27 Price and Specs 30W Single Output LED Power Supply PLC-30-9/12/15/20/24/27/36/48 Class 2 NO FG YCICT

Meanwell PLC-30-27 Mechanical Diagram

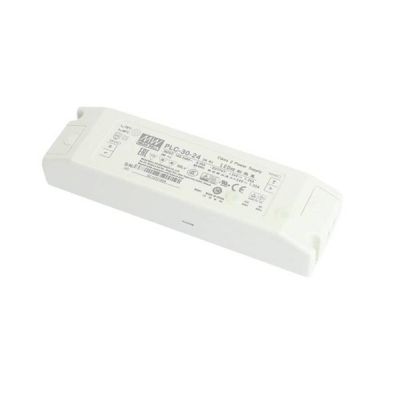

Meanwell PLC-30-27 Price and Specs 30W Single Output LED Power Supply PLC-30-9/12/15/20/24/27/36/48 Class 2 YCICT

Meanwell PLC-30-27 Price and Datasheet 30W Single Output LED Power Supply PLC-30-9/12/15/20/24/27/36/48 Class 2 YCICT
