DEPARTMENTS
PCD-60-1400B
23.72

PCD-60-1400B

$23.72

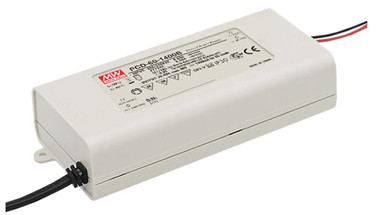

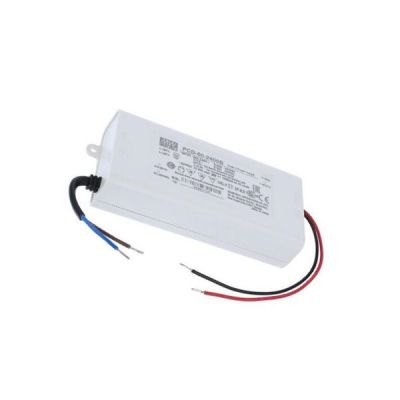

Meanwell 60W Single Output AC Dimmable LED Power Supply with 1400mA25-43V±5.0%60.2W3.4Vp-p50V500ms/230VAC at full load

- +
Availability:In stock
SKU Meanwell PCD-60-1400B
Brand Meanwell
Details

Meanwell PCD-60-1400B is 60W economical constant current LED Power Supply with 1400mA25-43V±5.0%60.2W3.4Vp-p50V500ms/230VAC at full load. The unit offers 180~295VAC voltage input and 1400mA output. Under leading edge or trailing edge TRIAC dimmer, the brightness of LED lamps can be adjusted to satisfy the needs of AC dimming applications in the LED lighting market. As the efficiency reaches high up to 88%, it could work at -30°C ~50°C under natural air cooling. PCD-60-1400B is designed with a single-stage PFC line to achieve high PF value (PF>0.9) in the most economical way, and meet the requirements of EU EN61000-3-2 for harmonic current Class C. Apart from them, the body adopts 94V-0 fireproof grade plastic shell. With a two-wire input method ( ClassⅡ, no FG) and double insulation effect, the item can effectively avoid the risk of electric shock. PCD-60-1400B is equipped with protections such as built-in short circuit, over temperature and other functions, and has also passed ENEC EN61347-2-13, EN62384, CE and other lighting related certifications, which ensures the safety of product use. Meanwell has tested plenty of world-renowned brand TRIAC dimmers, all of which have a good match. In view of its longevity, high reliability and low price, Meanwell PCD-60-1400B is ideally suitable for LED indoor lighting or decorative light source related applications.Meanwell PCD-60-1400B price and specs 60W Single Output LED PCD-60-500B/700B/1050B/1400B/1750B/2000B/2400B IP42 YCICT

Meanwell PCD-60-1400B Specifications

Model PCD-60-1400B
OUTPUT RATED CURRENT 1400mA
OPERATING VOLTAGE RANGE 25-43V
CURRENT ACCURACY ±5.0%
RATED POWER 60.2W
RIPPLE & NOISE (max.) 3.4Vp-p
NO LOAD OUTPUT VOLTAGE (max.) 50V
SETUP TIME 500ms / 230VAC at full load
INPUT VOLTAGE RANGE 180~295VAC
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR (Typ.) PF>0.9/230VAC, PF>0.9/277VAC at full load (Please refer to "Power Factor Characteristic" curve)
TOTAL HARMONIC DISTORTION  THD< 20% when output loading>=60%(PCD-60-500B loading>=65%)at 230VAC input and output loading>=75% at 277VAC input
EFFICIENCY (Typ.) 87.00%
AC CURRENT (Typ.) 0.6A/230VAC 0.5A/277VAC
INRUSH CURRENT(Typ.) COLD START 13A (twidth=50μs measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A
CIRCUIT BREAKER
32 units (circuit breaker of type B) / 32 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT <0.5mA / 240VAC
PROTECTION OVER TEMPERATURE Shut down o/p voltage, auto-recovery
SHORT CIRCUIT Hiccup mode, recovers automatically after fault condition is removed
ENVIRONMENT WORKING TEMP -30 ~ +45 (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +80, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY&EMC SAFETY STANDARDS ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384, EAC TP TC 004,IP42 approved
WITHSTAND VOLTAGE I/P-O/P:3.75KVAC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C ; BS EN/EN61000-3-3,EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level(Surge 2KV), criteria B,EAC TP TC 020
Others MTBF 3910.3K hrs min. Telcordia SR-332 (Bellcore) 358.0Khrs min. MIL-HDBK-217F (25)
DIMENSION 128*60*31.5mm (L*W*H)
PACKING 0.35Kg;30pcs/11.5Kg/0.58CUFT

Meanwell PCD-60-1400B Features

l  Low cost

l  IP42 design

l  High reliability

l  3 years warranty

l  AC phase-cut dimming

l  Built-in active PFC function

l  Constant current design

l  Fully isolated plastic case

l  100% full load burn-in test

l  ClassⅡpower unit, no FG

l  Cooling by free air convection

l  Protections: Short circuit/Over temperature

l  Work with leading edge and trailing edge TRIAC dimmers

l  Suitable for LED related fixture or appliance (such as LED Decoration or Advertisement devices)

Meanwell PCD-60-1400B price and specs 60W AC Single Output PCD-60-500B/700B/1050B/1400B/1750B/2000B/2400B PFC YCICT

Meanwell PCD-60-1400B Mechanical Diagram

Meanwell PCD-60-1400B price and specs 60W AC Single Output Power PCD-60-500B/700B/1050B/1400B/1750B/2000B/2400B YCICT

Meanwell PCD-60-1400B price and specs 60W AC Single Output LED PCD-60-500B/700B/1050B/1400B/1750B/2000B/2400B YCICT
