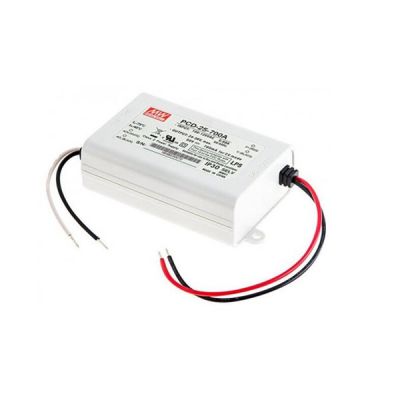

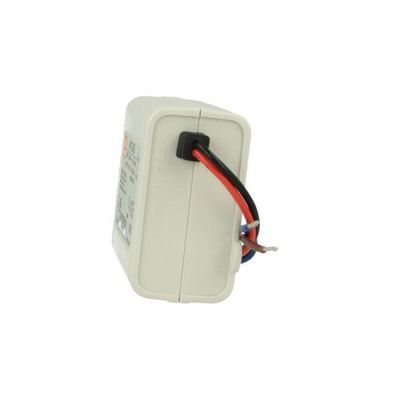

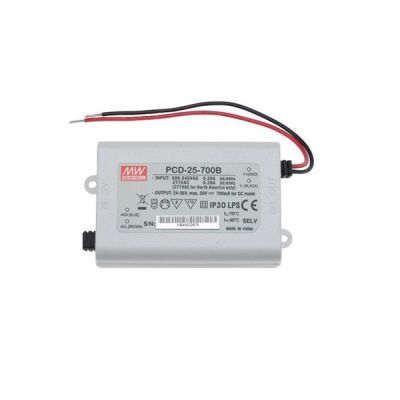

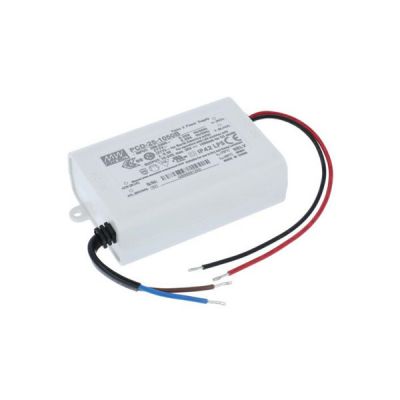

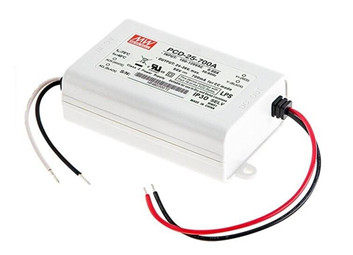

Meanwell 25W Single Output AC Dimmable LED Power Supply with 700mA24-36V±5.0%25.2W2.7Vp-p50V500ms/230VAC 2000ms/115VAC at full load

- +
Availability:In stock
SKU Meanwell PCD-25-700
Brand Meanwell
Details

Meanwell PCD-25-700 is 25W Single Output AC Dimmable LED Power Supply with 700mA24-36V±5.0%25.2W2.7Vp-p50V500ms/230VAC 2000ms/115VAC at full load. The item outstands 180~295VAC voltage input and 700mA single constant current output. With leading edge or trailing edge TRIAC dimmer, the brightness of LED lamps can be adjusted to meet the needs of AC dimming applications in the LED lighting market. When working at full load, the high conversion efficiency could reach up to 88%, and operate at -30°C ~50°C under natural air cooling. Meanwhile, PCD-25-700 is designed with a single-stage PFC line to achieve high PF value (PF>0.9) in the most economical way, and complies with the requirements of EU EN61000-3-2 for harmonic current Class C. The body adopts 94V-0 fireproof grade plastic shell. With a two-wire input method (ClassⅡ, no FG)  and double insulation effect, it can effectively avoid the risk of electric shock. Additionally, the product is supplied with protections such as built-in short circuit, over temperature and other functions, and has also passed ENEC EN61347-2-13, EN62384, CE and other lighting related certifications, which ensures the safety of product use. Meanwell has tested a number of world-renowned brand TRIAC dimmers, all of which have a good match. Thanks to its longevity, high reliability and low cost, Meanwell PCD-25-700 is ideally suitable for LED indoor lighting or decorative light source related applications.

Meanwell PCD-25-700 price and specs 25W AC LED Supply PCD-25-350 PCD-25-700 PCD-25-1050 PCD-25-1400 low cost IP42 YCICT

Meanwell PCD-25-700 Specifications

PCD-25-700 A A: With AC input 90-135VAC
B B: With AC input 180-295 VAC
Model PCD-25-700
OUTPUT RATED CURRENT 700mA
OPERATING VOLTAGE RANGE 24-36V
CURRENT ACCURACY ±5.0%
RATED POWER 25.2W
RIPPLE & NOISE (max.) 2.7Vp-p
NO LOAD OUTPUT VOLTAGE (max.) 50V
SETUP TIME 500ms/230VAC 2000ms/115VAC at full load
INPUT FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR (Typ.) PF>0.9/115VAC, PF>0.9/230VAC, PF>0.9/277VAC at full load (Please refer to "Power Factor Characteristic" curve)
TOTAL HARMONIC DISTORTION  A Series THD< 20% when output loading>=70% at 115VAC
TOTAL HARMONIC DISTORTION  B Series THD< 20% when output loading>=70% at 230VAC input and output loading>=80% at 277VAC input
EFFICIENCY (Typ.) 81.00%
AC CURRENT (Typ.) 0.6A/115VAC 0.3A/230VAC 0.2A/277VAC
INRUSH CURRENT(max.) COLD START 10A(twidth=20μs measured at 50% Ipeak) at 115VAC / 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER A Series 37 units (circuit breaker of type B) / 37 units (circuit breaker of type C) at 115VAC
B Series  80 units (circuit breaker of type B) / 80 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT <0.5mA 120VAC / 240VAC
PROTECTION OVER TEMPERATURE Shut down o/p voltage, re-power on to recover
SHORT CIRCUIT Hiccup mode, recovers automatically after fault condition is removed
ENVIRONMENT WORKING TEMP -30 ~ +60 (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +80, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY&EMC SAFETY STANDARDS UL8750, CSA C22.2 No. 250.0-08, ENEC BS EN/EN613471, BS EN/EN61347-2-13, BS EN/EN62384(for B type only),
BIS IS15885(for 350B,700B only), EAC TP TC 004,IP42 approved ; design refer to UL60950-1, BS EN/EN61347-1, BS EN/EN61347-2-13
WITHSTAND VOLTAGE I/P-O/P:3.75KVAC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55015 (B type only), BS EN/EN61000-3-2 Class C ; BS EN/EN61000-3-3, FCC part 18 non-consumer
equipment (A type only), EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024,BS EN/EN61547, light industry level, EAC TP TC 020
Others MTBF 6612.9K hrs min. Telcordia SR-332 (Bellcore) 806.1Khrs min. MIL-HDBK-217F (25)
DIMENSION 84*57*29.5mm (L*W*H)
PACKING 0.19Kg; 72pcs/14.7Kg/0.92CUFT

Meanwell PCD-25-700 Features

l  Low cost

l  IP42 design

l  High reliability

l  3 years warranty

l  AC phase-cut dimming

l  Work with leading edge and trailing edge TRIAC dimmers

l  115VAC or 230V AC models available

l  Built-in active PFC function

l  Constant current design

l  Protections: Short circuit/Over temperature

l  Cooling by free air convection

l  Fully isolated plastic case

l  ClassⅡ power unit, no FG

l  Class 2 power unit

l  100% full load burn-in test

l  Suitable for L ED related fixture or appliance (such as LED Decoration or Advertisement devices)
