DEPARTMENTS

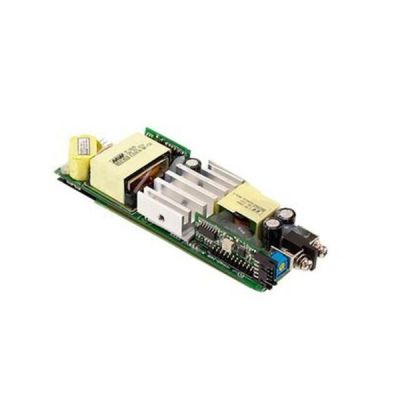

NMS-240
5.1
NMS-240

NMS-240

As low as $5.10
- +
Availability:In stock
SKU Meanwell NMS-240
Brand Meanwell
Details

Meanwell NMS-240 Series Model Specifications

Model NMS-240-05 NMS-240-12 NMS-240-24 NMS-240-48
Output(NMS-240) CONFIGURATION CODE C E H K
DC VOLTAGE 5V 12V 24V 48V
RATED CURRENT 36A 20A 10A 5A
CURRENT RANGE 0-36A 0-20A 0-10A 0-5A
RATED POWER 180W 240W 240W 240W
RIPPLE & NOISE (max.)  100 mVp-p 150 mVp-p 150 mVp-p 250 mVp-p
VOLTAGE ADJ. RANGE 3-6V 6-15V 15-30V 30-65V
VOLTAGE TOLERANCE ±2.0% ±1.0% ±1.0% ±1.0%
LINE REGUL ATION ±0.5% ±0.3% ±0.2% ±0.2%
LOAD REGULATION ±1.0% ±0.5% ±0.5% ±0.5%
SETUP, RISE TIME 1500ms, 60ms at full load
HOLD UP TIME  16ms/230VAC @ 75% total output power 10ms/230VAC @ total output power
PROTECTION OVERLOAD 105 ~ 125% rated output power
Protection type: constant current limiting protection
OVER VOLTAGE 6.3-8V 15.5-20V 31-37V 57-66V
Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE Shut down o/p voltage, recovers automatically after temperature goes down
FUNCTION REMOTE ON/OFF CONTROL RC+/RC-: Open, Power ON RC+/RC-: Short, Power OFF
REMOTE SENSE Compensate voltage drop on the load wiring up to 0.5V.
OUTPUT VOLTAGE PROGRAMMABLE(PV) 3-6V 6-15V 15-30V 30-55V
Adjustment of output voltage is allowable. Please refer to the Function Manual.
OUTPUT CURRENT PROGRAMMABLE(PC) Adjustment of constant current level is allowable. Please refer to the Function Manual
AUXILIARY POWER(AUX) 5V@10mA; tolerance ±10%, ripple: 50mVp-p (max.)
CURRENT SHARING(CS) Please refer to the Function Manual.
DC OK SIGNAL Output modules turn on=4.5 ~ 5.5V, turn off=0 ~ 0.5V. Please refer to the Function Manual
ENVIRONMENT WORKING TEMP -20 ~ +65 (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.03%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
  DIMENSION 118.5*37.9*18mm (L*W*H)
PACKING 0.142Kg (typ.); 72pcs / 11.2Kg / 1.04CUFT
