DEPARTMENTS
NMD-240
7.1

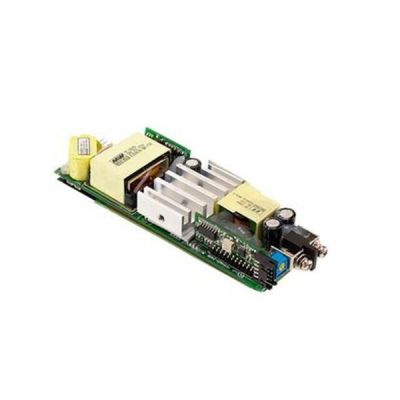

NMD-240

NMD-240

$7.10
- +
Availability:In stock
SKU Meanwell NMD-240
Brand Meanwell
Details

Meanwell NMD-240 Series Model Specifications

Model NMD-240
Output(NMS-240) CONFIGURATION CODE D
OUTPUT NUMBER V1 V2
DC VOLTAGE 30V 30V
RATED CURRENT (max.) 5A 5A
CURRENT RANGE 0-5A 0-5A
RATED POWER (max.) 150W 150W
COMBINED POWER (max.) 240W
RIPPLE & NOISE (max.)  250mVp-p 250mVp-p
VOLTAGE ADJ. RANGE 3-30V 3-30V
VOLTAGE TOLERANCE (max) ±2.0% ±2.0%
LINE REGUL ATION ±0.5% ±0.5%
LOAD REGULATION ±1.0% ±1.0%
SETUP, RISE TIME 1500ms, 60ms at full load
HOLD UP TIME  16ms/230VAC @ 75% total output power 10ms/230VAC @ total output power
PROTECTION OVERLOAD(V1,V2) 105 ~ 125% rated output power
Protection type: constant current limiting protection
OVER VOLTAGE(V1,V2) 31 ~ 37V 31 ~ 37V
Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE(V1,V2) Shut down o/p voltage, recovers automatically after temperature goes down
FUNCTION REMOTE ON/OFF CONTROL(V1,V2) RC+/RC-: Open, Power ON RC+/RC-: Short, Power OFF
DC OK SIGNAL(V1,V2) Output modules turn on=4.5 ~ 5.5V, turn off=0 ~ 0.5V. Please refer to the Function Manual
OTHERS DIMENSION 118.5*37.9*18mm (L*W*H)
PACKING 0.152Kg (typ.); 72pcs / 11.9Kg / 1.04CUFT
