Meanwell 60W Single Output LED Power Supply

- +
Availability:In stock
SKU Meanwell PLC-60
Brand Meanwell
Details

Meanwell PLC-60 Series is a molded case non-glued waterproof LED power supply. The entire series features single-stage power factor correction (100 W model is bipolar PFC), and constant voltage constant current working mode. The constant current value and constant voltage value can be adjusted. PLC-60 is an improvement over the existing PLN-60 series with a new plastic housing design to change the I/O terminal block connection and bring more flexibility to the wiring work. Two small-hole rubber stoppers have been added to the housing, allowing users to adjust the output current or voltage without removing the housing. In addition, PLC-60 is also UL, CUL, TUV and CE global safety certified, including EN61347-2-13, UL1310 Class 2 and UL879. Typical applications for these new Class 2 power supplies include LED strip displays and backlighting, LED decoration/architectural lighting, LED stage lighting and LED electronic displays.

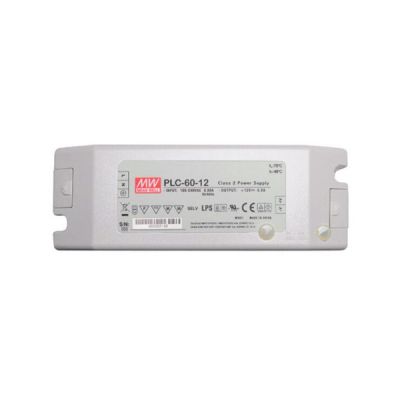

Meanwell PLC-60 Price and Specs 60W Single Output LED Power Supply PLC-60-12/15/20/24/27/36/48 LPS Pass AC/DC YCICT

Meanwell PLC-60 Series Model Specifications

Model PLC-60-12 PLC-60-15 PLC-60-20 PLC-60-24 PLC-60-27 PLC-60-36 PLC-60-48
OUTPUT DC VOLTAGE 12V 15V 20V 24V 27V 36V 48V
CONSTANT CURRENT REGION 8.4-12V 10.5-15V 13-20V 16.8-24V 18.9-27V 25.2-36V 33.6-48V
RATED CURRENT 5A 4A 3A 2.5A 2.3A 1.7A 1.3A
CURRENT RANGE 0-5A 0-4A 0-3A 0-2.5A 0-2.3A 0-1.7A 0-1.3A
RATED POWER 60W 60W 60W 60W 62.1W 61.2W 62.4W
RIPPLE & NOISE (max.) 2Vp-p 2.4Vp-p 1.8Vp-p 2.4Vp-p 2.7Vp-p 3.6Vp-p 4.6Vp-p
VOLTAGE ADJ. RANGE 11.5-13V 14.5-16.2V 19.5-22V 24-26V 25-30V 32.5-39V 43.6-51.8V
CURRENT ADJ. RANGE 3.75-5.15A 3-4.12A 2.25-3.09A 1.875-2.575A 1.725-2.369A 1.275-1.751A 0.975-1.339A
VOLTAGE TOLERANCE ±10%
LINE REGULATION ±3.0%
LOAD REGULATION ±5.0%
SETUP TIME 500ms / 230VAC 3000ms / 115VAC at full load
INPUT VOLTAGE RANGE 90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz

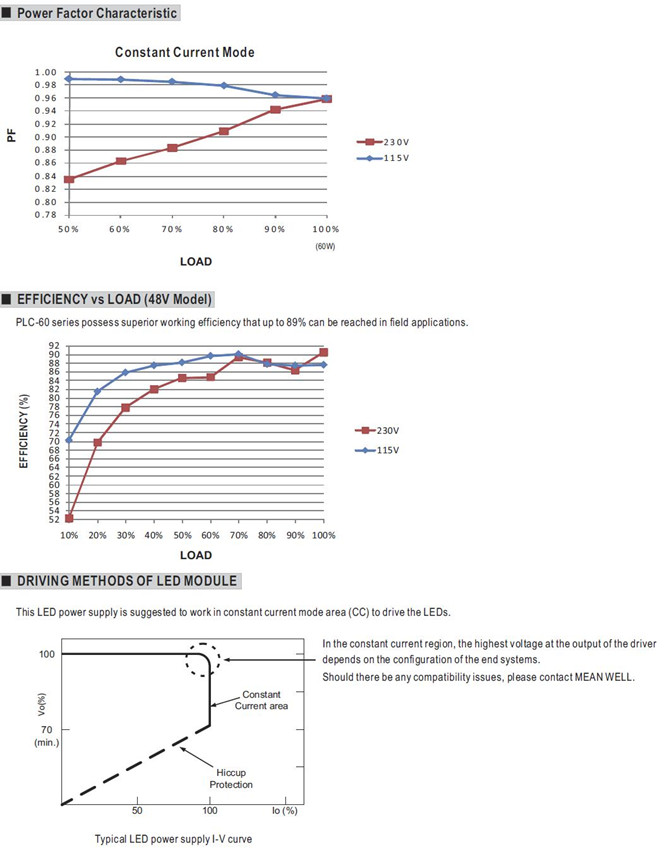

POWER FACTOR (Typ.) PF>0.92/115VAC, PF>0.9/230VAC at full load (Please refer to "Power Factor Characteristic" curve)
TOTAL HARMONIC DISTORTION  THD< 20% when output loadin>=≧75% at 115VAC/230VAC input
EFFICIENCY (Typ.) 86.00% 86.00% 87.50% 87.00% 88.00% 89.00% 89.00%
AC CURRENT (Typ.) 0.8A/115VAC 0.4A/230VAC
INRUSH CURRENT(Typ.) COLD START 35A(twidth=35μs measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER 32 units (circuit breaker of type B) / 32 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT <0.75mA / 240VAC
PROTECTION OVER CURRENT 95 ~ 110%
Protection type : Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 13.8-16V 17.5-21V 23-26V 28-32V 31-35V 41-46V 54-60V
Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE Shut down o/p voltage, recovers automatically after temperature goes down
ENVIRONMENT WORKING TEMP -30 ~ +50 (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +80, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY&EMC SAFETY STANDARDS UL1310, TUV BS EN/EN61347-1, BS EN/EN61347-2-13, GB19510.14, GB19510.1, CAN/CSA C22.2 No. 223-M91(except for 48V), EAC TP TC 004 approved
WITHSTAND VOLTAGE I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55015, GB17743, GB17625.1, BS EN/EN61000-3-2 Class C (>=75% load) ; BS EN/EN61000-3-3, EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024,BS EN/EN61547, light industry level ,EAC TP TC 020
Others MTBF 3445.4K hrs min. Telcordia SR-332 (Bellcore) 515.0Khrs min. MIL-HDBK-217F (25)
DIMENSION 181.5*62*35mm (L*W*H)
PACKING 0.41Kg; 30pcs/13.3Kg/0.67CUFT

Meanwell PLC-60 Series Features

l  Universal AC input/Full range

l  High efficiency up to 89%

l  Adjustable output voltage and current level

l  Protections: Short circuit/Over current/Over voltage/Over temperature

l  Cooling by free air convection

l  Built-in constant current limiting circuit

l  Fully isolated plastic case with terminal block style of I/O

l  Built-in active PFC function, comply with BS EN/EN61000-3-2 class C (>=75% load)

l  Class 2 power unit

l  Pass LPS

l  100% full load burn-in test

l  High reliability

l  Suitable for LED lighting and moving sign applications

l  Compliance to worldwide safety regulations for lighting

l  2 years warranty

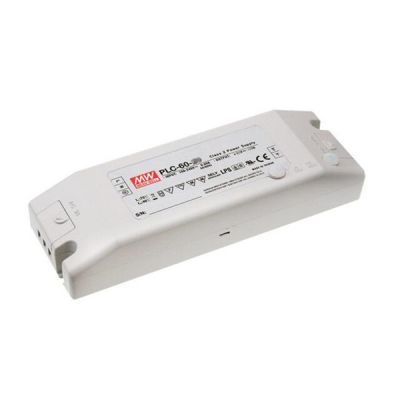

Meanwell PLC-60 Price and Specs 60W Single Output LED Power Supply PLC-60-12/15/20/24/27/36/48 LPS Pass Class 2 YCICT

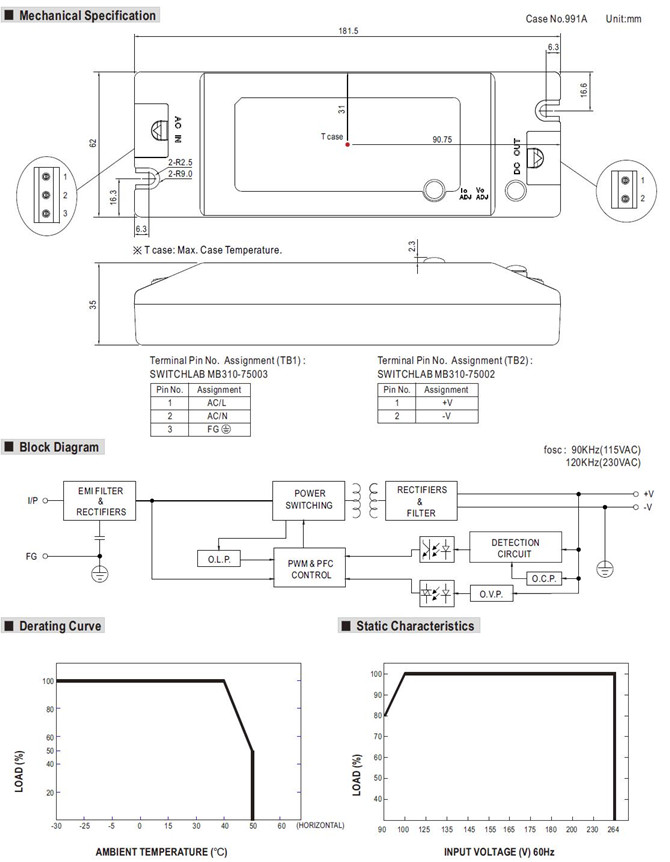

Meanwell PLC-60 Series Mechanical Diagram
