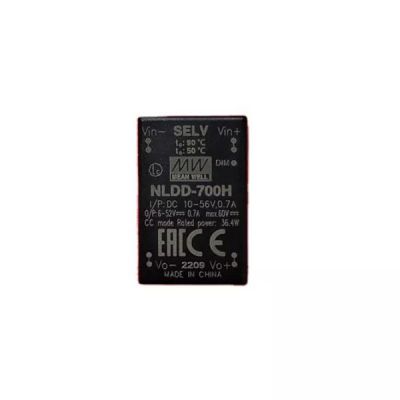

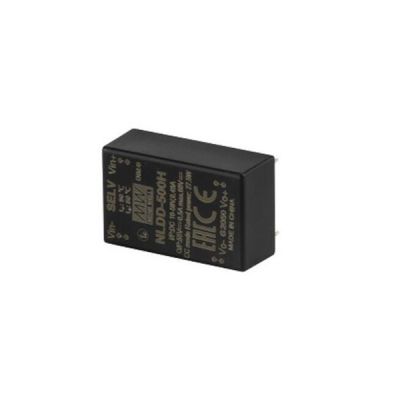

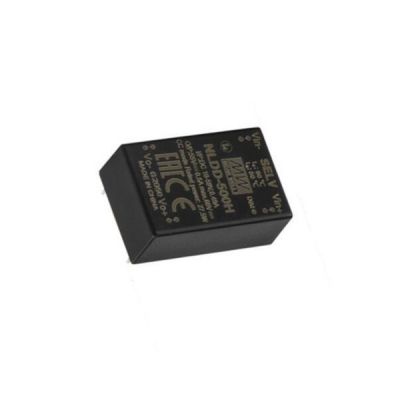

NLDD-1200H
6.82

NLDD-1200H

$6.82

Meanwell DC-DC Constant Current Step-Down LED driver with 1200mA6-52VDC±5% at 48VDC input350mVp-p200KHz10~56VDC (59VDC Max.)1200mA5mA100~1KHz

- +
Availability:In stock
SKU Meanwell NLDD-1200H
Brand Meanwell
Details

Meanwell NLDD-1200H is a 60W DC/DC step-down LED driver with 1200mA6-52VDC±5% at 48VDC input350mVp-p200KHz10~56VDC (59VDC Max.)1200mA5mA100~1KHz. The unit is designed in compact size and constant current output. At the same time, it converts 48V DC input voltage into constant current output and directly drives the LED module. Moreover, the efficiency reaches high up to 96%. Based on 94V-0 flame retardant plastic case, fully-potted silicone enhancing heat dissipation, this makes the unit possible to meet for class Ш or DC bus lighting applications. LDD, LDB, LDH series are all DC-DC constant current output LED drivers, LDD is step-down type, LDH is step-up type, and LDB is buck-boost type model. As a result of its longevity, high reliability and low cost, Meanwell NLDD-1200H is an ideal solution for driving illumination LED such as commercial track lamps or indoor lighting fixtures such as offices and classrooms.

Meanwell NLDD-1200H price and specs 60W NLDD-350H NLDD-500H NLDD-700H NLDD-1050H NLDD-1200H NLDD-1400H LED driver YCICT

Meanwell NLDD-1200H Encoding

NLDD Series Name
350 Output Current ( 350/500/700/1050/1200/1400mA)
H
W Blank: Pin style for PCB mounting
W: Wire Style

Meanwell NLDD-1200H Specifications

ORDER NO. NLDD-1200H
OUTPUT CURRENT RANGE 1200mA
VOLTAGE RANGE 6-52VDC
CURRENT ACCURACY (Typ.) ±5% at 48VDC input
RIPPLE & NOISE (max.) 350mVp-p
SWITCHING FREQENCY 200KHz
Input VOLTAGE RANGE 10 ~ 56VDC (59VDC Max.)
EFFICIENCY (max.) 95% at full load and 36VDC/48VDC input
DC CURRENT Full load 1200mA
DC CURRENT No load 5mA
PWM DIMMING & ON/OFF CONTROL REMOTE ON/OFF Leave open if not use
Power ON with dimming: DIM ~ -Vin >2.5 ~ 5VDC or open circuit
Power OFF : DIM ~ -Vin < 0.8VDC or short
PWM FREQUENCY 100 ~ 1KHz
QUIESCENT INPUT CURRENT IN SHUTDOWN MODE (max.) 2mA at PWM dimming OFF at 48VDC input
PROTECTION SHORT CIRCUIT Regulated at rated current
Protection type: Can be continued, recovers automatically after fault condition is removed
OVER TEMPERATURE Tj 165typically(IC1) detect on main control IC
Protection type : Shut down, recovers automatically after temperature goes down
ENVIRONMENT WORKING TEMP. -40 ~ + 50(Refer to derating curve)
WORKING HUMIDITY 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03% /
VIBRATION 10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes
OPERATING CASE TEMP. (max.) 90
EMC SAFETY STANDARDS LVD BS EN/EN61347-1, BS EN/EN61347-2-13;IEC61347 and EAC TP TC 004 approved
EMC EMISSION Compliance to BS EN/EN55015, BS EN/EN61547
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,6,8, light industry level, EAC TP TC 020
Others MTBF 29984.3K hrs min. Telcordia SR-332 (Bellcore) 2881.6Khrs min. MIL-HDBK-217F (25)
DIMENSION 32.1*20.5*12.5mm or 1.26"*0.8"*0.49" inch (L*W*H)
WEIGHT NLDD-H:15.6g ; NLDD-HW:18g (Please refer to Page 6 for packing)
POTTING MATERIAL Expoxy (UL94-V0)

Meanwell NLDD-1200H Features

l  DC/DC step-down converter

l  3 years warranty

l  High efficiency up to 96%

l  Constant current output: 350mA to 1400mA

l  Wide input voltage: 10~56VDC (59VDC Max.)

l  Wide output LED forward voltage: 6~52VDC

l  Comply with BS EN/EN61347 and BS EN/EN55015 regulation·

l  Built-in PWM and remote ON/OFF control

l  Protections: Short circuit/Over temperature

l  Cooling by free air convection

l  Fully encapsulated and compact site

l  Suitable for driving illumination LED

Meanwell NLDD-1200H price and specs 60W NLDD-350H NLDD-500H NLDD-700H NLDD-1050H NLDD-1200H NLDD-1400H LED driver YCICT

Meanwell NLDD-1200H Applications

l  DC battery source lighting

l  Portable lighting

l  Commercial lighting

l  DC 48V Track lighting

l  DC 24V landscape lighting

l  For C lassⅢapplication (SELV)

Meanwell NLDD-1200H price and specs NLDD-350H NLDD-500H NLDD-700H NLDD-1050H NLDD-1200H NLDD-1400H LED driver 60W YCICT

Meanwell NLDD-1200H Mechanical Diagram

Meanwell NLDD-1200H price and datasheet NLDD-350H NLDD-500H NLDD-700H NLDD-1050H NLDD-1200H NLDD-1400H LED driver YCICT

Meanwell NLDD-1200H price and specs NLDD-350H NLDD-500H NLDD-700H NLDD-1050H NLDD-1200H NLDD-1400H LED driver YCICT
