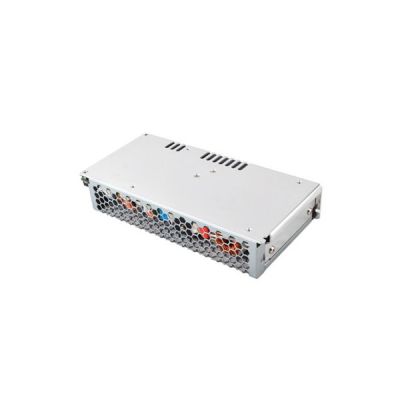

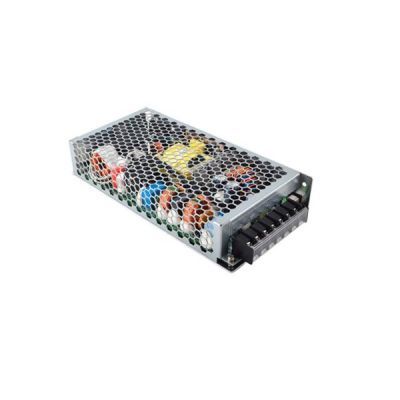

MSP-200-7.5
62.46
Details
Meanwell MSP-200-7.5 is 200W Single Output Medical Type with 1U low profile 38mm and free air convection. Besides the high efficiency and extremely low no load power consumption, it allows the end users to easily fulfill the worldwide energy requirements, and complied with the international safety regulations like ANSI/AAMI ES60601-1, IEC60601-1, EAC TP TC 004 approved, Designed refer to BS EN/EN60601-1, BS EN/EN62368-1 and moreover Medical safety approved (MOOP level). MSP-200-7.5 is provided with Built-in active PFC function and constant current limiting circuit, remote ON-OFF control and remote sense function. In addition, this model has multiple protection types like short circuit, over load, over voltage and Over temperature, and as well withstand 300VAC surge input for 5 seconds. In light of the high efficiency, high reliability and long longevity. Meanwell MSP-200-7.5 is a high price-to-performance power supply solution for medical applications.
Meanwell MSP-200-7.5 Specifications
| Model | MSP-200-7.5 | |
| Output | DC VOLTAGE | 7.5V |
| RATED CURRENT | 26.7A | |
| CURRENT RANGE | 0-26.7A | |
| RATED POWER W | 200.3W | |
| RIPPLE & NOISE (max.) | 100mVp-p | |
| VOLTAGE ADJ. RANGE | 6.8-9V | |
| VOLTAGE TOLERANCE | ±2.0% | |
| LINE REGUL ATION | ±0.5% | |
| LOAD REGULATION | ±1% | |
| SETUP, RISE TIME | 1000ms, 50ms/230VAC 2500ms, 50ms/115VAC at full load | |
| HOLD UP TIME | 16ms/230VAC 16ms/115VAC at full load | |
| Input | VOLTAGE RANGE | 85 ~ 264VAC 120 ~ 370VDC |
| FREQUENCY RANGE | 47 - 63Hz | |
| POWER FACTOR | PF>0.95/230VAC PF>0.99/115VAC at full load | |
| EFFICIENCY (Typ.) | 86.00% | |
| AC CURRENT (Typ.) | 2.2A/115VAC 1.1A/230VAC | |
| INRUSH CURRENT (Typ. ) | 35A/115VAC 70A/230VAC | |
| LEAKAGE CURR ENT | Earth leakage current < 300μA/264VAC , Touch leakage current < 100μA/264VAC | |
| PROTECTION | OVERLOAD | 105 ~ 135% rated output power |
| Protection type : Constant current limiting, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 9.4-10.9V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | |
| FUNCTION | 5V STANDBY | 5VSB : 5V@0.3A ; tolerance±5%, ripple : 50mVp-p(max.) |
| REMOTE CONTROL | RC+/RC- : 4 ~10V or open = power on ; 0 ~ 0.8V or short = power off | |
| ENVIRONMENT | WORKING TEMP | -40 ~ +70℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes | |
| SAFETY &EMC | SAFETY STANDARDS | ANSI/AAMI ES60601-1, IEC60601-1, EAC TP TC 004 approved, Design refer to BS EN/EN60601-1, BS EN/EN62368-1 |
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |
| ISOLATION RESISTANCE | Primary-Secondary: 2×MOOP, Primary-Earth: 1×MOOP | |
| EMC EMISSION | Compliance to BS EN/EN55011 (CISPR11) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN60601-1-2, EAC TP TC 020 | |
| Others | MTBF | 209.4K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 199*98*38mm (L*W*H) | |
| PACKING | 0.77Kg; 18pcs/14.9Kg/0.87CUFT | |
Meanwell MSP-200-7.5 Features
l 1U low profile 38mm
l 5 years warranty
l Standby 5V@0.3A
l High efficiency up to 89%
l Medical safety approved (MOOP level)
l Built-in remote ON-OFF control
l Cooling by free air convection
l Built-in constant current limiting circuit
l Built-in remote sense function
l No load power consumption<0.5W
l Universal AC input/Full range
l Built-in active PFC function, PF>0.95
l Withstand 300VAC surge input for 5 seconds
l Protections: Short circuit/Overload/Over voltage/Over temperature
Meanwell MSP-200-7.5 Mechanical Diagram
