MSP-200-24
65.98

MSP-200-24

$65.98

Meanwell 200W Single Output Medical Type with 24V8.4A0-8.4A201.6W150mVp-p21.6-28.8V±1.0%±0.2%±0.5%

- +
Availability:In stock
SKU Meanwell MSP-200-24
Brand Meanwell
Details

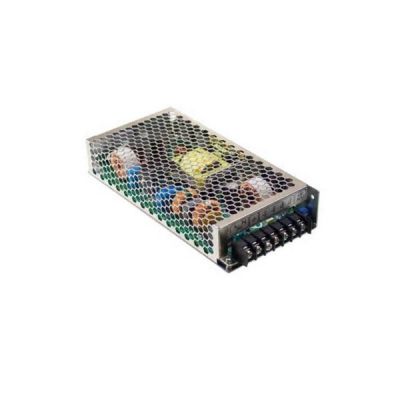

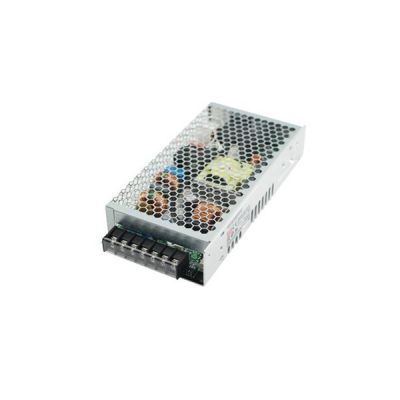

Meanwell MSP-200-24 is 200W Single Output Medical Type with 1U low profile 38mm and free air convection. As to the high efficiency and extremely low no load power consumption, it allows the end system to easily meet the worldwide energy requirements, and complied with the international safety regulations such as ANSI/AAMI ES60601-1, IEC60601-1, EAC TP TC 004, Designed refer to BS EN/EN60601-1, BS EN/EN62368-1 and moreover Medical safety approved (MOOP level). MSP-200-24 is equipped with Built-in active PFC function and constant current limiting circuit, remote ON-OFF control and remote sense function. Furthermore, this unit has multiple protection types such as short circuit, over load, over voltage and Over temperature, and as well withstand 300VAC surge input for 5 seconds. Because of the high efficiency, high reliability and long longevity. Meanwell MSP-200-24 is a high price-to-performance power supply solution for medical applications.

Meanwell MSP-200-24 Specifications

Meanwell MSP-200-24 Specifications

Model MSP-200-24
Output DC VOLTAGE 24V
RATED CURRENT 8.4A
CURRENT RANGE 0-8.4A
RATED POWER W 201.6W
RIPPLE & NOISE (max.)  150mVp-p
VOLTAGE ADJ. RANGE 21.6-28.8V
VOLTAGE TOLERANCE ±1.0%
LINE REGUL ATION ±0.2%
LOAD REGULATION ±0.5%
SETUP, RISE TIME 1000ms, 50ms/230VAC 2500ms, 50ms/115VAC at full load
HOLD UP TIME  16ms/230VAC 16ms/115VAC at full load
Input VOLTAGE RANGE 85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE 47 - 63Hz
POWER FACTOR PF>0.95/230VAC PF>0.99/115VAC at full load
EFFICIENCY (Typ.)  88.00%
AC CURRENT (Typ.) 2.2A/115VAC 1.1A/230VAC
INRUSH CURRENT (Typ. ) 35A/115VAC 70A/230VAC
LEAKAGE CURR ENT Earth leakage current < 300μA/264VAC , Touch leakage current < 100μA/264VAC
PROTECTION OVERLOAD 105 ~ 135% rated output power
Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE 30-34.8V
Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE Shut down o/p voltage, recovers automatically after temperature goes down
FUNCTION 5V STANDBY 5VSB : 5V@0.3A ; tolerance±5%, ripple : 50mVp-p(max.)
REMOTE CONTROL RC+/RC- : 4 ~10V or open = power on ; 0 ~ 0.8V or short = power off
ENVIRONMENT WORKING TEMP -40 ~ +70 (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY &EMC SAFETY STANDARDS ANSI/AAMI ES60601-1, IEC60601-1, EAC TP TC 004 approved, Design refer to BS EN/EN60601-1, BS EN/EN62368-1
WITHSTAND VOLTAGE I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE Primary-Secondary: 2×MOOP, Primary-Earth: 1×MOOP
EMC EMISSION Compliance to BS EN/EN55011 (CISPR11) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN60601-1-2, EAC TP TC 020
Others MTBF 209.4K hrs min. MIL-HDBK-217F (25)
DIMENSION 199*98*38mm (L*W*H)
PACKING 0.77Kg; 18pcs/14.9Kg/0.87CUFT

Meanwell MSP-200-24 Features

l  1U low profile 38mm

l  5 years warranty

l  Standby 5V@0.3A

l  Universal AC input/Full range

l  High efficiency up to 89%

l  Built-in remote ON-OFF control

l  Cooling by free air convection

l  Built-in remote sense function

l  No load power consumption<0.5W

l  Built-in constant current limiting circuit

l  Medical safety approved (MOOP level)

l  Built-in active PFC function, PF>0.95

l  Withstand 300VAC surge input for 5 seconds

l  Protections: Short circuit/Overload/Over voltage/Over temperature

Meanwell MSP-200 Series Features

Meanwell MSP-200-24 Mechanical Diagram

Meanwell MSP-200 Series FeaturesMeanwell MSP-200 Series Features
