MPM-45-48
23.59
Details

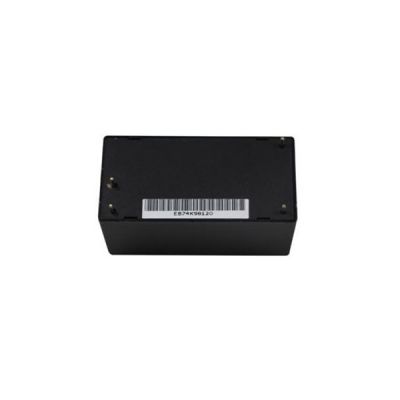

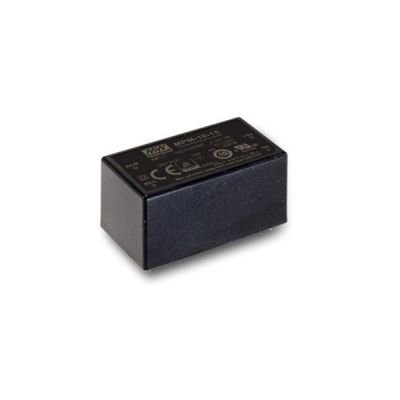

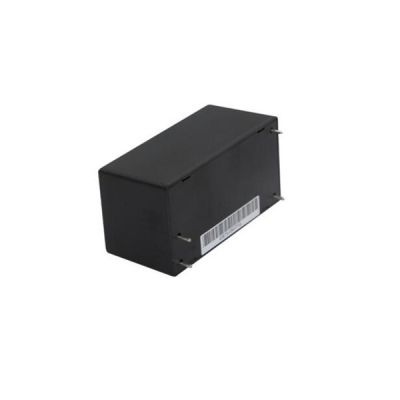

Meanwell MPM-45-48 is a 45W AC/DC module type medical power supply with 48V1.05A0.94A50.4W45.1W240mVp-p. This model is designed in high density and small size with Class II (no FG) double insulation, good dissipation, 2~5G anti-vibration, high EMC performance, and 4KV AC isolation, etc. Apart from them, the product features with the operation for 80~264VAC, low no load power consumption less than 0.1 W, and high efficiency up to 92.5%, so as to satisfy IEC/BS EN/EN60601-1 and ANSI/AAMIES60601-1version three with 2 X MOPP level. As a result of its longevity, high reliability, excellent quality, Meanwell MPM-45-48 is a very suitable solution for BF (patient contact) type medical device or relevant equipment.
Meanwell MPM-45-48 Encoding
| MPM | Series Name |
| 45 | Rated Wattage |
| 48 | Output Voltage |
| ST | Blank: PCB mounting Style |

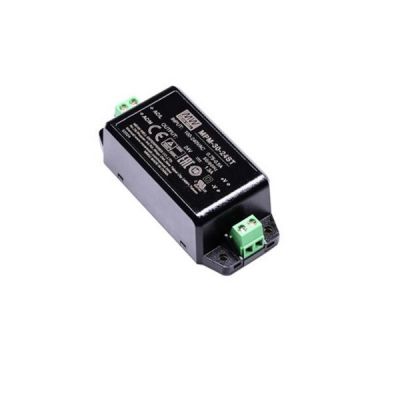

| ST: Screw Terminal Style |
Meanwell MPM-45-48 Specifications
| Model | MPM-45-48 | ||
| OUTPUT | DC VOLTAGE | 48V | |
| CURRENT | Peak (10Sec.) | 1.05A | |
| Convection | 0.94A | ||
| RATED POWER | Peak (10Sec.) | 50.4W | |
| Convection | 45.1W | ||
| RIPPLE & NOISE (max.) | 240mVp-p | ||
| VOLTAGE TOL ERANCE | ±2.0% | ||
| LINE REGULATION | ±0.5% | ||
| LOAD REGUL .ATION | ±0.5% | ||
| SETUP, RISE TIME | 1000ms, 30ms/230VAC 1000ms, 30ms/115VAC at full load | ||
| HOLD UP TIME (Typ.) | 50ms/230VAC 12ms/115VAC at full load | ||
| INPUT | VOLTAGE RANGE | 80 ~ 264VAC 113 ~ 370VDC | |
| FREQUENCY RANGE | 47 ~ 63Hz | ||
| EFFICIENCY (Typ.) | 92.00% | ||
| AC CURRENT (Typ.) | 1.2A/115VAC 0.6A/230VAC | ||
| INRUSH CURRENT(Typ.) | COLD START 30A/115VAC 60A/230VAC | ||
| LEAKAGE CURRENT | Touch current <100μA/264VAC | ||
| PROTECTION | OVERL OAD | 115% ~ 135% rated output power | |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||
| OVER VOLTAGE | 50.4-64.8V | ||
| Protection type : Shut down o/p voltage, re-power on to recover | |||
| OVER TEMPERATURE | Protection type : Shut down o/p voltage, re-power on to recover | ||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +80℃(Refer to "Derating Curve") | |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | ||
| STORAGE TEMP. | -40 ~ +85℃ | ||
| TEMP. COEFFICIENT | ±0.03%/℃(0 ~ 60℃) | ||
| SOLDERING TEMPERATURE | 260℃±5℃/10sec.max | ||
| VIBRATION | Blank:10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||
| ST:10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes | |||
| OPERATING ALTITUDE | 4000 meters / OVCⅡ | ||
| SAFETY & EMC | SAFETY STANDARDS | IEC60601-1, BS EN/EN60601-1, UL ANSI/AAMI ES60601-1(3.1 version), CAN/CSA-C22 3 Edition approved; rd EAC TP TC 004, Design refer to BS EN/EN60335-1(by request) | |
| ISOLATION LEVEL | Primary-Secondary: 2xMOPP | ||
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC | ||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | ||
| EMC IMMUNITY | BS EN/EN60601-1-2 | ||
| OTHERS | MTBF | 563.44Khrs min. MIL-HDBK-217F (25℃); 1530.14Khrs min. Telcordia TR/SR-332 (Bellcore) (25℃ | |
| DIMENSION | PCB mounting style : 87*52*29.5mm (L*W*H) Screw terminal style : 109*52*33.5mm (L*W*H) | ||
| PACKING | PCB mounting style : 0.185Kg;60pcs/12.1Kg/0.94CUFT Screw terminal style :0.206Kg;50pcs/11.3Kg/0.56CUFT | ||
Meanwell MPM-45-48 Features
l 3 years warranty
l lsolation Class Ⅱ
l 50W peak (10 sec.)
l 3.43"x2.05" compact size
l No minimum load required
l Extremely low leakage current
l Operating altitude up to 4000 meters
l No load power consumption<0. 1W
l Wide operating temp. range -30 ~ +80℃
l EMI Class B without additional components
l PCB chassis or screw terminal mounting version
l Protections: Short circuit/Overload/Over voltage
l Suitable for BF application with appropriate system consideration
l Medical safety approved (2 X MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601 -1
Meanwell MPM-45-48 Applications
l Portable medical device
l Medical computer monitor
l Mobile clinical workstation
l Medical examination instrument
Meanwell MPM-45-48 Mechanical Diagram
