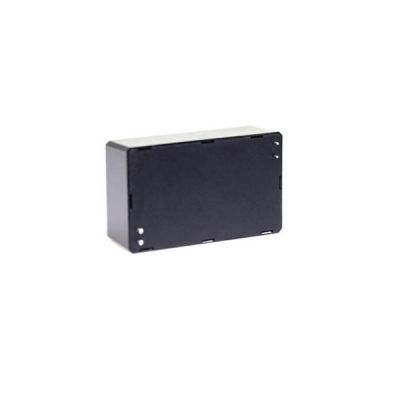

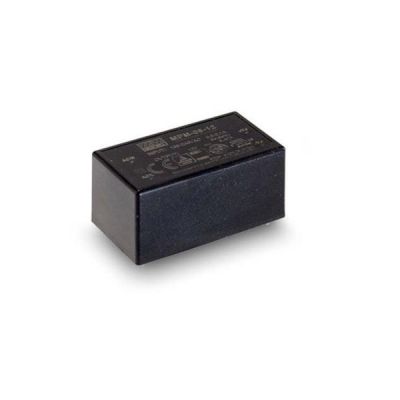

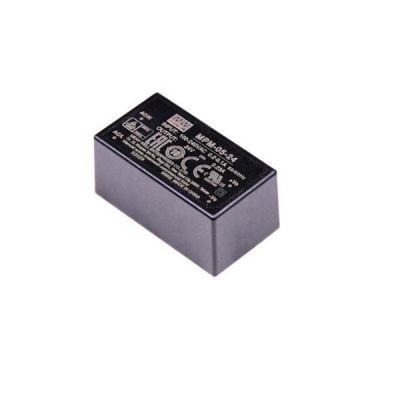

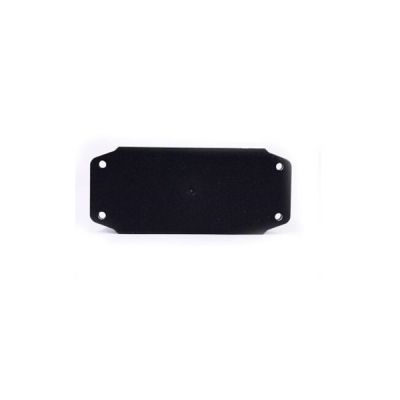

MPM-05-5
8.26
Details
Meanwell MPM- 05-5 is a 5W AC/DC module type medical grade power supply with 5V1A0-1A1.1A5W5.5W100mVp-p. It is designed in high density and small size (45.7*25.4*21.5mm) in pin type, and meanwhile highlighted with high efficiency reaching up to 82%, working for 80~ 264VAC and low no load power consumption below 0.075W. Additionally, MPM-05-5 provides the interior potting, 5G anti-vibration, high EMC performance, 4KV AC isolation, and so on, this permits to meet IEC/BS EN/EN60601-1 and ANSI/AAMI ES60601-1 version three with 2xMOPP level and ultra-low leakage current (<80 u A). Besides them, the product provides Class II (no FG) double insulation, outstanding dissipation and high lifespan. Thanks to its longevity, high reliability, excellent quality, Meanwell MPM- 05-5 is a very suitable solution for BF (patient contact) type medical device or relevant equipment.
Meanwell MPM-05-5 Specifications
| Model | MPM-05-5 | |
| OUTPUT | DC VOLTAGE | 5V |
| RATED CURRENT | 1A | |
| CURRENT RANGE | 0-1A | |
| PEAK CURRENT | 1.1A | |
| RATED POWER | 5W | |
| PEAK LOAD(10sec.) | 5.5W | |
| RIPPLE & NOISE (max.) | 100mVp-p | |
| VOLTAGE TOL ERANCE | ±2.5% | |
| LINE REGULATION | ±0.3% | |
| LOAD REGUL .ATION | ±0.5% | |
| SETUP, RISE TIME | 1000ms, 30ms/230VAC 1000ms, 30ms/115VAC at full load | |
| HOLD UP TIME (Typ.) | 40ms/230VAC 12ms/115VAC at full load | |
| INPUT | VOLTAGE RANGE | 80 ~ 264VAC |
| FREQUENCY RANGE | 47 ~ 440Hz | |
| EFFICIENCY (Typ.) | 78% | |
| AC CURRENT (Typ.) | 0.2A/115VAC 0.1A/230VAC | |
| INRUSH CURRENT(Typ.) | COLD START 25A/115VAC 45A/230VAC | |
| LEAKAGE CURRENT | Touch current <80μA/264VAC | |
| PROTECTION | OVERL OAD | 110% ~ 180% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 5.8-6.8V | |
| Protection type : Shut off o/p voltage, clamping by zener diode | ||
| OVER TEMPERATURE | Protection type : Shut down o/p voltage, recovers automatically after temperature goes down | |
| ENVIRONMENT | WORKING TEMP. | -40 ~ +85℃(Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +100℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03%/℃(0 ~ 50℃) | |
| SOLDERING TEMPERATURE | 260℃±5℃/10sec.max. | |
| VIBRATION | 10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| LEAD TEMPERATURE | 260±5℃,5s (max.) | |
| OPERATING ALTITUDE | 5000 meters | |
| SAFETY & EMC | SAFETY STANDARDS Note.6,9 | IEC60601-1, BS EN/EN60601-1, , UL ANSI/AAMI ES60601-1(3.1 version), CAN/CSA-C22 3 Edition approved ; rd EAC TP TC 004 Design refer to BS EN/EN60335-1(by request) |
| ISOLATION LEVEL | Primary-Secondary: 2xMOPP | |
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC | |
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC IMMUNITY | BS EN/EN60601-1-2 | |
| OTHERS | MTBF | 1799.5Khrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 45.7*25.4*21.5mm (L*W*H) or 1.8*1.0"0.85" inch | |
| PACKING | 0.035Kg; 270pcs/10.5Kg/0.94CUFT | |
Meanwell MPM-05-5 Features
l 1.8"x1" compact size
l 3 years warranty
l No minimum load required
l Typical lifetime>48K hours
l Extremely low leakage current
l Wide operating temp. range -40~+85℃
l MI class B for class I configuration
l Suitable for BF application with appropriate system consideration
l No load power consumption<0.075W
l Protections: Short circuit/Overload/Over voltage/Over temperature
l Medical safety approved (2XMOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
Meanwell MPM-05-5 Applications
l Portable medical device
l Medical computer monitor
l Mobile clinical workstation
l Medical examination instrument
Meanwell MPM-05-5 Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
