MFM-05-12

$12.91

Meanwell 5W High Reliable Green Medical On Board Type with 12V0.42A0-0.42A0.46A5W5.5W150mVp-p±2.5%±0.3%±0.5%

- +
Availability:In stock
SKU Meanwell MFM-05-12
Brand Meanwell
Details

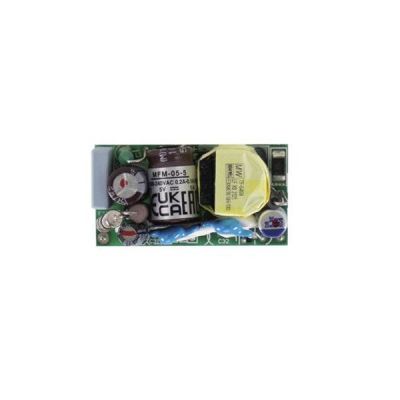

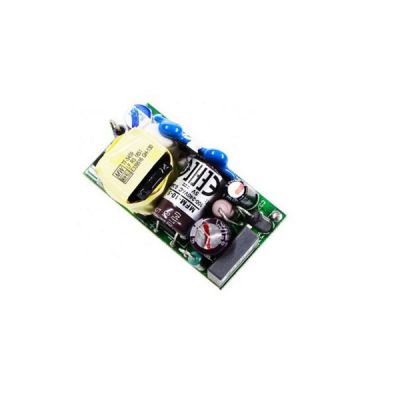

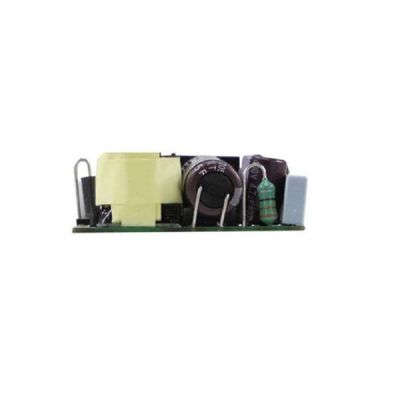

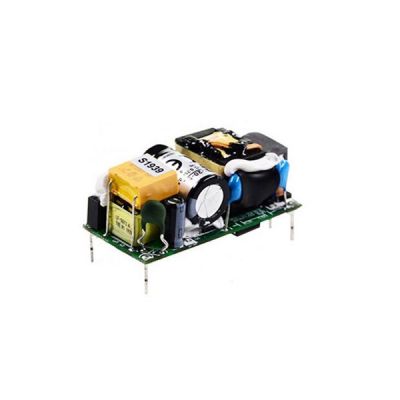

Meanwell MFM-05-12 is a 5W AC/DC on board type medical grade power with12V0.42A0-0.42A0.46A5W5.5W150mVp-p. it is designed in high density and small size (42*22.3* 20.5mm). Moreover, the item outstands with the operation for 80~264VAC, low no load power consumption, high efficiency reaching up to 82%. At the same time, MFM-05-12 is provided with Class II (no FG) double insulation, excellent dissipation, 5G anti-vibration, high EMC performance, 4KVAC isolation, etc. so it could fit IEC/BS EN/EN60601-1 and ANSI/AAMIES60601-1 version three with 2xMOPP level. Furthermore, it has the complete protection functions such as Short circuit, Overload, Over voltage and Over temperature. In light of its longevity, high reliability, excellent quality, Meanwell MFM- 05-12 is a very suitable solution for BF (patient contact) type medical device or relevant equipment.

Meanwell MFM-05-12

Meanwell MFM-05-12 Encoding

MFM Series Name
5 Rated Wattage
12 Output Voltage

Meanwell MFM-05-12 Specifications

Model MFM-05-12
OUTPUT DC VOLTAGE 12V
RATED CURRENT 0.42A
CURRENT RANGE 0-0.42A
PEAK CURRENT 0.46A
RATED POWER 5W
PEAK LOAD(10sec.) 5.5W
RIPPLE & NOISE (max.) 150mVp-p
VOLTAGE TOL ERANCE  ±2.5%
LINE REGULATION ±0.3%
LOAD REGUL .ATION ±0.5%
SETUP, RISE TIME 1000ms, 30ms/230VAC 1000ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.) 40ms/230VAC 12ms/115VAC at full load
INPUT VOLTAGE RANGE 80 ~ 264VAC
FREQUENCY RANGE 47 ~ 440Hz
EFFICIENCY (Typ.) 80%
AC CURRENT (Typ.) 0.2A/115VAC 0.1A/230VAC
INRUSH CURRENT(Typ.) COLD START 25A/115VAC 45A/230VAC
LEAKAGE CURRENT Touch current <80μA/264VAC
PROTECTION OVERL OAD 110% ~ 180% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 13.8-16.2V
Protection type : Shut off o/p voltage, clamping by zener diode
OVER TEMPERATURE Protection type : Shut down o/p voltage, recovers automatically after temperature goes down
ENVIRONMENT WORKING TEMP. -40 ~ +85(Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +100, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.03%/(0 ~ 50)
SOLDERING TEMPERATURE 260±5/10sec.max.
VIBRATION 10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes
OPERATING ALTITUDE 5000 meters
SAFETY & EMC SAFETY STANDARDS Note.6,9 IEC60601-1, BS EN/EN60601-1, EAC TP TC 004, UL ANSI/AAMI ES60601-1(3.1 version), CAN/CSA-C22 3rd Edition approved ; Design refer to BS EN/EN60335-1(by request)
ISOLATION LEVEL Primary-Secondary: 2xMOPP
WITHSTAND VOLTAGE I/P-O/P:4KVAC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
EMC IMMUNITY BS EN/EN60601-1-2
OTHERS MTBF 9337.3K hrs min. Telcordia SR-332 (Bellcore) ; 1799.5K hrs min. MIL-HDBK-217F (25)
DIMENSION 42*22.3*20.5mm (L*W*H) or 1.65"*0.88"0.80" inch
PACKING 0.018Kg; 270pcs/5.8Kg/0.94CUFT

Meanwell MFM-05-12 Features

l  3 years warranty

l  1.65"x0.88" compact size

l  No load power consumption<0.075W

l  Extremely low leakage current

l  Wide operating temp. range -40~+85℃

l  EMI class B for classⅡconfiguration

l  No minimum load required

l  Typical lifetime > 52K hours

l  Protections: Short circuit/Overload/Over voltage/Over temperature

l  Suitable for BF application with appropriate system consideration

l  Medical safety approved (2 X MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1

Meanwell MFM-05-12 Features

Meanwell MFM-05-12 Applications

l  Portable medical device

l  Mobile clinical workstation

l  Medical computer monitor

l  Medical examination instrument

Meanwell MFM-05-12 Applications

Meanwell MFM-05-12 Mechanical Diagram

Meanwell MFM-05-12 Mechanical DiagramMeanwell MFM-05-12 Mechanical Diagram
