MDR-60-48
14.38

MDR-60-48

$14.38

Meanwell 60W Single Output Industrial DIN Rail Power Supply with 48V1.25A0-1.25A60W200mVp-p48-56V±1.0%±1.0%±1.0%

- +
Availability:In stock
SKU Meanwell MDR-60-48
Brand Meanwell
Details

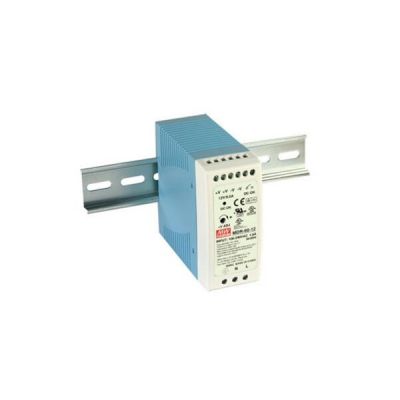

Meanwell MDR-60-48 is Single Output Ultra Slim Industrial DIN Rail Power Supply with 48V1.25A0-1.25A60W200mVp-p48-56V. It could be set up on DIN rail TS-35/7.5 or 15 and natural air convection cooling, and this model is also with Built-in active DC OK relay contact, provided with short-circuit, overload and over-voltage protections. As the flexible DIN rail mounting system increases the installation speed, all equipment can be easily snapped into the metal rail. Moreover, MDR-60-48 could be easily arranged on the DIN rail using a closed junction box or in a location with limited space. Similar devices can be installed in close proximity to each other, therefore, reducing the wiring required. At the same time, MDR-60-48 is equipped with Class l, Div 2 Hazardous L ocations T4 and and undergoing 100% full load burn-in test. In view of its high efficiency, high reliability and long longevity, Meanwell MDR-60-48 is widely applied in a variety of automation, instrumentation and industrial applications.

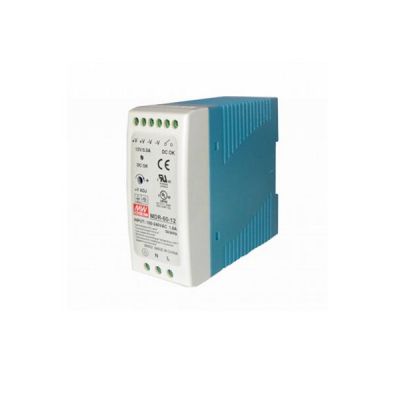

Meanwell MDR-60-48

Meanwell MDR-60-48 Specifications

Model MDR-60-48
Output DC VOLTAGE 48V
RATED CURRENT 1.25A
CURRENT RANGE 0-1.25A
RATED POWER  60W
RIPPLE & NOISE (max.)  200mVp-p
VOLTAGE ADJ. RANGE 48-56V
VOLTAGE TOLERANCE ±1.0%
LINE REGUL ATION ±1.0%
LOAD REGULATION ±1.0%
SETUP, RISE TIME 500ms, 30ms/230VAC 500ms, 30ms/115VAC at full load
HOLD UP TIME  50ms/230VAC 20ms/115VAC at full load
Input VOLTAGE RANGE 85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE 47 - 63Hz
EFFICIENCY (Typ.)  87.00%
AC CURRENT (Typ.) 1.8A/115VAC 1A/230VAC
INRUSH CURRENT (Typ. ) COLD START 30A/115VAC 60A/230VAC
LEAKAGE CURRENT <1mA / 240VAC
PROTECTION OVERLOAD 105 ~ 150% rated output power
Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE 57.6 ~ 64.8V
Protection type : Shut down o/p voltage, re-power on to recover
FUNCTION DC OK ACTIVE SIGNAL Relay contact rating(max.): 30V/1A resistive
ENVIRONMENT WORKING TEMP -20 ~ +70(Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/(0 ~ 50)
VIBRATION Component : 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes ; Mounting : Compliance to IEC60068-2-6
SAFETY &EMC SAFETY STANDARDS UL508, UL62368-1, TUV BS EN/EN62368-1,Class I, Div. 2 Group A, B, C, D Hazardous Locations T4, EAC TP TC 004,BSMI CNS14336-1, AS/NZS 60950.1 , IS13252(Part1)/IEC60950-1approved
WITHSTAND VOLTAGE I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:>100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55032 (CISPR32), BS EN/EN61204-3 Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020, CNS13438 Class B
EMC IMMUNITY Compliance to BS EN/EN61000-4-2, 3, 4, 5, 6, 8, 11, BS EN/EN55024, BS EN/EN61000-6-2, BS EN/EN61204-3, heavy industry level, criteria A, EAC TP TC 020
Others MTBF 299.2K hrs min. MIL-HDBK-217F (25)
DIMENSION 40*90*100mm (W*H*D)
PACKING 0.33Kg; 42pcs/14.8Kg/0.82CUFT

Meanwell MDR-60-48 Features

l  3 years warranty

l  DC OK relay contact

l  100% full load burn-in test

l  Universal AC input/Full range

l  LED indicator for power on

l  Cooling by free air convection

l  Class Il.Div 2 Hazardous L ocations T4

l  No load power consumption<0. 75W

l  Can be installed on DIN rail TS-35/7.5 or 15

l  Protections: Short circuit / Overload / Over voltage

Meanwell MDR-60-48 Features

Meanwell MDR-60-48 Mechanical Diagram

Meanwell MDR-60-48 Mechanical Diagram
