Meanwell 20W Single Output Industrial DIN Rail Power Supply with 24V1A0-1A24W150mVp-p21.6-26.4V±1.0%±1.0%±1.0%

- +
Availability:In stock
SKU Meanwell MDR-20-24
Brand Meanwell
Details

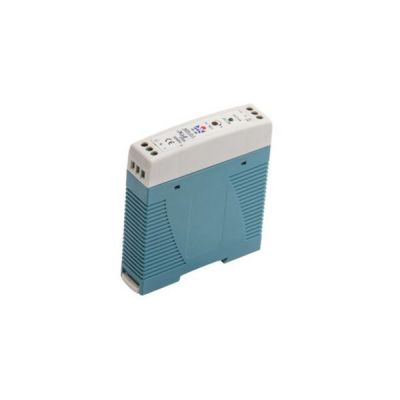

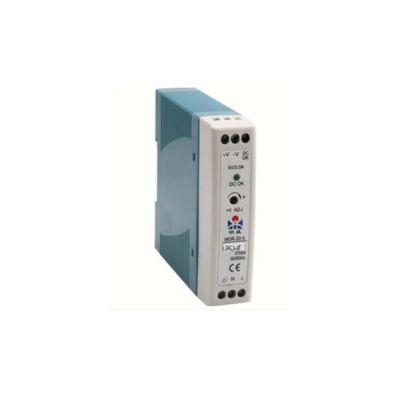

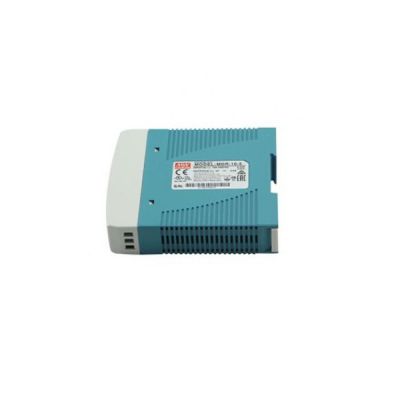

Meanwell MDR-20-24 is an ultra-thin single-output DIN rail power supply with 24V1A0-1A24W150mVp-p21.6-26.4V. It is installed on DIN rail TS-35/7.5 or TS-35/15, and cooled by natural air convection. This model is also with Built-in active DC OK signal. Because the flexible DIN rail mounting system increases the installation speed, all equipment can be easily snapped into the metal rail. Moreover, Meanwell MDR-20-24 could be easily arranged on the DIN rail using a closed junction box or in a location with limited space. Similar devices can be installed in close proximity to each other, thus reducing the wiring required. What’s more, MDR-20-24 offers short-circuit, overload and over-voltage protection modes. Most power supplies are convectively cooled, so no cooling fans are required. In light of these points, Meanwell MDR-20-24 is widely applied in a variety of automation, instrumentation and industrial applications such as power various DC operating equipment including sensors, motors, actuators, solenoid valves and relays.Meanwell MDR-20-24 Features

Meanwell MDR-20-24 Specifications

Model MDR-20-24
Output DC VOLTAGE 24V
RATED CURRENT 1A
CURRENT RANGE 0-1A
RATED POWER  24W
RIPPLE & NOISE (max.)  150mVp-p
VOLTAGE ADJ. RANGE 21.6-26.4V
VOLTAGE TOLERANCE ±1.0%
LINE REGUL ATION ±1.0%
LOAD REGULATION ±1.0%
SETUP, RISE TIME 500ms, 30ms/230VAC 1000ms, 30ms/115VAC at full load
HOLD UP TIME  50ms/230VAC 20ms/115VAC at full load
Input VOLTAGE RANGE 85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE 47 - 63Hz
EFFICIENCY (Typ.)  84.00%
AC CURRENT (Typ.) 0.55A/115VAC 0.35A/230VAC
INRUSH CURRENT (Typ. ) COLD START 20A/115VAC 40A/230VAC
LEAKAGE CURRENT <1mA / 240VAC
PROTECTION OVERLOAD 105 ~ 160% rated output power
Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE 27.6-32.4V
Protection type : Shut down o/p voltage, re-power on to recover
ENVIRONMENT WORKING TEMP -20 ~ +70(Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/(0 ~ 50)
VIBRATION Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6
FUNCTION DC OK ACTIVE SIGNAL (max.) 18 ~ 27V / 20mA
SAFETY &EMC SAFETY STANDARDS UL508, TUV BS EN/EN62368-1, EAC TP TC 004, BSMI CNS14336-1, AS/NZS 62368.1 approved
WITHSTAND VOLTAGE I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55032 (CISPR32), BS EN/EN61204-3 Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020, CNS13438 Class B
EMC IMMUNITY Compliance to BS EN/EN61000-4-2, 3, 4, 5, 6, 8, 11, BS EN/EN55024,BS EN/EN61000-6-1,BS EN/EN61204-3, light industry level, criteria A, EAC TP TC 020
Others MTBF 236.9K hrs min. MIL-HDBK-217F (25)
DIMENSION 22.5*90*100mm (W*H*D)
PACKING 0.17Kg; 72pcs/13.2Kg/1.04CUFT

Meanwell MDR-20-24 Features

l  3 years warranty

l  Universal AC input/Full range

l  Built in DC OK active signal

l  LED indicator for power on

l  100% full load burn-in test

l  Cooling by free air convection

l  No load power consumption<O. 75W

l  Can be installed on DIN rail TS-35/7.5 or 15

l  Protections: Short circuit/Overload/Over voltage
