DEPARTMENTS

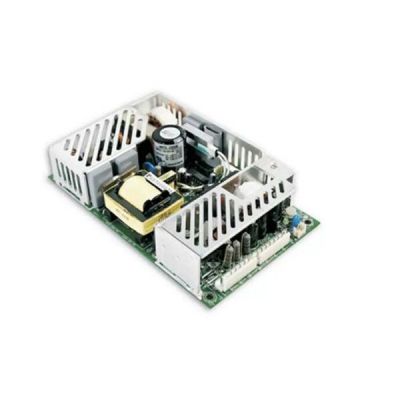

MD-100R
12.03
MD-100R

MD-100R

$12.03
- +
Availability:In stock
SKU Meanwell MD-100R
Brand Meanwell
Details

Meanwell MD-100 Series Model Specifications

OUTPUT VOLTAGE CODE MD-100R MD-100S MD-100T MD-100U MD-100V MD-100W MD-100X
Output( MS-150) DC VOLTAGE 5V 5V 5V 12V 5V 15V 24V 5V 24V 12V 12V 12V 15V 15V
RATED CURRENT 10A 8A 10A 4.2A 10A 3.4A 2.5A 8A 2.5A 3.4A 5A 3.4A 4A 2.7A
CURRENT RANGE 2-10A 0-8A 2-10A 0-5.8A 2-10A 0-4.7A 0.5-3A 0-10A 0.6-3A 0-4.7A 1-5A 0-5.8A 1-4.7A 0-4.7A
RATED POWER 90W 100.4W 101W 100W 100.8W 100.8W 100.5W
RIPPLE & NOISE (max.)  100mVp-p 100mVp-p 100mVp-p 150mVp-p 100mVp-p 150mVp-p 200mVp-p 100mVp-p 240mVp-p 20mVp-p 120mVp-p 120mVp-p 150mVp-p 150mVp-p
VOLTAGE ADJ. RANGE 4.75-5.5V 4.75-5.5V 4.75-5.5V 11.4-13.2V 4.75-5.5V 14.2-16.5V 22.8-26.4V 4.75-5.5V 22.8-26.4V 11.4-13.2V 11.4-13.2V 11.4-13.2V 14.2-16.5V 14.2-16.5V
VOLTAGE TOLERANCE ±3.0% ±3.0% ±3.0% ±3.0% ±3.0% ±3.0% ±3.0% ±3.0% ±2% ±3.0% ±2% ±3.0% ±2% ±3.0%
LINE REGUL ATION ±1.0% ±1.0% ±1.0% ±1.0% ±1.0% ±1.0% ±1.0% ±1.0% ±0.5% ±1.0% ±0.5% ±1.0% ±0.5% ±1.0%
LOAD REGULATION ±2.0% ±2.0% ±2.0% ±2.0% ±2.0% ±2.0% ±2.0% ±2.0% ±1.0% ±2.0% ±1.0% ±2.0% ±1.0% ±2.0%
SETUP, RISE, HOLD UP TIME 1500ms, 50ms, 20ms at full load
PROTECTION OVERLOAD 105 ~ 150% rated output power
Protection type : Shut down o/p voltage, re-power on to recover
OVER VOLTAGE 5.6-7.2V 5.6-7.2V 5.6-7.2V 13.3-17V 5.6-7.2V 16.6-22V 26.5-34V 5.6-7.2V 26.5-34V 13.3-17V 13.3-17V 13.3-17V 16.6-22V 16.6-22V
Protection type : Shut down o/p voltage, re-power on to recover
FUNCTION REMOTE INHIBIT CONTROL RC+/RC-: 0 ~ 0.8V or OPEN, POWER ON RC+/RC-: 4 ~ 12V POWER OFF

Meanwell MD-100 Series Features

l  3 years warranty

l  Built in active PFC, PF>0.95

l  Universal AC input/ full range

l  Remote Control on every individual output module

l  Remote Sense on every single output module (MS-75, 150,210,300,360)

l  Remote margin/V-Program (MS-210/360)

l  Built in parallel function (MS-2 10/300/360)

l  Protections: Short circuit/Overload/Over voltage for all output modules

l  Additional 12V/0.1A auxiliary output for remote control

l  Cooling by built-in DC fan with fan alarm function

l  Various output configuration is selectable
