LRS-35-24
10.57

LRS-35-24

$10.57

Meanwell 35W Single Output Switching Power Supply 24V1.5A0-1.5A36W150(max.) mVp-p21.6 ~ 28.8V±1%±0.5%±0.5%

- +
Availability:In stock
SKU Meanwell LRS-35-24
Brand Meanwell
Details

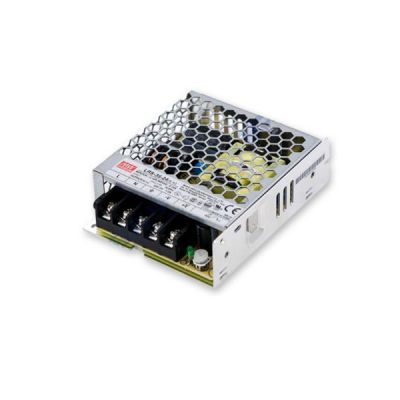

Meanwell LRS-35-24 is a 35W single-output AC/DC Enclosed Switching Power Supply. Except of its high efficiency, the metallic mesh case design enhances its heat dissipation, and operate from -30C to 70C under air convection without fan. LRS-35-24 provides an extremely low no load power consumption, and allow the end system to meet the worldwide energy requirement easily. It has the complete protection functions and 5G anti-vibration capability as well. Considering its high efficiency, long life and high reliability.LRS-35-24 gives a high price-to-performance power supply solution for various industrial applications.

Meanwell LRS-35-24 Specifications

Meanwell LRS-35-24 Specifications

Model LRS-35-24
Output DC VOLTAGE (V) 24V
RATED CURRENT 1.5A
CURRENT RANGE 0-1.5A
RATED POWER 36W
RIPPLE & NOISE 150(max.) mVp-p
VOLTAGE ADJ. RANGE 21.6 ~ 28.8V
VOLTAGE TOLERANCE ±1%
LINE REGUL ATION ±0.5%
LOAD REGULATION ±0.5%
SETUP, RISE TIME 1000ms, 30ms/230VAC 2000ms,30ms/115VAC at full load
HOLD UP TIME  30ms/230VAC 12ms/115VAC at full load
Input VOLTAGE RANGE 85 ~ 264VAC 120 ~ 373VDC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.)  88%
AC CURRENT (Typ.) 0.7A/115VAC 0.42A/230VAC
INRUSH CURRENT (Typ. ) COLD START 45A/230VAC
LEAKAGE CURR ENT <0.75mA / 240VAC
PROTECTION OVERL OAD 110 ~ 150% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 28.8 ~ 33.6V
 Protection type : Shut down o/p voltage, re-power on to recover

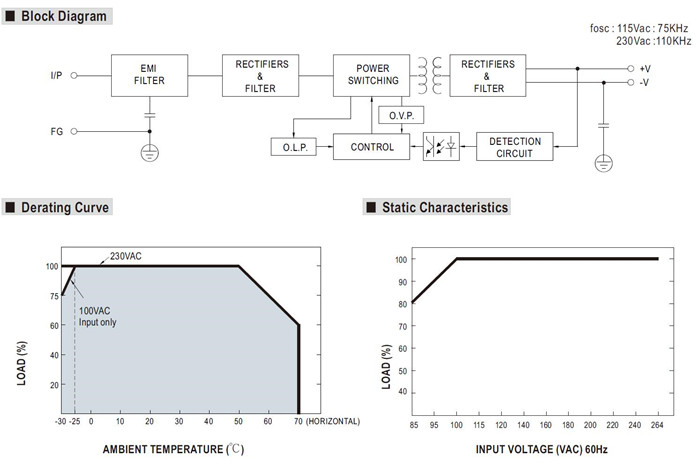

ENVIRONMENT WORKING TEMP. -30 ~ +70 (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.03%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes
OVER VOLTAGE CATEGORY ; According to EN61558, EN50178, EN60664-1, EN62477-1; altitude up to 2000 meters
SAFETY &EMC SAFETY STANDARDS UL62368-1, TUV EN62368-1, EN60335-1, EN61558-1/-2-16,CCC GB4943.1, BSMI CNS14336-1, EAC TP TC 004,
AS/NZS 60950.1(by CB),KC K60950-1(for LRS-35-12/24 only), BIS IS13252(Part1): 2010/IEC 60950-1: 2005 approved
WITHSTAND VOLTAGE I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.25KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to EN55032 (CISPR32) Class B, EN55014, EN61000-3-2,-3, GB/T 9254, BSMI CNS13438, EAC TP TC 020,
KC KN32,KN35(for LRS-35-12/24 only)
EMC IMMUNITY Compliance to EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 (EN50082-2), heavy industry level, criteria A, EAC TP TC 020,
KC KN32,KN35(for LRS-35-12/24 only)
Others MTBF 763.6K hrs min. MIL-HDBK-217F (25)
DIMENSION 99*82*30mm (L*W*H)
PACKING 0.23Kg ; 60pcs/14.8Kg/0.88CUFT

Meanwell LRS-35-24 Features

l  3 years warranty

l  Universal AC input/ Full range

l  LED indicator for power on

l  Over voltage category III

l  1 00% full load burn-in test

l  Withstand 300VAC surge input for 5 second

l  No load power consumption<0. 2W

l  Miniature size and 1U low profile

l  High operating temperature up to 70 degree

l  Protections: Short circuit/Overload/Over voltage

l  Cooling by free air convection

l  Operating altitude up to 5000 meters

l  Withstand 5G vibration test

l  High efficiency, long life and high reliability

l  Compliance to IEC/EN 60335-1(PD3) and IEC/EN61558-1, -2-16 for household appliances

Meanwell LRS-35-24 Features

Meanwell LRS-35-24 Applications

l  Industrial automation machinery

l  Industrial control system

l  Mechanical and electrical equipment

l  Electronic instruments, equipment or apparatus

l  Household appliances

Meanwell LRS-35-24 Applications

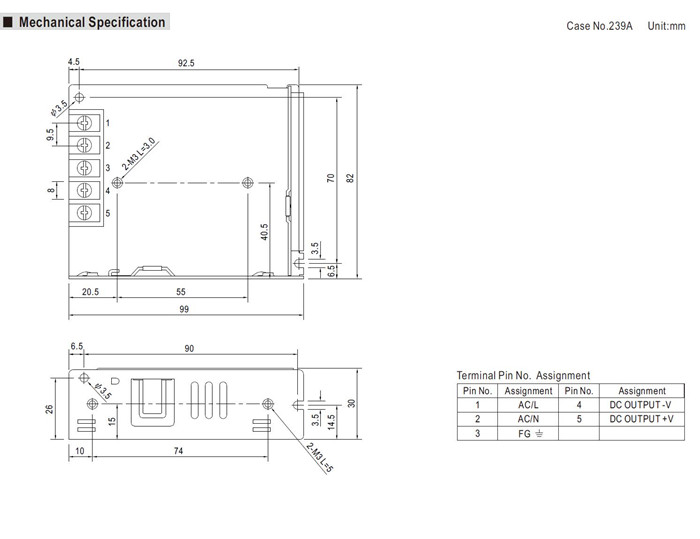

Meanwell LRS-35-24 Mechanical Diagram

Meanwell LRS-35-24 Mechanical DiagramMeanwell LRS-35-24 Mechanical Diagram
