LRS-150F-48
16.28

LRS-150F-48

$16.28

Meanwell 150W Single Output Switching Power Supply  48V3.3A0-3.3A158.4W20043.2 ~ 52.8V±1%±0.5%±0.5%

- +
Availability:In stock
SKU Meanwell LRS-150F-48
Brand Meanwell
Details

Meanwell LRS-150F-48 is 150W single-output enclosed type power supply with 48V3.3A0-3.3A158.4W and 30mm low-profile design. The design of metallic mesh case enhances heat dissipation, and make it work from -30℃ through 70℃ under air convection with no fan because of the high efficiency reaching up to 90%.With an extremely low no load power consumption less than 0.5W, it gives the end system to easily fulfill the worldwide energy requirement and accord the international safety regulations like TUV BS EN/EN62368-1,BS EN/EN60335-1,BS EN/EN61558-1/-2-16, UL62368-1 and GB4943. Furthermore, this model has the complete protection functions and 5G anti-vibration capability. Considering the high efficiency, long life and high reliability, Meanwell LRS-150F-48 functions as a high price-to-performance power supply solution for various industrial applications

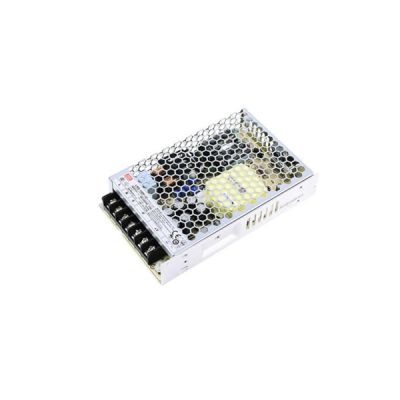

LRS-150F-48 Meanwell LRS-150F-48 Price and datasheet ycict

Meanwell LRS-150F-48 Specifications

Model LRS-150F-48
Output DC VOLTAGE 48V
RATED CURRENT 3.3A
CURRENT RANGE 0-3.3A
RATED POWER 158.4W
RIPPLE & NOISE (max.) mVp-p 200
VOLTAGE ADJ. RANGE 43.2 ~ 52.8V
VOLTAGE TOLERANCE ±1%
LINE REGUL ATION ±0.5%
LOAD REGULATION ±0.5%
SETUP, RISE TIME 500ms, 30ms/230VAC 500ms,30ms/115VAC at full load
HOLD UP TIME  16ms/230VAC 12ms/115VAC at full load
Input VOLTAGE RANGE 85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.)  90.00%
AC CURRENT (Typ.) 3A/115VAC 1.7A/230VAC
INRUSH CURRENT (Typ. ) COLD STAR 60A/230VAC
LEAKAGE CURR ENT <0.75mA / 240VAC
PROTECTION OVERL OAD 110 ~ 140% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 55.2 ~ 64.8V
Protection type : Shut down o/p voltage, re-power on to recover
ENVIRONMENT WORKING TEMP. -30 ~ +70 (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.03%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes
OVER VOLTAGE CATEGORY ; Compliance to BS EN/EN61558, BS EN/EN50178, BS EN/EN60664-1, BS EN/EN62477-1; altitude up to 2000 meters
SAFETY &EMC SAFETY STANDARDS UL62368-1, TUV BS EN/EN62368-1, BS EN/EN60335-1, BS EN/EN61558-1/-2-16,CCC GB4943.1, BSMI CNS14336-1,EAC TP TC004, AS/NZS 62368.1(by CB) approved
WITHSTAND VOLTAGE I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.25KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy industry level, criteria A, EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy industry level, criteria A, EAC TP TC 020
Others MTBF 648.6K hrs min. MIL-HDBK-217F (25)
DIMENSION 159*97*30mm (L*W*H)
PACKING 0.48Kg ; 30pcs/15.4Kg/0.75CUFT

Meanwell LRS-150F-48 Features

l  3 years warranty

l  Universal AC input/ Full range

l  No load power consumption<0.5W

l  Miniature size and 1U low profile

l  High operating temperature up to 70 degree

l  Withstand 300VAC surge input for 5 second

l  Cooling by free air convection

l  Operating altitude up to 5000 meters

l  Withstand 5G vibration test

l  High efficiency, long life and high reliability

l  LED indicator for power on

l  Over voltage category III

l  100% full load burn-in test

l  Protections: Short circuit /Overload/Over voltage/Over temperature

l  Compliance to IEC/BS EN/EN 60335-1(PD3) andIEC/BS EN/EN61558-1, 2-16 for household appliances

Meanwell LRS-150F-48 Features

Meanwell LRS-150F-48 Applications

l  Household appliances

l  Industrial control system

l  Industrial automation machinery

l  Mechanical and electrical equipment

l  Electronic instruments, equipment or apparatus

Meanwell LRS-150F-48 Applications

Meanwell LRS-150F-48 Mechanical Diagram

Meanwell LRS-150F-48 Mechanical DiagramMeanwell LRS-150F-48 Mechanical Diagram
