LRS-150F-15
15.68

LRS-150F-15

$15.68

Meanwell 150W Single Output Switching Power Supply 15V10A0-10A150W15013.5 ~ 18V±1%±0.5%±0.5%

- +
Availability:In stock
SKU Meanwell LRS-150F-15
Brand Meanwell
Details

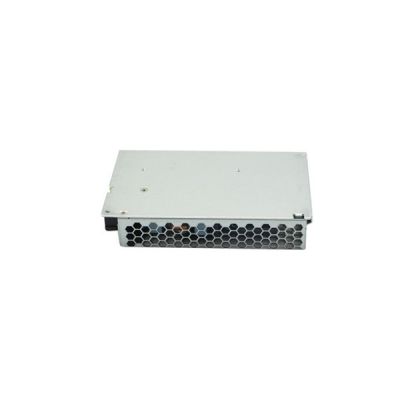

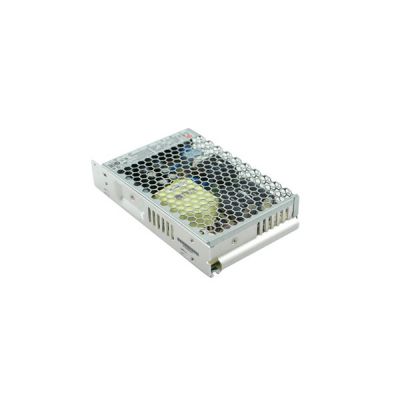

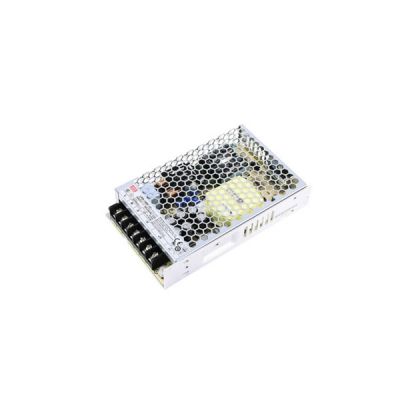

Meanwell LRS-150F-15 is 150W single-output enclosed type power supply with 15V10A0-10A150W.With its high efficiency reaching up to 90%, the design of metallic mesh case enhances heat dissipation, and make it work from -30℃ through 70℃ under air convection without fan. Because of an extremely low no load power consumption less than 0.5W, it allows the end system to easily meet the worldwide energy requirement and complied with the international safety regulations like TUV BS EN/EN62368-1,BS EN/EN60335-1,BS EN/EN61558-1/-2-16, UL62368-1 and GB4943.Moreover, this model has the complete protection functions and 5G anti-vibration capability. Considering the high efficiency, long life and high reliability, Meanwell LRS-150F-15 functions as a high price-to-performance power supply solution for various industrial fields.

Meanwell LRS-150F-15 Specifications

Meanwell LRS-150F-15 Specifications

Model LRS-150F-15
Output DC VOLTAGE 15V
RATED CURRENT 10A
CURRENT RANGE 0-10A
RATED POWER 150W
RIPPLE & NOISE (max.) mVp-p 150
VOLTAGE ADJ. RANGE 13.5 ~ 18V
VOLTAGE TOLERANCE ±1%
LINE REGUL ATION ±0.5%
LOAD REGULATION ±0.5%
SETUP, RISE TIME 500ms, 30ms/230VAC 500ms,30ms/115VAC at full load
HOLD UP TIME  16ms/230VAC 12ms/115VAC at full load
Input VOLTAGE RANGE 85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.)  89.00%
AC CURRENT (Typ.) 3A/115VAC 1.7A/230VAC
INRUSH CURRENT (Typ. ) COLD STAR 60A/230VAC
LEAKAGE CURR ENT <0.75mA / 240VAC
PROTECTION OVERL OAD 110 ~ 140% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 18.75 ~ 21.75V
Protection type : Shut down o/p voltage, re-power on to recover

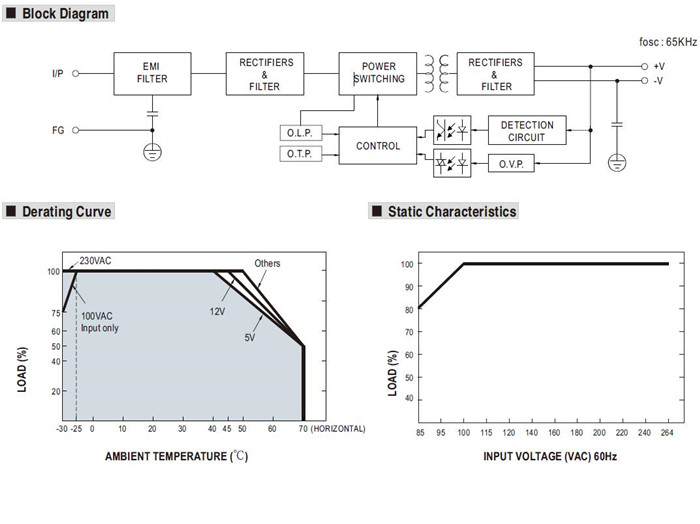

ENVIRONMENT WORKING TEMP. -30 ~ +70 (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.03%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes
OVER VOLTAGE CATEGORY ; Compliance to BS EN/EN61558, BS EN/EN50178, BS EN/EN60664-1, BS EN/EN62477-1; altitude up to 2000 meters
SAFETY &EMC SAFETY STANDARDS UL62368-1, TUV BS EN/EN62368-1, BS EN/EN60335-1, BS EN/EN61558-1/-2-16,CCC GB4943.1, BSMI CNS14336-1,EAC TP TC004, AS/NZS 62368.1(by CB) approved
WITHSTAND VOLTAGE I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.25KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy industry level, criteria A, EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy industry level, criteria A, EAC TP TC 020
Others MTBF 648.6K hrs min. MIL-HDBK-217F (25)
DIMENSION 159*97*30mm (L*W*H)
PACKING 0.48Kg ; 30pcs/15.4Kg/0.75CUFT

Meanwell LRS-150F-15 Features

l  3 years warranty

l  Over voltage category III

l  100% full load burn-in test

l  Universal AC input/ Full range

l  LED indicator for power on

l  Withstand 5G vibration test

l  Miniature size and 1U low profile

l  Cooling by free air convection

l  Operating altitude up to 5000 meters

l  No load power consumption<0.5W

l  High operating temperature up to 70℃

l  High efficiency, long life and high reliability

l  Withstand 300VAC surge input for 5 second

l  Protections: Short circuit /Overload/Over voltage/Over temperature

l  Compliance to IEC/BS EN/EN 60335-1(PD3) andIEC/BS EN/EN61558-1, 2-16 for household appliances

Meanwell LRS-150F-15 Features

Meanwell LRS-150F-15 Applications

l  Household appliances

l  Industrial control system

l  Industrial automation machinery

l  Mechanical and electrical equipment

l  Electronic instruments, equipment or apparatus

Meanwell LRS-150F-15 Applications

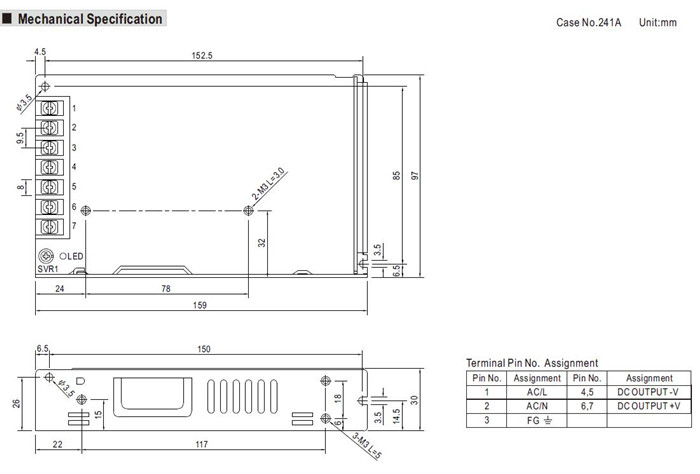

Meanwell LRS-150F-15 Mechanical Diagram

Meanwell LRS-150F-15 Mechanical DiagramMeanwell LRS-150F-15 Mechanical Diagram
