LRS-150-24
13.41

LRS-150-24

$13.41

Meanwell 150W Single Output Switching Power Supply  24V6.5A0-6.5A156W20021.6 ~ 28.8V±1%±0.5%±0.5%

- +
Availability:In stock
SKU Meanwell LRS-150-24
Brand Meanwell
Details

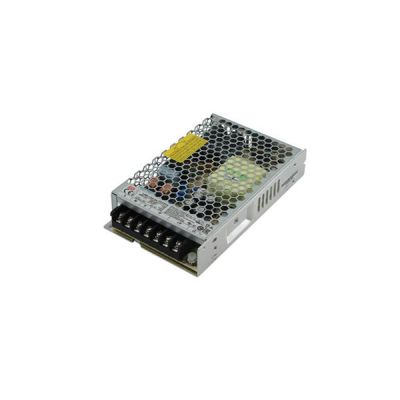

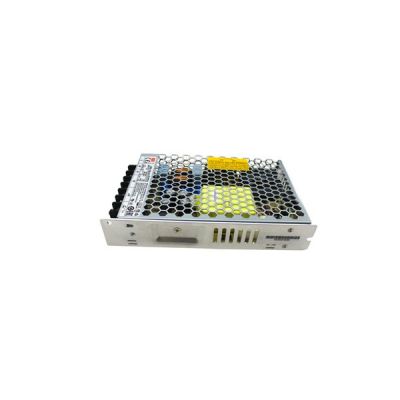

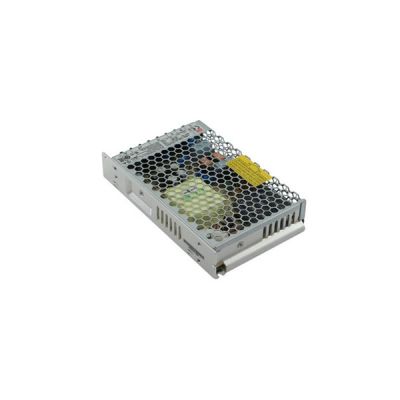

Meanwell LRS-150-24 is a 150W single-output enclosed type power supply with 24V6.5A0-6.5A156W. In addition to the high efficiency reaching up to 90%, the design of the metallic mesh case enhances heat dissipation, and work from -30C through 70C under air convection with no fan. With Delivering an extremely low no load power consumption,LRS-150-24 allows the end system to easily meet the worldwide energy requirement and the international safety regulations like TUV BS EN/EN62368-1BS EN/EN60335-1, BS EN/EN61 558-1/-2-16, UL62368-1 and GB4943.Moreover, it has the complete protection functions and 5G anti-vibration capability. Because of its high efficiency, long life and high reliability, Meanwell LRS-1 50-24 acts as a high price-to-performance power supply solution for various industrial areas.

Meanwell LRS-150-24 Specifications

Meanwell LRS-150-24 Specifications

Model LRS-150-24
Output DC VOLTAGE 24V
RATED CURRENT 6.5A
CURRENT RANGE 0-6.5A
RATED POWER 156W
RIPPLE & NOISE (max.) mVp-p 200
VOLTAGE ADJ. RANGE 21.6 ~ 28.8V
VOLTAGE TOLERANCE ±1%
LINE REGUL ATION ±0.5%
LOAD REGULATION ±0.5%
SETUP, RISE TIME 500ms, 30ms/230VAC 500ms,30ms/115VAC at full load
HOLD UP TIME  40ms/230VAC 35ms/115VAC at full load
Input VOLTAGE RANGE 85 ~ 132VAC / 170 ~ 264VAC by switch 240 ~ 370VDC(switch on 230VAC)
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.)  89.00%
AC CURRENT (Typ.) 3A/115VAC 1.7A/230VAC
INRUSH CURRENT (Typ. ) COLD STAR 60A/230VAC
LEAKAGE CURR ENT <0.75mA / 240VAC
PROTECTION OVERL OAD 110 ~ 140% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 28.8 ~ 33.6V
Protection type : Shut down o/p voltage, re-power on to recover
ENVIRONMENT WORKING TEMP. -30 ~ +70 (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.03%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes
OVER VOLTAGE CATEGORY ; Compliance to BS EN/EN61558, BS EN/EN50178, BS EN/EN60664-1, BS EN/EN62477-1; altitude up to 2000 meters
SAFETY &EMC SAFETY STANDARDS UL 62368-1, TUV BS EN/EN62368-1, BS EN/EN60335-1, BS EN/EN61558-1/-2-16,CCC GB4943.1,BSMI CNS14336-1, EAC TP TC 004,S/NZS62368.1(by CB),KC K60950-1(for LRS-100-12/24 only), BIS IS13252(Part1): 2010/IEC 60950-1: 2005 approved
WITHSTAND VOLTAGE I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.25KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN55014, BS EN/EN61000-3-2,-3, GB/T 9254, BSMI
CNS13438, EAC TP TC 020,KC KN32,KN35(for LRS-100-12/24 only)
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy industry level, criteria A, EAC TP TC 020,KC KN32,KN35(for LRS-100-12/24 only)
Others MTBF 601K hrs min. MIL-HDBK-217F (25)
DIMENSION 159*97*30mm (L*W*H)
PACKING 0.48Kg ; 30pcs/15.4Kg/0.75CUFT

Meanwell LRS-150-24 Features

l  AC input range selectable by switch

l  3 years warranty

l  No load power consumption<O.5W

l  Miniature size and 1U low profile

l  High operating temperature up to 70C

l  Cooling by free air convection

l  Operating altitude up to 5000 meters

l  Withstand 5G vibration test

l  LED indicator for power on

l  Over voltage category III

l  100% full load burn-in test

l  High efficiency, long life andhigh reliability

l  Withstand 300VAC surge input for 5 second

l  Protections: Short circuit/Overload/Over voltage/Over temperature

l  Compliance to IEC/BS EN/EN 60335-1(PD3) and IEC/BS EN/EN61 558-1, 2-16 for household appliances

Meanwell LRS-150-24 Features

Meanwell LRS-150-24 Applications

l  Industrial automation machinery

l  Industrial control system

l  Mechanical and electrical equipment

l  Electronic instruments, equipment orapparatus

l  Household appliances

Meanwell LRS-150-24 Applications

Meanwell LRS-150-24 Mechanical Diagram

Meanwell LRS-150-24 Mechanical DiagramMeanwell LRS-150-24 Mechanical Diagram
