LPS-75-12
14.48

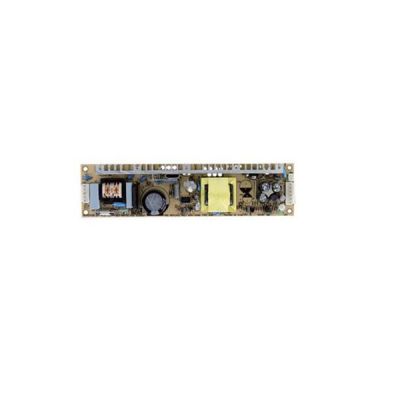

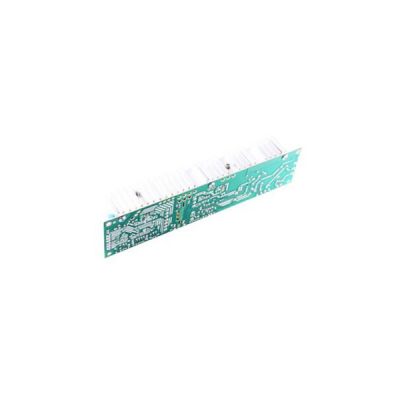

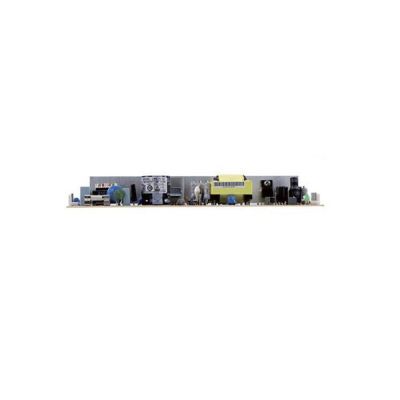

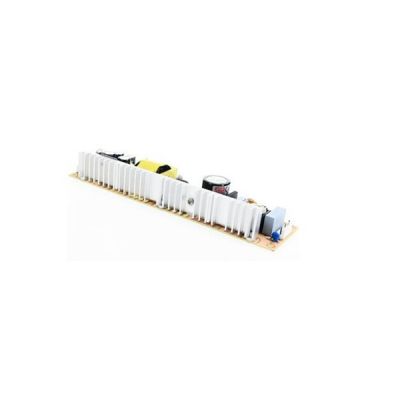

LPS-75-12

$14.48

Meanwell 75W Single Output Switching Power Supply with 12V6.2A0-6.8A74.4W81.6W100mVp-p11-13.5V±2.0%±1%±2%

- +
Availability:In stock
SKU Meanwell LPS-75-12
Brand Meanwell
Details

Meanwell LPS-75-12 is 75W Single Output Switching Power Supply with 12V6.2A0-6.8A74.4W81.6W100mVp-p11-13.5V. The product is designed with compact size and low profile, and accepts 90~264VAC input. It features with Built-in remote ON-OFF control and Universal AC input/Full range. Apart from them, the working efficiency reaches up to 83% and  operates from -20 ℃through 70 ℃ under free air convection. Since it delivers an extremely low no load power consumption, this allows the end system to easily meet the worldwide energy requirements. Additionally, LPS-75-12 provides the various protection functions such as Short circuit, Overload and Over voltage, and 100% full load burn-in test. Besides them, the product complies with the international safety regulations such as UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004. In light of its High efficiency, low cost and  longevity, Meanwell LPS-75-12 serves as a high price-to-performance power supply solution for various industrial applications.

Meanwell LPS-75-12 Specifications

Meanwell LPS-75-12 Specifications

Model LPS-75-12
OUTPUT DC VOLTAGE 12V
RATED CURRENT 6.2A
CURRENT RANGE 0-6.8A
RATED POWER 74.4W
PEAK LOAD(10sec.) 81.6W
RIPPLE & NOISE (max.) 100mVp-p
VOLTAGE ADJ. RANGE 11-13.5V
VOLTAGE TOL ERANCE  ±2.0%
LINE REGULATION ±1%
LOAD REGUL .ATION ±2%
SETUP, RISE TIME 100ms, 35ms/230VAC 100ms, 35ms/115VAC at full load
HOLD UP TIME (Typ.) 60ms/230VAC 12ms/115VAC at full load
INPUT VOLTAGE RANGE 90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 80.00%
AC CURRENT (Typ.) 1.9A/115VAC 1.1A/230VAC
INRUSH CURRENT(Typ.) COLD START 18A/115VAC 36A/230VAC
LEAKAGE CURRENT <1mA / 240VAC
PROTECTION OVERL OAD 115 ~ 150% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 13.8-16.2V
Protection type : Hiccup mode, recovers automatically after fault condition is removed
FUNCTION REMOTE ON/OFF RC+/RC- : 0 ~ 0.8V power on ; 4 ~ 10V power off
ENVIRONMENT WORKING TEMP. -20 ~ +70(Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -20 ~ +85, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.04%/(0 ~ 50)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC SAFETY STANDARDS  UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC/ 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMS IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy industry level,
criteria A, EAC TP TC 020
OTHERS MTBF 355Khrs min. MIL-HDBK-217F (25)
DIMENSION 222*55*30mm (L*W*H)
PACKING 0.3Kg; 48pcs/15.6Kg/1.23CUFT

Meanwell LPS-75-12 Features

l  2 years warranty

l  Cooling by free air convection

l  PWM control and regulated

l  Small and compact size

l  LED indicator for power on

l  100% full load burn-in test

l  Universal AC input/Full range

l  Built-in remote ON-OFF control

l  Protections: Short circuit/ Overload/Over voltage

Meanwell LPS-75-12 Features

Meanwell LPS-75-12 Mechanical Diagram

Meanwell LPS-75-12 Mechanical Diagram
