LPF-90
22.14

LPF-90

As low as $22.14

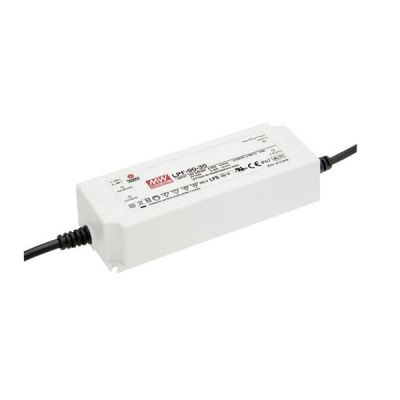

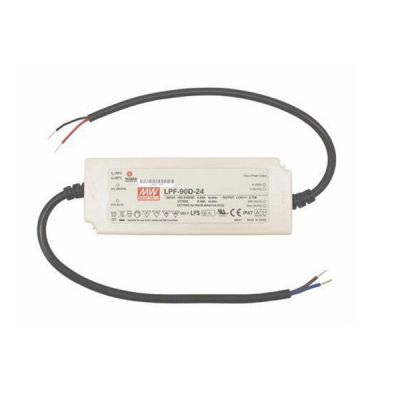

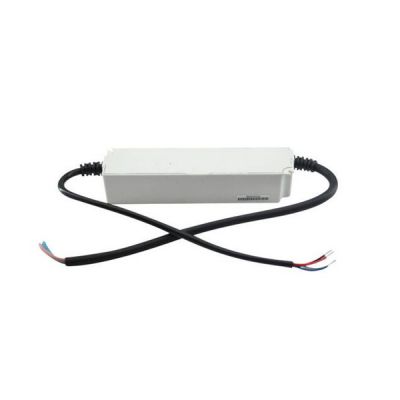

Meanwell 90W Constant Voltage + Constant Current LED Driver

- +
Availability:In stock
SKU Meanwell LPF-90
Brand Meanwell
Details

Meanwell LPF-90 Series is 90W AC/DC LED driver featuring the dual modes constant voltage and constant current output. At the same time, the entire series operates from 90~305VAC and offers models with different rated voltage ranging between 15V and 54V. Since the high efficiency reaches up to 91% based on the fanless design, LPF-90 is able to work for -40°C ~ +70°C case temperature under free air convection. Apart from them, it is rated with IP67 ingress protection level. Considering its longevity, high reliability and excellent quality, Meanwell LPF-90 Series is suitable to work for a variety of applications at dry, damp or wet locations.Meanwell LPF-90 price and specs 90W Constant Voltage and Constant Current AC/DC LED driver with PFC IP67 Level YCICT

Meanwell LPF-90 Series Encoding

LPF Series Name
90 Rated Wattage
24 Rated output voltage (15V/20/24V/30V/36V/42V/48V/54V)

Meanwell LPF-90 Series Model Specifications

Model LPF-90-15 LPF-90-20 LPF-90-24 LPF-90-30 LPF-90-36 LPF-90-42 LPF-90-48 LPF-90-54
OUTPUT DC VOLTAGE 15V 20V 24V 30V 36V 42V 48V 54V
CONSTANT CURRENT REGION 9-15V 12-20V 14.4-24V 18-30V 21.6-36V 25.2-42V 28.8-48V 32.4-54V
RATED CURRENT 5A 4.5A 3.75A 3A 2.5A 2.15A 1.88A 1.67A
RATED POWER 75W 90W 90W 90W 90W 90.3W 90.24W 90.18W
RIPPLE & NOISE (max.) 150mVp-p 150mVp-p 150mVp-p 200mVp-p 200mVp-p 200mVp-p 200mVp-p 200mVp-p
VOLTAGE TOL ERANCE ±4.0% ±4.0% ±4.0% ±4.0% ±4.0% ±4.0% ±4.0% ±4.0%
LINE REGULATION ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
LOAD REGULATION ±1.5% ±1.0% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
SETUP, RISE TIME 1200ms, 200ms / 115VAC 500ms, 200ms / 230VAC
HOLD UP TIME (Typ.) 16ms/230VAC 16ms/115VAC
Input VOLTAGE RANGE 90~305VAC 127~431VDC  (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR PF>=0.97/115VAC, PF>=0.96/230VAC, PF>=0.92/277VAC at full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION THD< 20%( at load>=60%/115VC,230VAC; at load>=75%/277VAC) (Please refer to“TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.) 89.00% 90.00% 90.50% 91.00% 91.00% 91.00% 91.00% 91.00%
AC CURRENT 0.95A / 115VAC 0.5A / 230VAC 0.4A / 277VAC
INRUSH CURRENT(Typ.) COLD START 70A(twidth=435μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER 4 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT <0.75mA / 240VAC
PROTECTION OVER CURRENT 95 ~ 108%
Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE 18-21V 23-27V 28-34V 34-38V 41-46V 47-53V 54-60V 59-65V
Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE Shut down o/p voltage, re-power on to recover

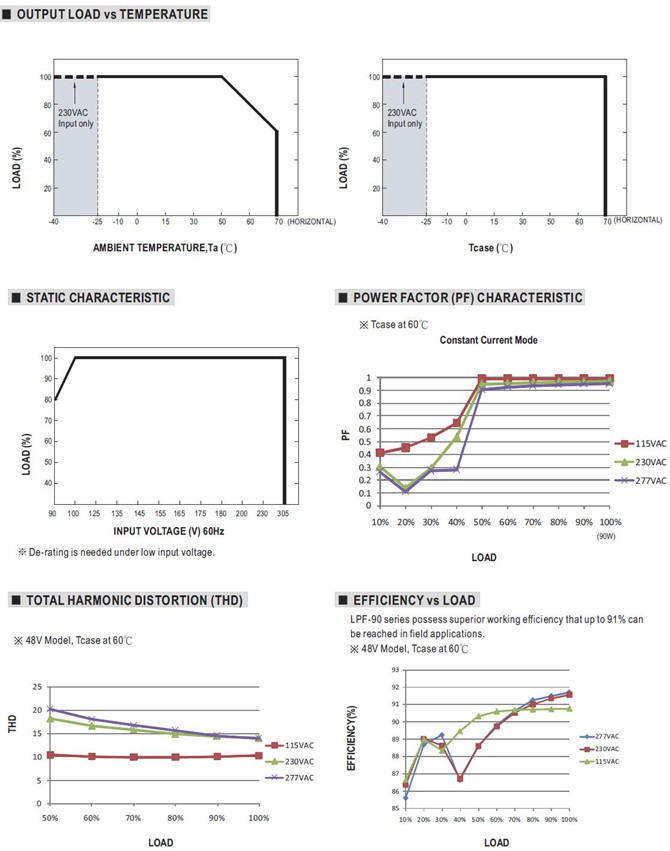

ENVIRONMENT WORKING TEMP. Tcase=-40 ~ +70 (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP. Tcase=+70
WORKING HUMIDITY 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +80, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMC SAFETY STANDARDS UL8750(type”HL”), CSA C22.2 No.250.13-12, ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384,
J61347-1, J61347-2-13, EAC TP TC 004, GB19510.1,GB19510.14,IP67 approved ; Design refer to UL60950-1
WITHSTAND VOLTAGE I/P-O/P:3.75KVAC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (at load>=60%) ; BS EN/EN61000-3-3, GB17743 and GB17625.1,EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Line 2KV),EAC TP TC 020
Others MTBF 3292.9K hrs min. Telcordia SR-332 (Bellcore) ; 301.7Khrs min. MIL-HDBK-217F (25)
DIMENSION 161*61*36mm (L*W*H)
PACKING 0.7Kg;20pcs/15Kg/0.73CUFT

Meanwell LPF-90 Series Features

l  Constant Voltage + Constant Current mode output

l  Plastic housing with ClassⅡdesign

l  Built-in active PFC function

l  Class 2 power unit

l  Fully encapsulated with IP67 level

l  Typical lifetime> 50000 hours

l  5 years warranty

Meanwell LPF-90 price and specs 90W Constant Voltage and Constant Current AC/DC LED driver PFC IP67 Level YCICT

Meanwell LPF-90 Series Applications

l  LED panel lighting

l  LED downlight

l  LED decorative lighting

l  LED tunnel lighting

l  Moving sign

l  Type "HL" for use in Class l, Division 2 hazardous (Classified) location

Meanwell LPF-90 Series Mechanical Diagram

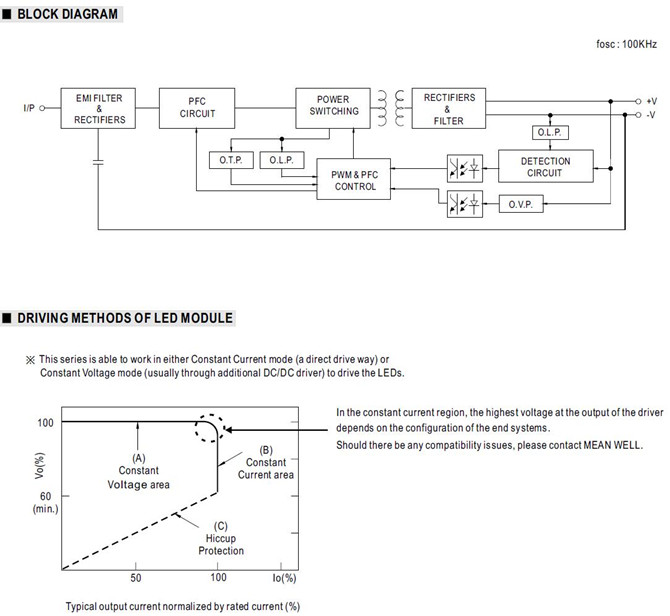

Meanwell LPF-90 price and specs 90W Constant Voltage and Constant Current AC/DC LED driver with PFC IP67 Level YCICT

Meanwell LPF-90 price and datasheet 90W Constant Voltage and Constant Current AC/DC LED driver with PFC IP67 Level YCICT
