RKP-6K1U
396.36

RKP-6K1U

As low as $396.36

Meanwell 2000~6000W 1U Distributed Power System

- +
Availability:In stock
SKU Meanwell RKP-6K1U
Brand Meanwell
Details

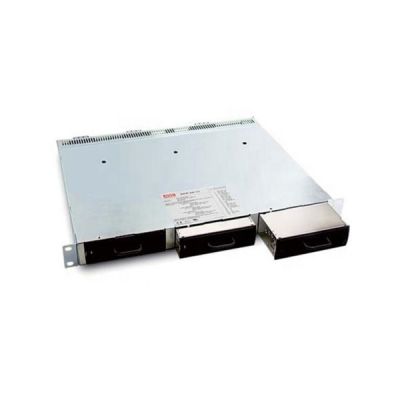

Meanwell RKP-6K1U Rack System is a power distribution solution utilizing the rack configuration with 1U low profile. Starting with a single unit of 2000W, RCP-2000 is the front end rectifier (or power supply) with the active current sharing function. RKP-1U can provide up to 6000W output power using a 19-inch mounting bracket. The design flexibility for system applications is ideally fulfilled by various built-in features, such as output programming, communication protocol PMBus, remote ON-OFF, auxiliary power, external control/monitor via the control model RCP-CMU-1, etc.

Meanwell RKP-6K1U Meanwell RKP-6K1U PRICE AND SPECS power distribution solution YCICT

Meanwell RKP-6K1U Series Encoding

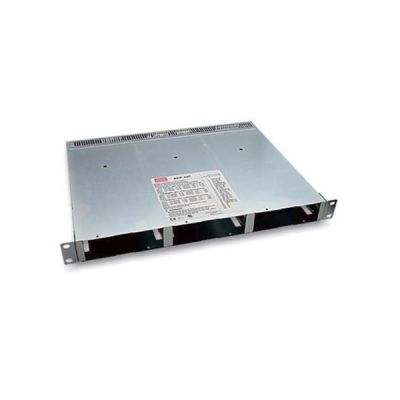

Rack Shelf
RKP Series Name
1U Profile of the system
I I : AC Inlet ( IEC320-C20)
T: Terminal block
CMU1 CMU1: with RKP-CMU1
-: Without RKP-CMU1
Whole System
RKP Series Name
6K1U 1U: Profile of the system
6K: Maximum wattage with fully populated shelf
I I : AC Inlet ( IEC320-C20)
T: Terminal block
CMU1 CMU1: with RPK-CMU1
-: Without RKP-CMU1
12 Output voltage

Meanwell RKP-6K1U Series Model Specifications

Model RKP-6K1U-12 RKP-6K1U-24 RKP-6K1U-48
Output Rectifier RCP-2000-12 RCP-2000-24 RCP-2000-48
Rack Shelf RKP-1UI or RKP-1UT
Output Voltage 12V 24V 48V
Max Output Current 300A 240A 126A
Max Output Power 3600W 5760W 6048W
Input VOLTAGE RANGE 90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz
AC CURRENT (Typ.)PER MODULE 13A/115VAC 7A/230VAC  16A/115VAC 11A/230VAC  16A/115VAC 11A/230VAC
LEAKAGE CURR ENT <3.5mA / 230VAC

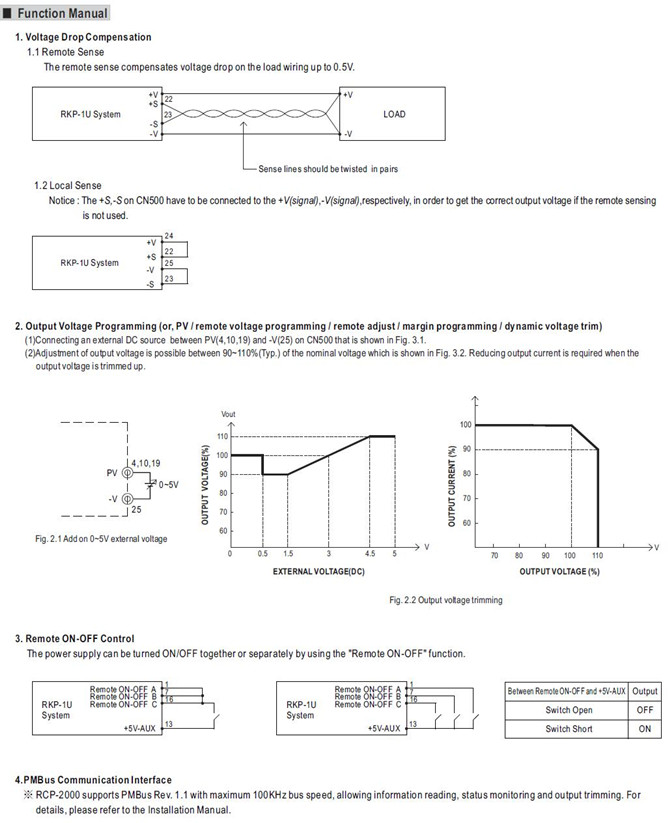

FUNCTION OUTPUT VOLTAGE PROGRAMMABLE(PV) Adjustment of output voltage is allowable to 90 ~ 110% of nominal output voltage
REMOTE ON-OFF CONTROL By electrical signal or dry contact ON:short OFF:open
REMOTE SENSE Compensate voltage drop on the load wiring up to 0.5V
AUXILIARY POWER 5V @ 0.3A, 12V @ 0.8A
DC OK SIGNAL The isolated TTL signal out, Please refer to the Installation Manual
AC OK SIGNAL The isolated TTL signal out, Please refer to the Installation Manual
OVER TEMP WARNING Logic " High" for over temperature warning, Please refer to the Installation Manual, isolated signal
FAN FAIL SIGNAL The isolated TTL signal out, Please refer to the Installation Manual
ENVIRONMENT WORKING TEMP -40 ~ +70(Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.03%/(0 ~ 50)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY &EMC SAFETY STANDARDS UL62368-1, CSA C22.2 No. 62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.7KVDC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Parameter Standard Test Level
Conducted BS EN/EN55032 (CISPR32) Class A
Radiated BS EN/EN55032 (CISPR32) Class A
Harmonic Current BS EN/EN61000-3-2 ----
Voltage Flicker BS EN/EN61000-3-3 ----
EMC IMMUNITY BS EN/EN55024, BS EN/EN61000-6-2
Parameter Standard Test Level
ESD BS EN/EN61000-4-2 Level 3, 8KV air ; Level 2, 4KV contact
Radiated BS EN/EN61000-4-3 Level 3
EFT / Burst BS EN/EN61000-4-4 Level 3
Surge BS EN/EN61000-4-5 Level 4, 4KV/Line-Earth ; Level 3, 2KV/Line-Line
Conducted BS EN/EN61000-4-6 Level 3
Magnetic Field BS EN/EN61000-4-8 Level 4
Voltage Dips and Interruptions BS EN/EN61000-4-11 >95% dip 0.5 periods, 30% dip 25 periods,
>95% interruptions 250 periods
 OTHERS DIMENSION Rack 350.8*482.6*44(L*W*H, with mounting bracket) ; 350.8*440*44(L*W*H, without mounting bracket)
PACKING 14.1Kg; 1pcs/14.1Kg/2.67CUFT

Meanwell RKP-6K1U Series Features

l  Universal AC input/ Full range

l  1U profile 19" rack shelf, fitting three 2000W modules up to 6000W with active current sharing

l  Output voltage programmable

l  Support hot swap (hot plug)

l  Built-in PMBus protocol

l  5 years warranty

Meanwell RKP-6K1U Series Features Meanwell RKP-6K1U Series price and specs ycict

Meanwell RKP-6K1U Series Applications

l  Industrial automation

l  Distributed power architecture system

l  Wireless/telecommunication solution

l  Redundant power system

l  Electric vehicle charger system

l  Constant current source system

Meanwell RKP-6K1U Series Applications Meanwell RKP-6K1U Series price and specs RKP-1U new and original ycict

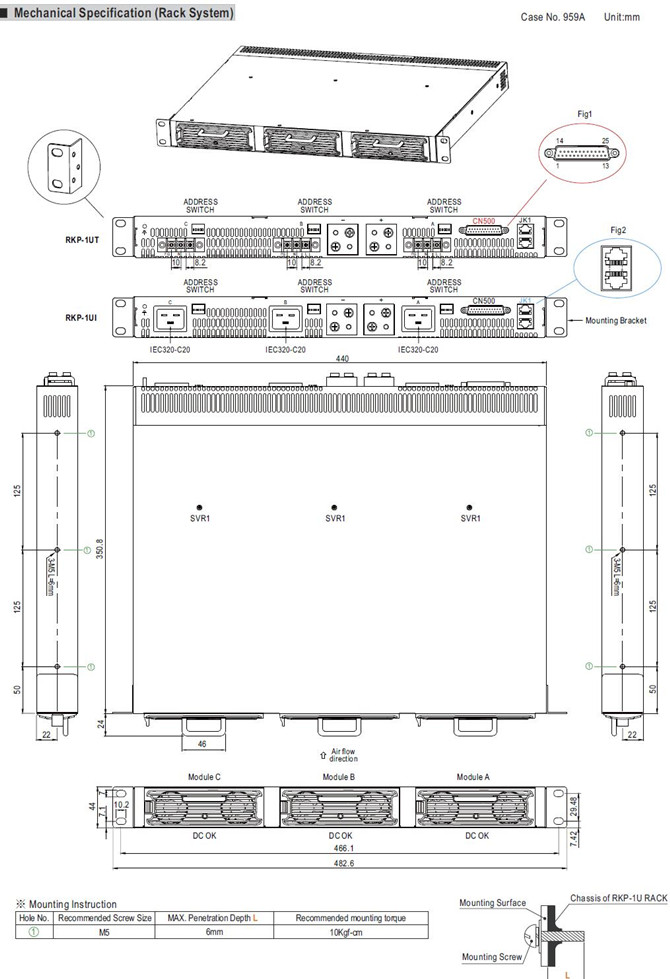

Meanwell RKP-6K1U Series Mechanical Diagram

Meanwell RKP-6K1U Series Mechanical Diagram meanwell RKP PRICE AND SPECS MEANWELL RACK SYSTEM YCICT

Meanwell RKP-6K1U Series Mechanical Diagram MEANWELL RKP PRICE AND SPECS NEW YCICT
