Meanwell 25W Constant Current Mode LED Driver with 24V1.05A25.2W13.2-24V±5.0%

- +
Availability:In stock
SKU Meanwell LPF-25D-24
Brand Meanwell
Details

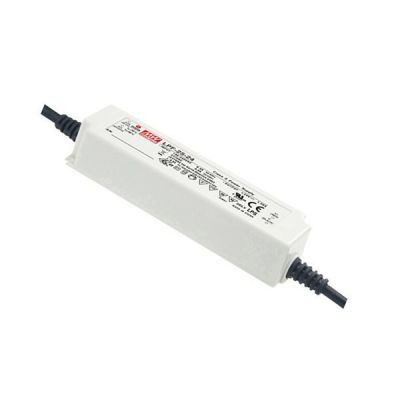

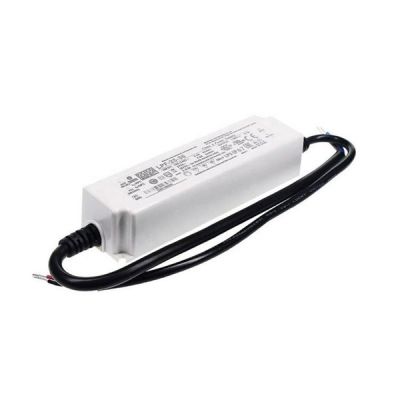

Meanwell LPF-25D-24 is 25W AC/DC LED driver with 24V1.05A25.2W13.2-24V±5.0%. The unit offers the constant current output working from 90 ~ 305VAC. At the same time, it is equipped with rated voltage 24V. As the efficiency reaches high up to 86% under no fan design with IP67 ingress protection level, LPF-25D-24 could operate for -35°C ~ +70°C case temperature through free air convection. Furthermore, the model is supplied with the 3 in 1 dimming function, so as to provide the design flexibility for LED lighting system. In view of its long lifetime, high reliability and excellent quality, Meanwell LPF-25D-24 is suitable to work for a variety of applications at dry or damp and wet locations.

Meanwell LPF-25D-24 Price and specs Constant Current Mode LED driver LPF-25D-12/15/20/24/30/36/42/48/54 25W PFC YCICT

Meanwell LPF-25D-24 Encoding

LPF Series Name
25D Rated Wattage
24 Rated output voltage (12V/15V/20/24V/30V/36V/42V/48V/54V)

Meanwell LPF-25D-24 Specifications

Model LPF-25D-24
OUTPUT DC VOLTAGE 24V
RATED CURRENT 1.05A
RATED POWER 25.2W
CONSTANT CURRENT REGION 13.2-24V
CURRENT RIPPLE 5.0% max. at rated current
CURRENT TOLERANCE ±5.0%
SETUP, RISE TIME 1500ms, 80ms / 115VAC 500ms, 80ms / 230VAC
HOLD UP TIME (Typ.) 16ms/230VAC 16ms/115VAC
Input VOLTAGE RANGE 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR PF>=0.97/115VAC, PF>=0.95/230VAC, PF>=0.92/277VAC at full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION THD< 20% (at load>=60%/115VC,230VAC; at load>=75%/277VAC) (Please refer to“TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.) 85.50%
AC CURRENT 0.4A / 115VAC 0.25A / 230VAC 0.2A/277VAC
INRUSH CURRENT(Typ.) COLD START 50A(twidth=200μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER 12 units (circuit breaker of type B) / 21 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT <0.75mA / 240VAC
PROTECTION OVER CURRENT 95 ~ 108%
Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 28-35V
Shut down and latch off o/p voltage, re-power on to recover
OVER TEMPERATURE Shut down o/p voltage, recovers automatically after temperature goes down
ENVIRONMENT WORKING TEMP. Tcase=-35 ~ +70 (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.  Tcase=+70
WORKING HUMIDITY 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +80, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMC SAFETY STANDARDS UL8750, CSA C22.2 No. 250.0-08,ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384,
EAC TP TC 004,GB19510.1,GB19510.14,IP67 approved ;Design refer to UL60950-1
WITHSTAND VOLTAGE I/P-O/P:3.75KVAC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (at load>=55%) ; BS EN/EN61000-3-3,GB17743 and GB17625.1,EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Line 2KV),EAC TP TC 020
Others MTBF 3574.2K hrs min. Telcordia SR-332 (Bellcore) ; 391.6Khrs min. MIL-HDBK-217F (25)
DIMENSION 148*40*32mm (L*W*H)
PACKING 0.36Kg; 40pcs/ 15.4Kg/1.02CUFT

Meanwell LPF-25D-24 Features

l  5 years warranty

l  Class 2 power unit

l  Function: 3 in 1 dimming

l  Typical lifetime> 50000 hours

l  Constant Current mode output

l  Built-in active PFC function

l  Plastic housing with ClassⅡdesign

l  IP67 rating for indoor or outdoor installations

Meanwell LPF-25D-24 Price and specs 25W Constant Current Mode LED driver LPF-25D-12/15/20/24/30/36/42/48/54 YCICT

Meanwell LPF-25D-24 Applications

l  LED panel lighting

l  LED downlight

l  LED decorative lighting

l  LED tunnel lighting

l  Moving sign

Meanwell LPF-25D-24 Mechanical Diagram

Meanwell LPF-25D-24 Price and datasheet Constant Current Mode LED driver LPF-25D-12/15/20/24/30/36/42/48/54 PFC YCICT

Meanwell LPF-25D-24 Price and specs Constant Current Mode LED driver LPF-25D-12/15/20/24/30/36/42/48/54 25W YCICT
