LPC-150-700
25.03

LPC-150-700

$25.03

Meanwell 150W Single Output LED Power Supply with 700mA±5.0%107-215V150.5W±5.0%1Vp-p±1.0%±2.0%47~63Hz90.00%

- +
Availability:In stock
SKU Meanwell LPC-150-700
Brand Meanwell
Details

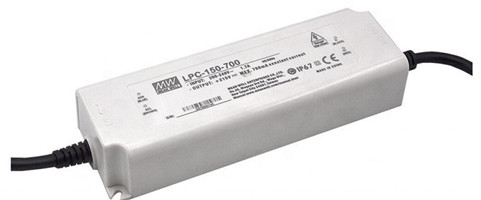

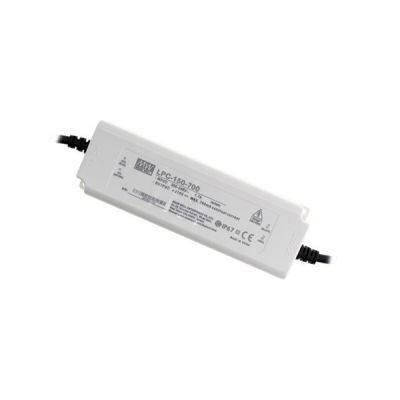

Meanwell LPC-150-700 is 150W Single Output LED Power Supply with 700mA±5.0%107-215V150.5W±5.0%1Vp-p±1.0%±2.0%47~63Hz90.00%. It is designed constant current and 180~ 305VAC input only. At the same time, the item  offers the model with output current 700mA, which LED lighting applications employ most frequently. LPC-150-700 is based on class Il (without FG pin) design, housed with the 94V-0 flame retardant plastic case. Since the efficiency reaches up to 90%,  it could operate at the ambient temperature between -25℃~+50℃ under free air convection. What’s more, the unit is equipped with various protections such as Short circuit, Over voltage and Over temperature. In light of its high efficiency, excellent quality, and low price, Meanwell LPC-150-700 is ideally suitable for LED related fixture or appliance like LED Decoration or Advertisement devicesMeanwell LPC-150-700 price and datasheet 150w Single Output LED Power Supply constant current low cost IP67 classⅡYCICT

Meanwell LPC-150-700 Specifications

Model LPC-150-700
  RATED CURRENT 700mA
CURRENT ACCURACY ±5.0%
CONSTANT CURRENT REGION 107-215V
RATED POWER 150.5W
RIPPLE CURRENT ±5.0%
RIPPLE & NOISE 1Vp-p
LINE REGULATION ±1.0%
VOLTAGE TOL ERANCE ±2.0%
SETUP, RISE TIME 1000ms, 80ms / 230VAC at full load
HOLD UP TIME (Typ.) 16ms/230VAC at full load
Input VOLTAGE RANGE 180 ~ 305VAC 254VDC ~ 431VDC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 90.00%
AC CURRENT 1.7 A / 230VAC 1.5A / 277VAC
INRUSH CURRENT(Typ.) COLD START 40A(twidth=750μs measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER 3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT <0.25mA / 277VAC
PROTECTION SHORT CIRCUIT Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 235-265V
Protection type : Shut down and latch off o/p voltage re-power on to recovery
OVER TEMPERATURE Shut down o/p voltage, recovers automatically after temperature goes down
ENVIRONMENT WORKING TEMP. -25 ~ +50 (Refer to "Derating Curve")
WORKING HUMIDITY 10 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +70, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC SAFETY STANDARDS BIS IS15885(for 700mA,1050mA,1400mA,2800mA only), EAC TP TC 004, IP67;IEC 62368-1 , BS EN/EN62368-1 approved
WITHSTAND VOLTAGE I/P-O/P:3KVAC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55032(CISPR32) Class B; BS EN/EN61000-3-2 Class A(<=80% load); BS EN/EN61000-3-3, EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level , EAC TP TC 020
Others MTBF 3528.4K hrs min. Telcordia SR-332 (Bellcore) ; 479.1K hrs min. MIL-HDBK-217F (25)
DIMENSION 191*63*37.5mm (L*W*H)
PACKING 0.74Kg; 20pcs/15.8Kg/0.95CUFT

Meanwell LPC-150-700 Features

l  100% full load burn-in test

l  Low cost, high reliability

l  2 years warranty

l  Fully isolated plastic case

l  ClassⅡpower unit, no FG

l  Constant current design

l  180~ 305VAC input only

l  High efficiency up to 90%

l  Cooling by free air convection

l  Fully encapsulated with IP67 level

l  Protections: Short circuit/Over voltage/Over temperature

l  Suitable for LED related fixture or appliance such as LED Decoration or Advertisement devices

Meanwell LPC-150-700 price and specs 150w Single Output LED Power Supply constant current low cost IP67 classⅡYCICT

Meanwell LPC-150-700 Mechanical Diagram

Meanwell LPC-150-700 price and specs 150w Single Output LED Power Supply constant current low cost IP67 classⅡUnit YCICT
