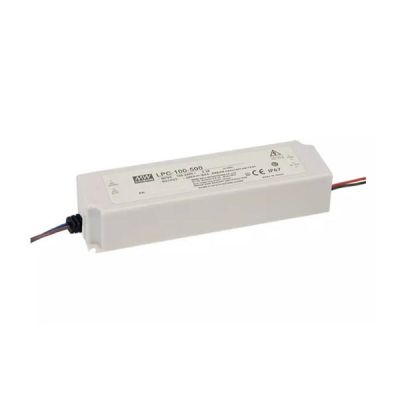

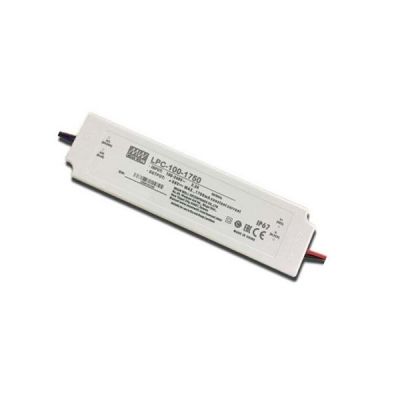

LPC-100-500
13.37
Details
Meanwell LPC-100-500 is 100W single output AC/DC LED switching power supply with 500mA±5.0%100-200V100W±5.0%1.5Vp-p±1.0%±1.5%47~63Hz90.00%. The item highlights constant current design and universal AC input/full range. In addition, it provides the model with output current 500mA, which LED lighting applications employ most frequently. What’s more, LPC-100-500 operates for the range 90~264VAC, so it is able to perfectly work for most of the countries in the world. The unit is also based on class Il (without FG pin) design, housed with the 94V-0 flame retardant plastic case. As the efficiency reaches up to 90%, it can work at the ambient temperature between -25℃~+50℃ under air convection. Thanks to its high efficiency, excellent quality, and low price, Meanwell LPC-100-500 is ideally suitable for LED related fixture or appliance such as LED Decoration or Advertisement devices
Meanwell LPC-100-500 Encoding
| LPC | Series Name |
| 100 | Output wattage |
| 500 | Output Current |
Meanwell LPC-100-500 Specifications
| Model | LPC-100-500 | |
| RATED CURRENT | 500mA | |
| CURRENT ACCURACY | ±5.0% | |
| CONSTANT CURRENT REGION | 100-200V | |
| RATED POWER | 100W | |
| RIPPLE CURRENT | ±5.0% | |
| RIPPLE & NOISE | 1.5Vp-p | |
| LINE REGULATION | ±1.0% | |
| VOLTAGE TOL ERANCE | ±1.5% | |
| SETUP, RISE TIME | 1000ms, 80ms / 230VAC 2000ms,80ms/115VAC at full load | |
| HOLD UP TIME (Typ.) | 16ms/230VAC 10ms/115vac at full load | |
| Input | VOLTAGE RANGE | 90 ~ 264VAC 127VDC ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (Typ.) | 90.00% | |
| AC CURRENT | 2.2 A / 115VAC 1.2A / 230VAC | |
| INRUSH CURRENT(Typ.) | COLD START 75A(twidth=980μs measured at 50% Ipeak) at 230VAC | |
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 1 units (circuit breaker of type B) / 2 units (circuit breaker of type C) at 230VAC | |
| LEAKAGE CURRENT | <0.25mA / 240VAC | |
| PROTECTION | SHORT CIRCUIT | Hiccup mode, recovers automatically after fault condition is removed |
| OVER VOLTAGE | 220-240V | |
| Protection type : Shut down and latch off o/p voltage re-power on to recovery | ||
| ENVIRONMENT | WORKING TEMP. | -25 ~ +50℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 10 ~ 95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| SAFETY & EMC | SAFETY STANDARDS | IEC 62368-1;EAC TP TC 004, IP67 , BS EN/EN62368-1 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC | |
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55032(CISPR32) Class B; BS EN/EN61000-3-2 Class A(<=80% load); BS EN/EN61000-3-3, EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level , EAC TP TC 020 | |
| Others | MTBF | 4121.8K hrs min. Telcordia SR-332 (Bellcore) ; 511.2K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 190*52*37mm (L*W*H) | |
| PACKING | 0.61Kg;20pcs/13.2Kg/0.55CUFT | |
Meanwell LPC-100-500 Features
l Low cost, high reliability
l 2 years warranty
l Constant current design
l Universal AC input/full range
l High efficiency up to 90%
l Cooling by free air convection
l Fully encapsulated with IP67 level
l Fully isolated plastic case
l ClassⅡpower unit, no FG
l 100% full load burn-in test
l Withstand 300VAC surge input for 5 seconds
l Protections: Short circuit/Over voltage
l Suitable for LED related fixture or appliance such as LED Decoration or Advertisement devices
Meanwell LPC-100-500 Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
