Meanwell 60W Multiple-Stage Constant Current Mode LED Driver

- +
Availability:In stock
SKU Meanwell LCM-60DA
Brand Meanwell
Details

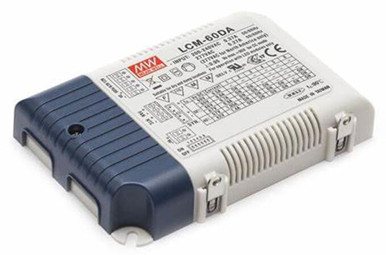

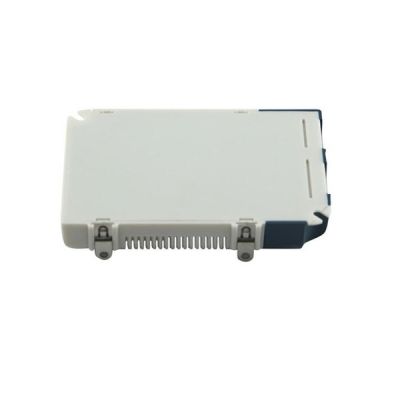

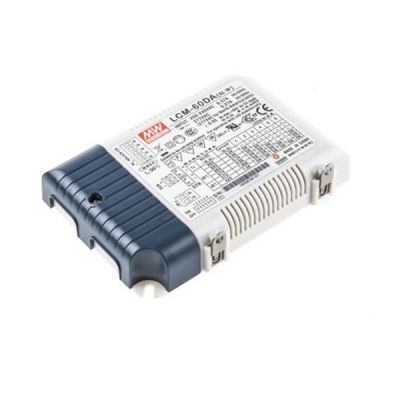

Meanwell LCM-60DA Series is 60W AC/DC constant current mode output LED driver highlighting the adjustable levels by dip switch and the DALI interface with the compliance to lEC62386. At the same time, the product operates from 180~295VAC and offers different current levels ranging between 500mA and 1400mA. Since the high efficiency reaches up to 92%, with fanless design, LCM-60DA is able to work for -30℃~+90℃ case temperature under free air convection. In addition, it is equipped with push dimming and synchronization functions. Considering its longevity, high reliability, and excellent quality, Meanwell LCM-60DA Series provides optimal design flexibility for LED lighting system

Meanwell LCM-60DA Price and specs 60W Multiple-Stage Constant Current Mode LED Driver 180~295VAC 500mA and 1400mA YCICT

Meanwell LCM-60DA Series Encoding

LCM Series Name
60 Output Wattage
DA DA: Built-in DALI interface and push dimming
DA2: Built-in DALI-2 interface and push dimming
AUX Function mode option: Blank or AUX type
Blanks Standby power consumption <0.5W In stock
AUX Standby power consumption <1.2W and Auxiliary DC output ( 12/50mA) By Request

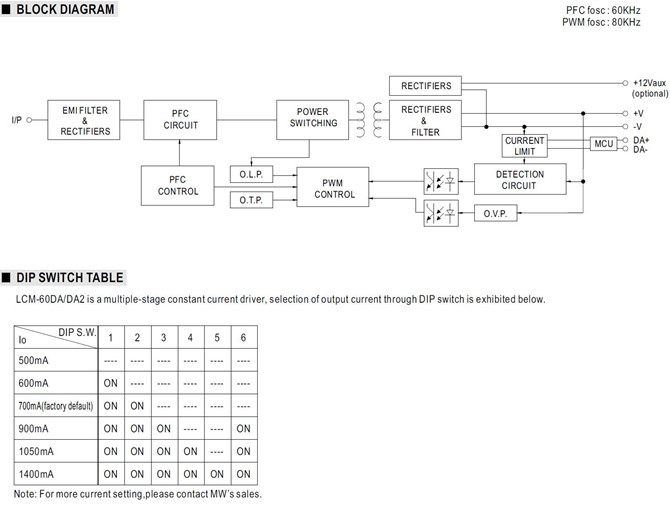

Meanwell LCM-60DA Series Model Specifications

Model LCM-60
OUTPUT CURRENT LEVEL Current level selectable via DIP switch, please refer to”DIP SWITCH TABLE” section
500mA 600mA 700mA (default) 900mA 1050mA 1400mA
RATED POWER 60.3W
DC VOLTAGE RANGE 2-90V 2-90V 2-86V 2-67V 2-57V 2-42V
OPEN CIRCUIT VOLTAGE (max.) 95V 73V
CURRENT RIPPLE  5.0% max. at rated current
CURRENT TOLERANCE ±5%
SETUP TIME 500ms / 230VAC
AUXILIARY DC OUTPUT Nominal 12V (deviation 11.4~12.6V) at 50mA for AUX-Type only
INPUT VOLTAGE RANGE 180 ~ 295VAC 254 ~ 392VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR PF>=0.975/230VAC, PF>=0.95/277VAC at full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION THD< 20%( at load>=75%) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.) 92.00%
AC CURRENT (Typ.) 0.32A/230VAC 0.27A/277VAC
INRUSH CURRENT (Typ.) COLD START 20A (twidth=270μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A
CIRCUIT BREAKER
25 units (circuit breaker of type B) / 32 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT <0.5mA / 240VAC
STANDBY POWER CONSUMPTION <0.5W for Blank-Type, <1.2W for AUX-Type
FUNCTION DIMMING Please refer to "DIMMING OPERATION" section
TEMP. COMPENSATION By external NTC, please refer to “TEMPERATURE COMPENSATION OPERATION”section
SYNCHRONIZATION Please refer to "SYNCHRONIZATION OPERATION” section
ENVIRONMENT WORKING TEMP Tcase=-30 ~ +90 (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP Tcase=+90
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +80, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY&EMC SAFETY STANDARDS UL8750(except for DA2-Type), CSA C22.2 No.250.13-12, ENEC BS EN/EN61347-1, BS EN/EN61347-2-13, BS EN/EN62384 independent,GB19510.14, GB19510.1,BIS IS15885(except for DA2-Type), EAC TP TC 004 approved; According to BS EN/EN61347-2-13 appendix J suitable for emergency installations(EL)(AC Input: 200-240Vac)(for DA2-Type only)
DALI STANDARDS IEC62386-101, 102, 207,251
WITHSTAND VOLTAGE I/P-O/P:3.75KVAC; I/P-DA:1.5KVAC; O/P-DA:1.5KVAC
ISOLATION RESISTANCE I/P-O/P:>100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C(at load>=40%) ; BS EN/EN61000-3-3; GB17625.1,GB17743, EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level(surge immunity Line-Line 2KV), EAC TP TC 020
Others MTBF 2270.7K hrs min. Telcordia SR-332 (Bellcore) ; 193.7K hrs min. MIL-HDBK-217F (25)
DIMENSION 123.5*81.5*23mm (L*W*H)
PACKING 0.24Kg ; 54pcs/15Kg/1.12CUFT

Meanwell LCM-60DA Series Features

l  Constant Current mode output with multiple levels selectable by dip switch

l  Emergency lighting application is available according to lEC61347-2-13

l  Built-in active PFC function and classⅡdesign

l  Standby power consumption <0.5W

l  Functions: DALI interface (logarithm or linear dimming curve selectable), push dimming synchronization up to 10 units

l  3 years warranty

Meanwell LCM-60DA Price and Specs 60W Multiple-Stage Constant Current Mode LED Driver180~295VAC 500mA and 1400mA YCICT

Meanwell LCM-60DA Series Applications

l  LED indoor lighting

l  LED office lighting

l  LED commercial lighting

l  LED panel lighting

l  Industrial lighting

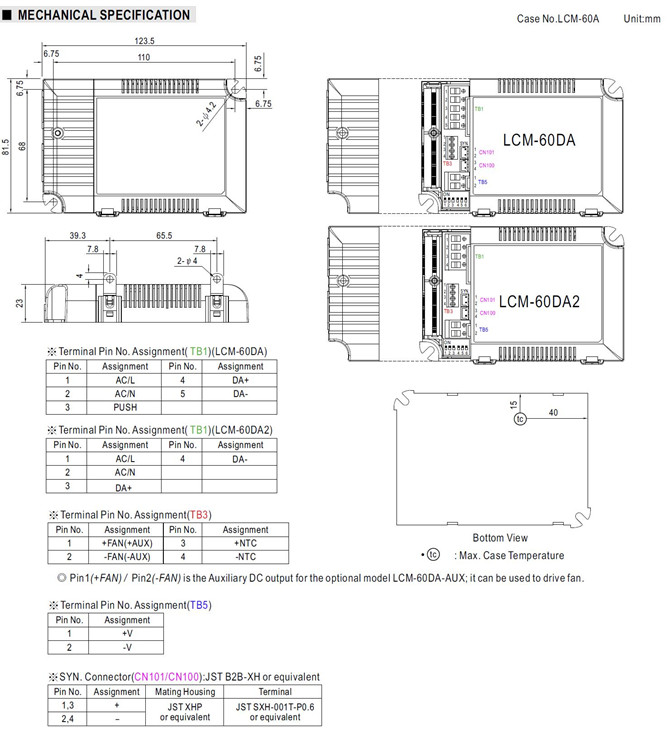

Meanwell LCM-60DA Series Mechanical Diagram

Meanwell LCM-60DA Price and Specs Multiple-Stage Constant Current Mode LED Driver 60W 180~295VAC 500mA and 1400mA YCICT

Meanwell LCM-60DA Price and datasheet Multiple-Stage Constant Current Mode LED Driver 180~295VAC 500mA and 1400mA YCICT
